25W Ethernet - port PoE module

Model: TSD-V215B

Input: PoE wide voltage DC 38-56V
Output: DC 24V MAX1A 25W
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100/1000 Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/terminal block
Size: 76*42*16 mm (L*W*H)
Weight: N.W=35 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-V215B is a PoE module specifically designed for audio equipment. The module complies with the IEEE802.3af/at PoE international standard protocol. The module supports a wide voltage input of 38 - 56V and has a maximum output power of 25W, and it can stably output 24V DC with a current of 1A.

After the audio equipment is equipped with the TSD-V215B module, power and audio signals can be transmitted simultaneously through just one Ethernet cable. This effectively simplifies the wiring complexity of traditional audio equipment, enabling the audio equipment to be installed in complex environments, over long distances, or in other special scenarios.

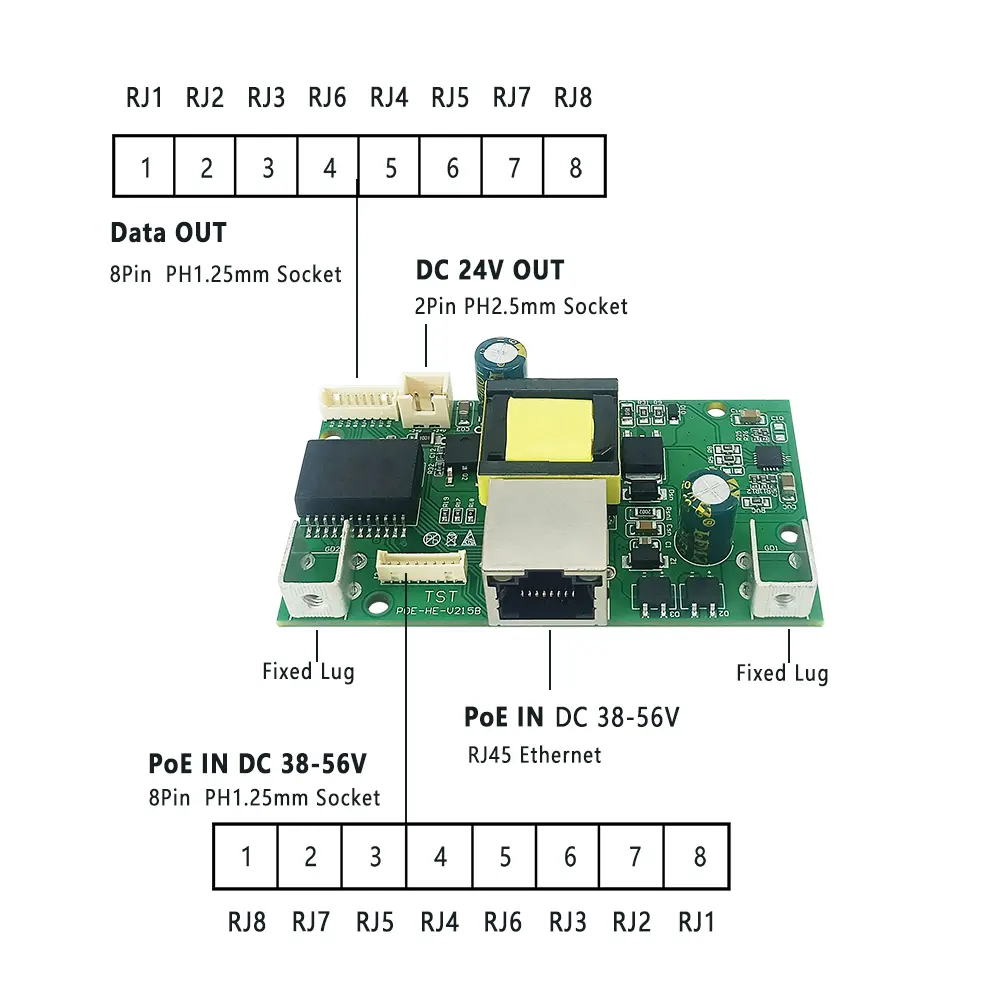

TSD-V215B Module Interfaces: RJ45 Ethernet Port: inputs DC 38-56V PoE signal; 8-Pin PH1.25mm Socket: inputs DC 38-56V PoE signal; 8-Pin PH1.25mm Socket: outputs data signal; 2-Pin PH2.5mm Socket: outputs DC 24V 1A DC signal.

The circuit design of the TSD-V215B uses an isolation transformer, making it a PD module with isolation function. The TSD-V215B complies with the IEEE802.3af/at PoE international standard protocol. Its EMC parameters meet the requirements of the IEC 61000 - 4 - 2/3/4/5/6 standards. It has obtained authoritative certifications such as CE, FCC, and RoHS.

The TSD-V215B module is equipped with a gigabit network high - frequency filter and supports adaptive transmission rates of 10/100/1000M. The circuit is designed with multiple protection capabilities, including protection against lightning strikes, short - circuits, overloads, and high temperatures. The TSD-V215B has a maximum output power of 25W and supports wide - voltage input ranging from DC 38 - 56V. The default output voltage is DC 24V, and other voltages can be customized upon request.

● Input: PoE wide voltage DC 38-56V

● Output: DC 24V MAX1A + data
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Isolation protection
● High temperature resistant flame retardant socket, reduce security risks

● Equipped with a gigabit high - frequency network filter

● Equipped with high - precision electronic components from well - known brands, ensuring stable performance

● Metal fixing lugs for easy installation and fixation

● High - power, high - conductivity, low - impedance transistors with stable performance and low heat generation

● High - temperature - resistant PCB made of environmentally friendly materials

Product parameter table
Product Name	25W Ethernet-port PoE Module
Product Model	TSD-V215B
PoE Standard	IEEE802.3af/at
Input Voltage	PoE: DC 38-56V
Output	voltage 24V DC MAX1A (Other Voltage can be customized)
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100/1000 Mbps Auto-Negotiation
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (8 - Pin PH1.25mm Socket) : PoE IN Input Port (RJ45 Ethernet-port) : PoE IN Output Port (8 - Pin PH1.25mm Socket) :Data OUT Output Port (2 - Pin PH2.5mm Socket) :DC 24V OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	80mm Connecting Line
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 35 g
Dimension	76 42 16 mm (LWH)
Package	Anti-static pearl cotton

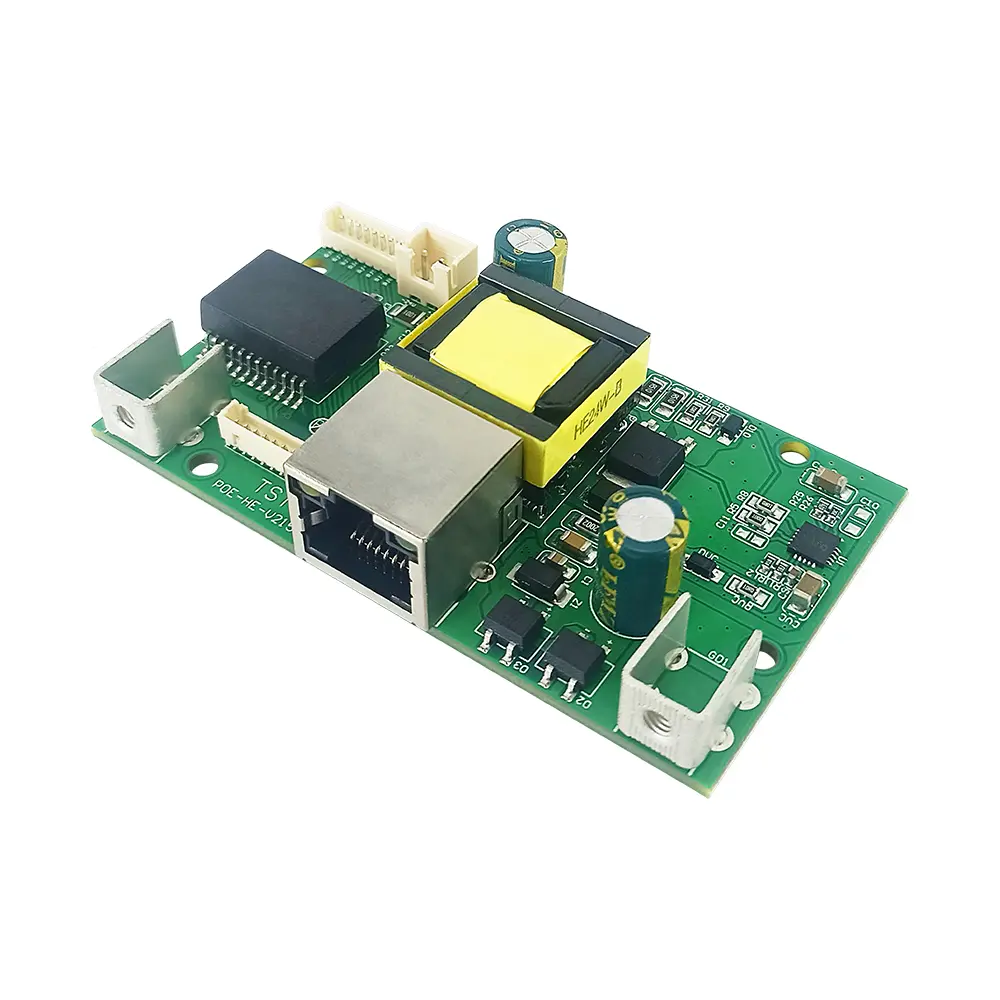

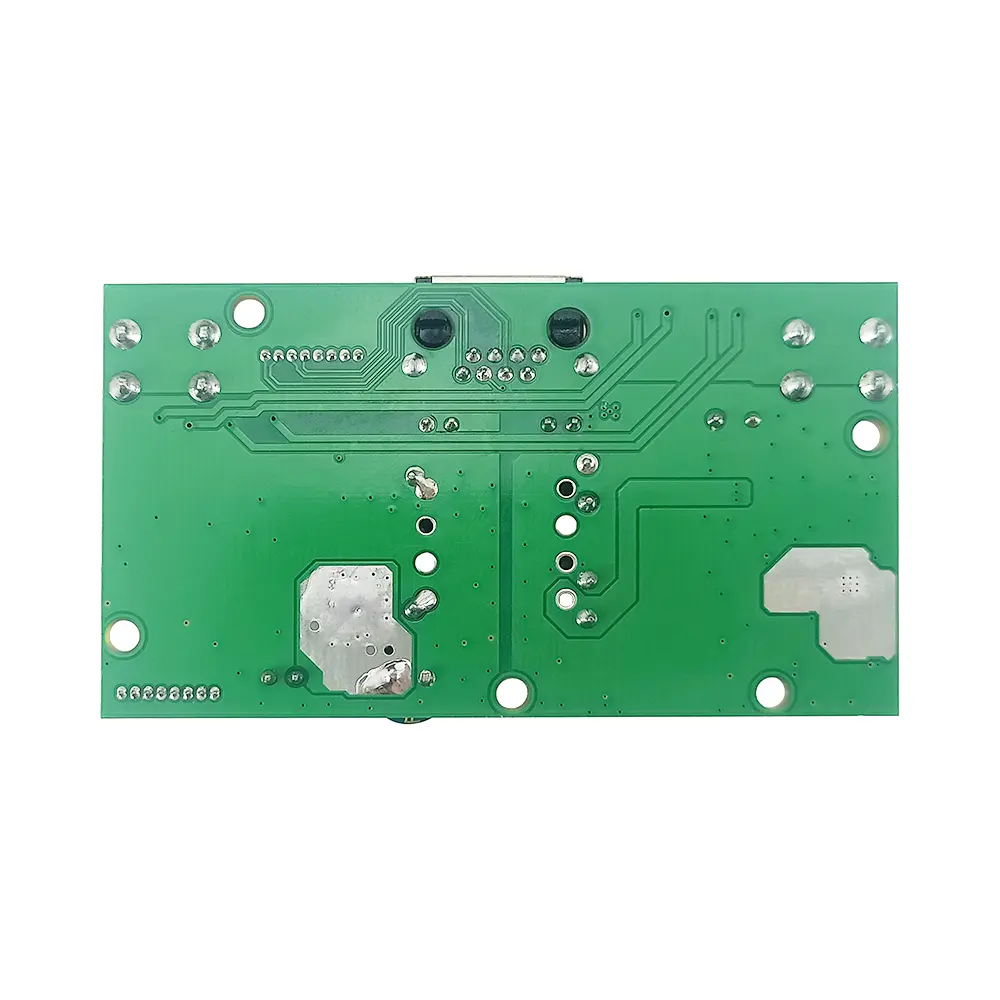

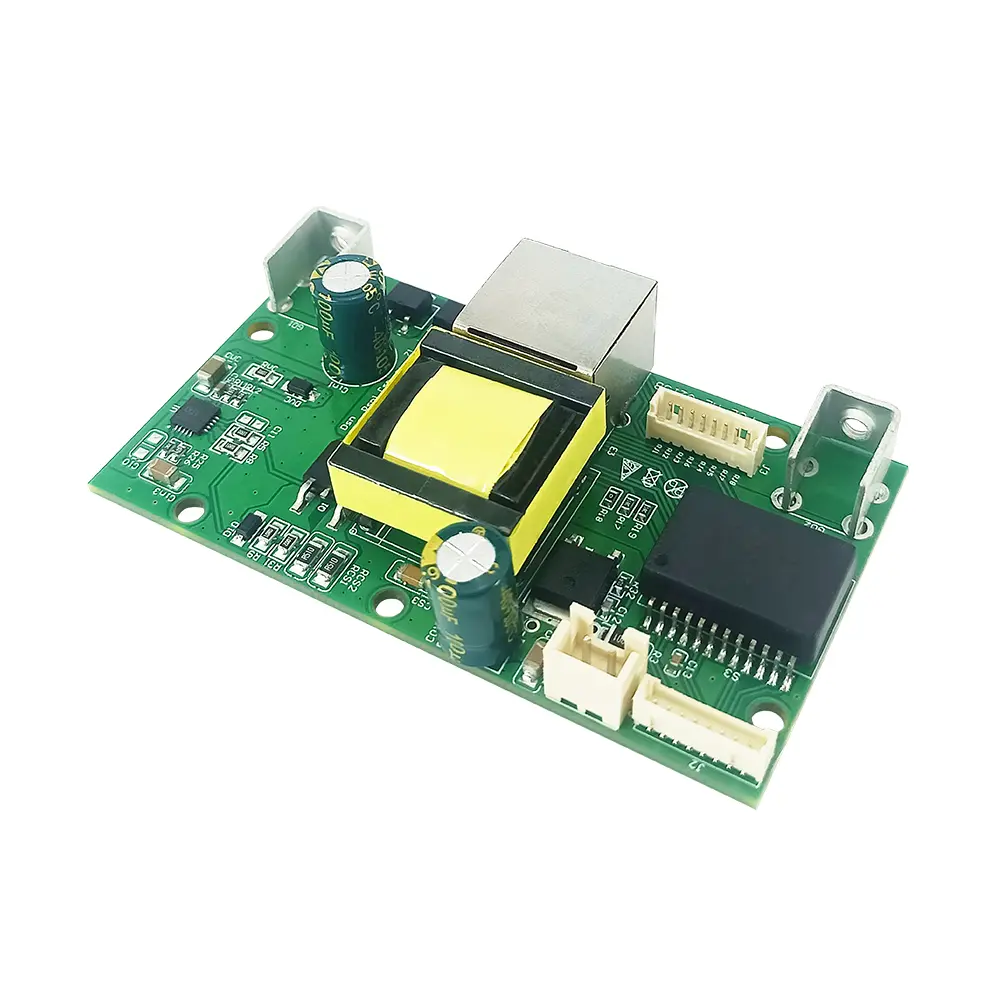

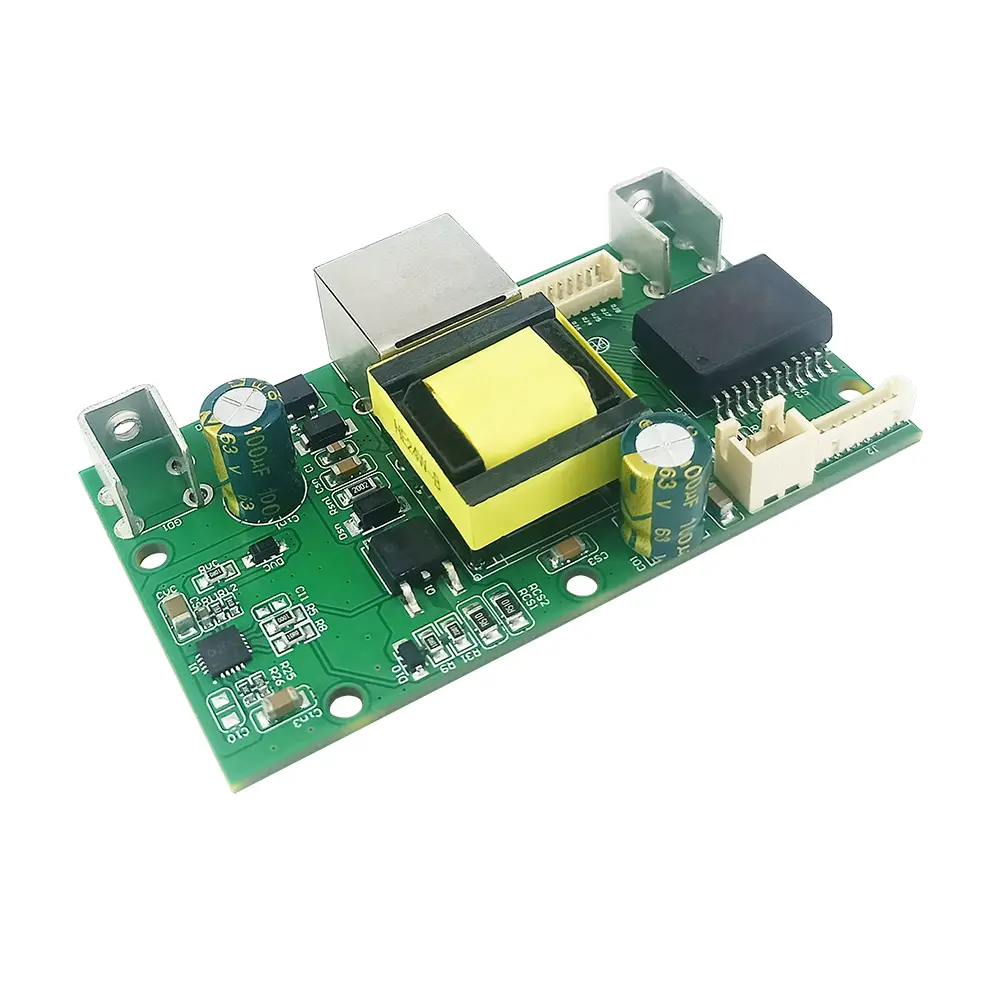

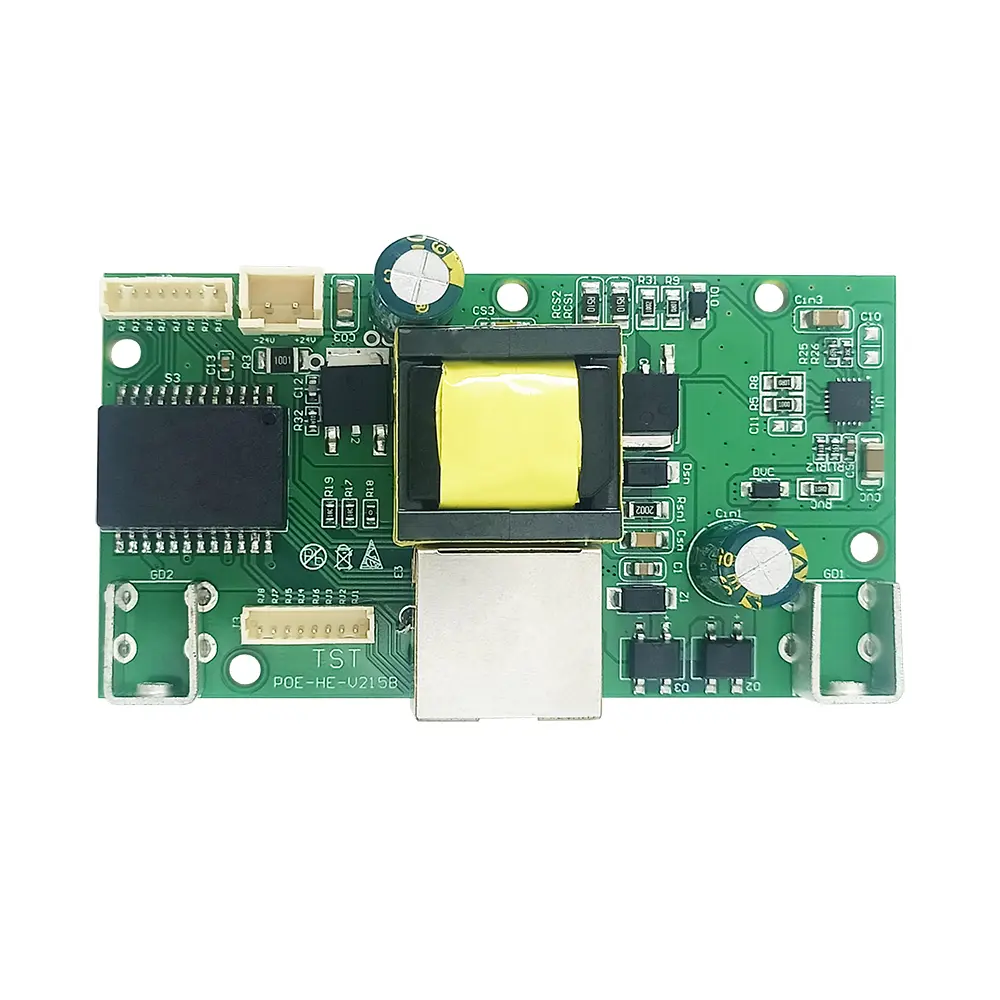

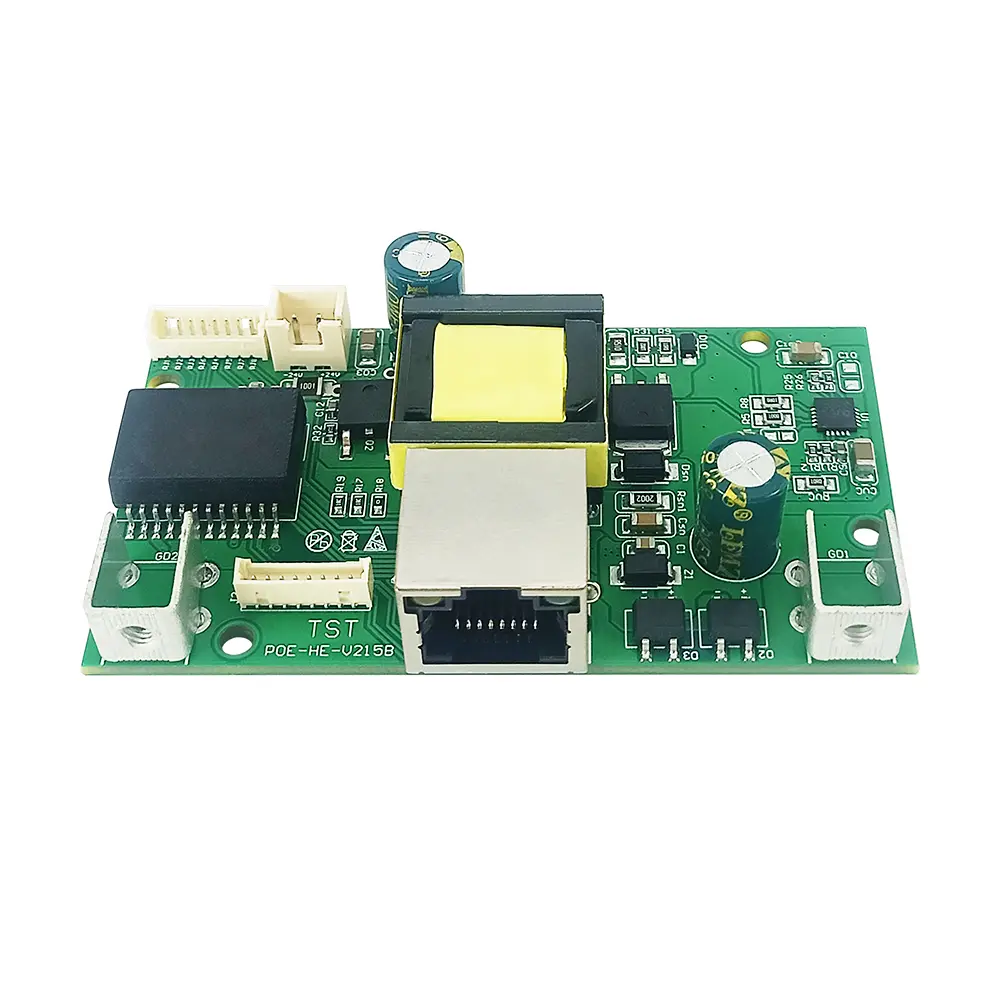

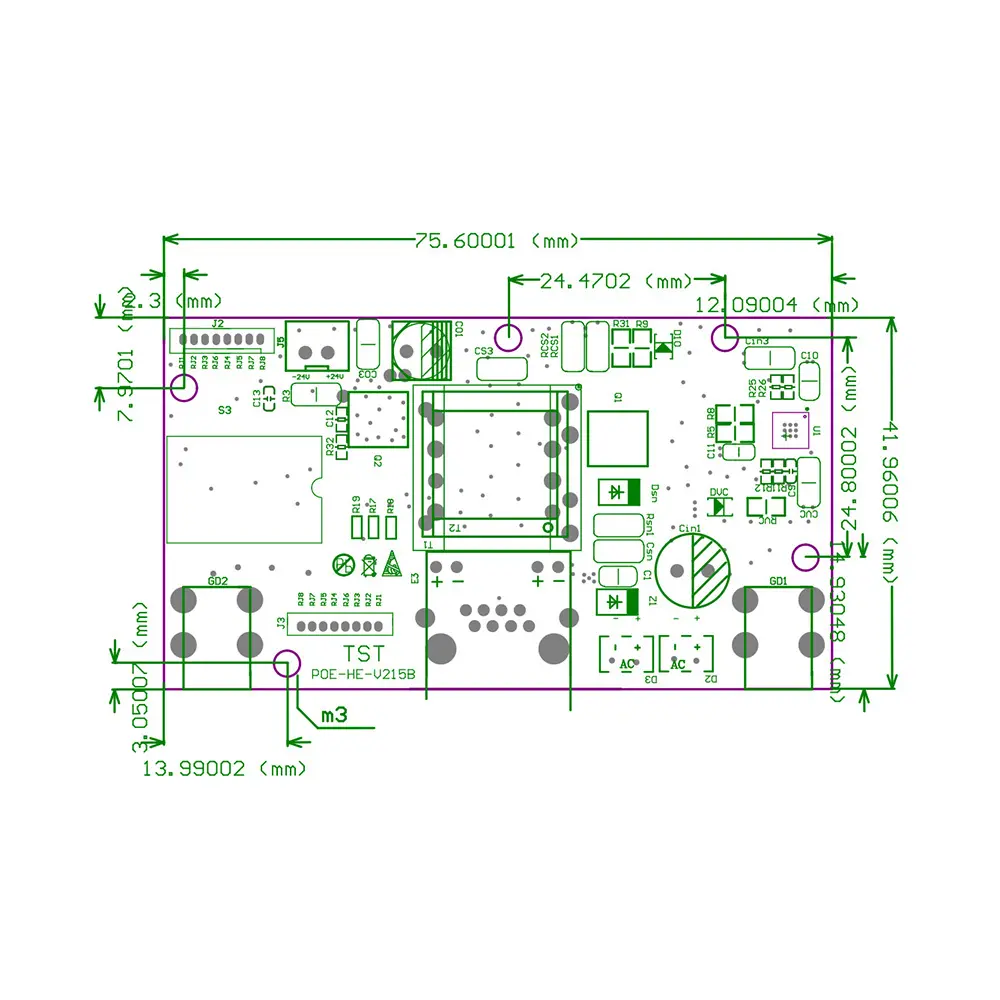

The overall dimensions of the module are 76 * 42 * 16 mm, with the maximum thickness being 16 mm and the PCB thickness being 1.6 mm. It has a square structure. The diameter of the screw holes is Φ = 3 mm, and there are 5 such holes. Module Design: It features a two - layer single - sided board design. Components are concentrated on one side, which enhances the integration of circuit functions. There are two metal hanging ears on both sides, facilitating easy installation and fixation. The surface of the PCB is coated with bright - green solder mask. The net weight of a single module is 35 g.

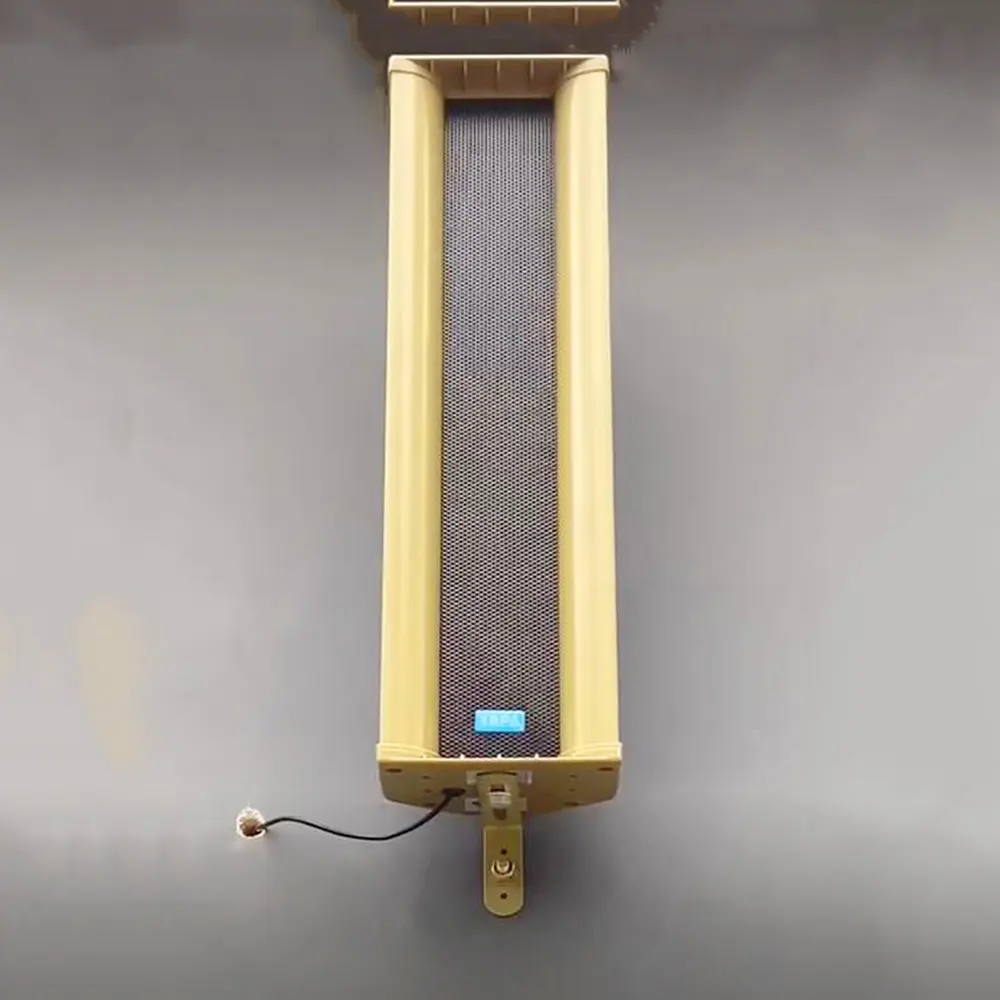

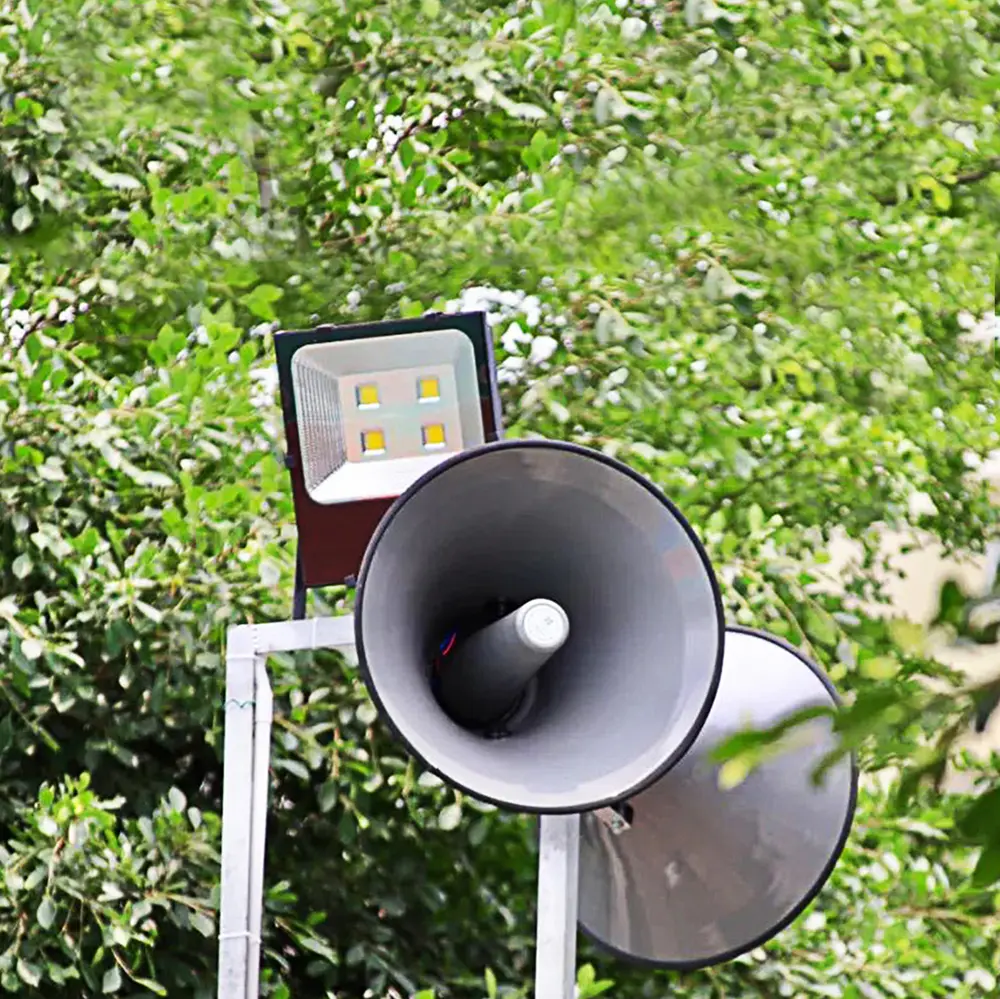

Integrating the TSD - V215B module into users' audio equipment can provide PoE power supply support for non - PoE audio devices. By achieving "dual - use of a single cable", it enables the synchronous transmission of power signals and audio data signals. This can reduce the complexity of audio equipment wiring, enrich the application scenarios of audio devices, and endow traditional audio equipment with advantages such as convenience, flexibility, and high efficiency. The TSD - V215B brings new options for the functions and application scenarios of users' audio equipment.

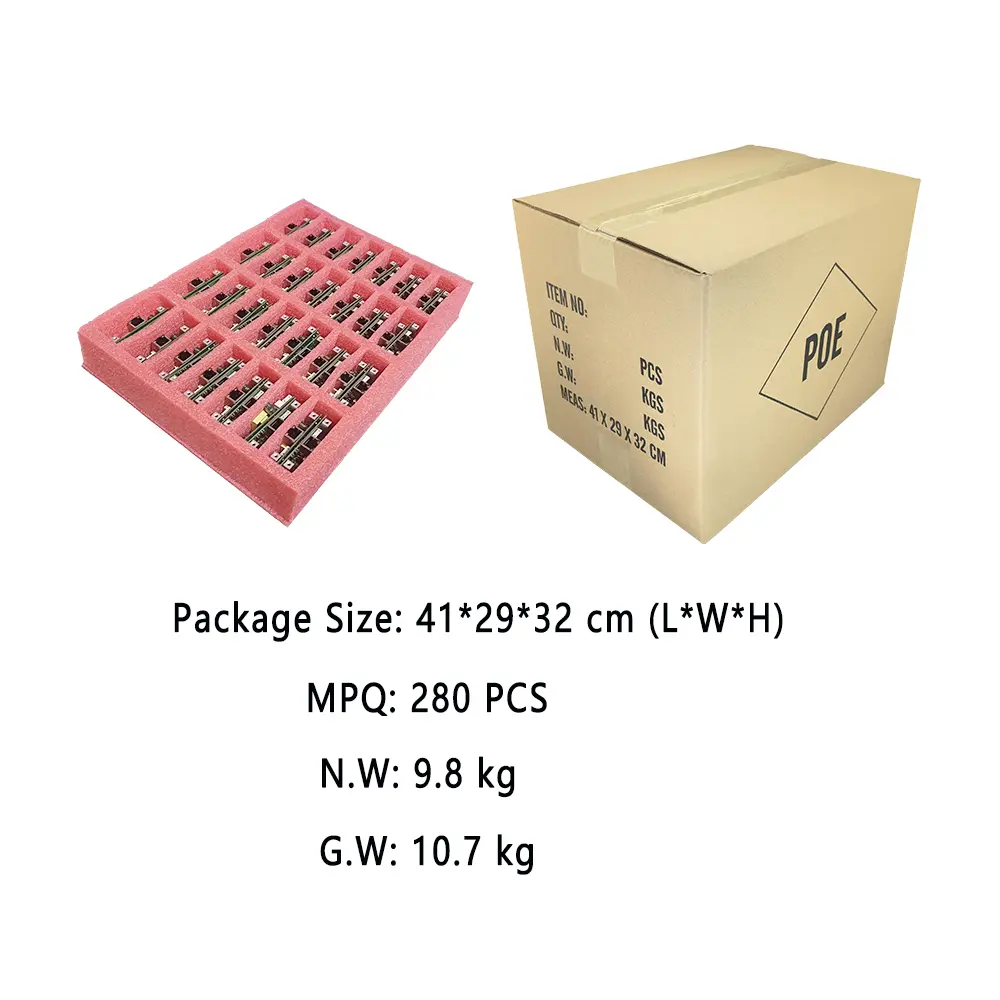

Package list
Items	Quantity
V215B PoE module	280 PCS
Operation Manual	/
