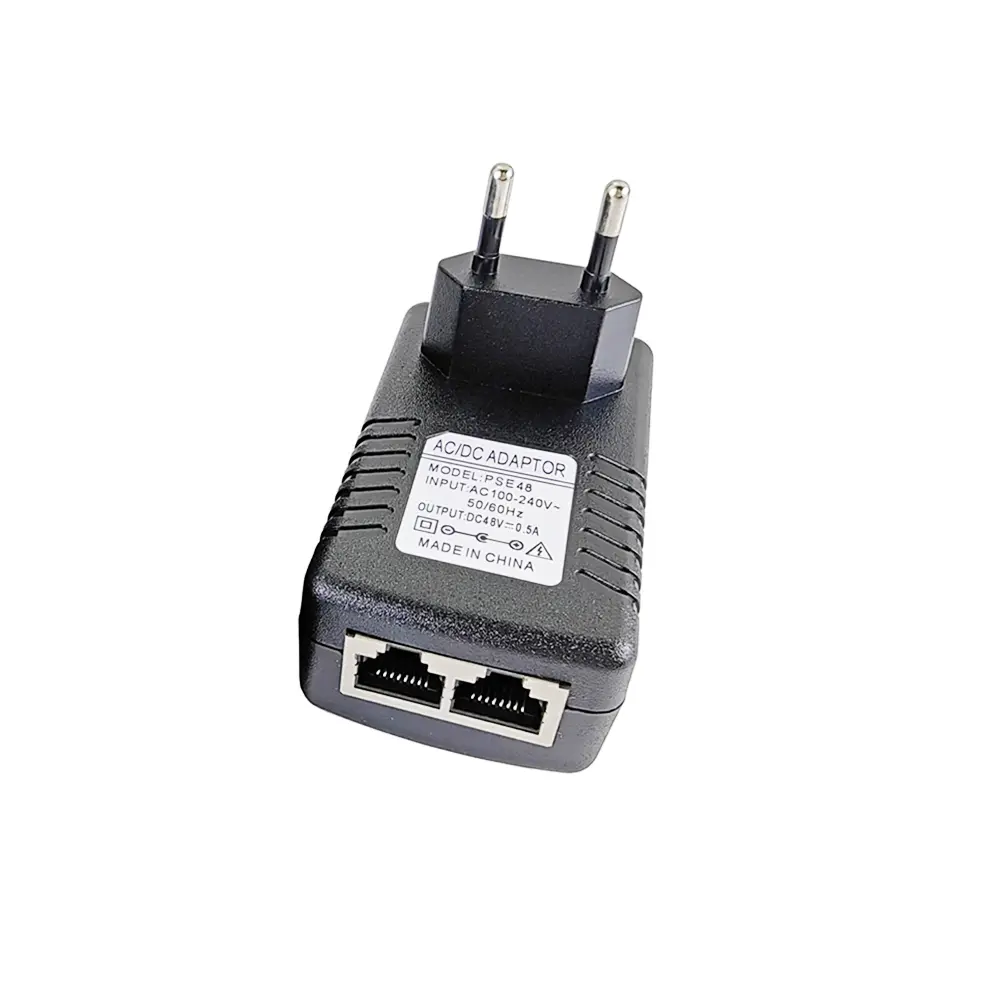

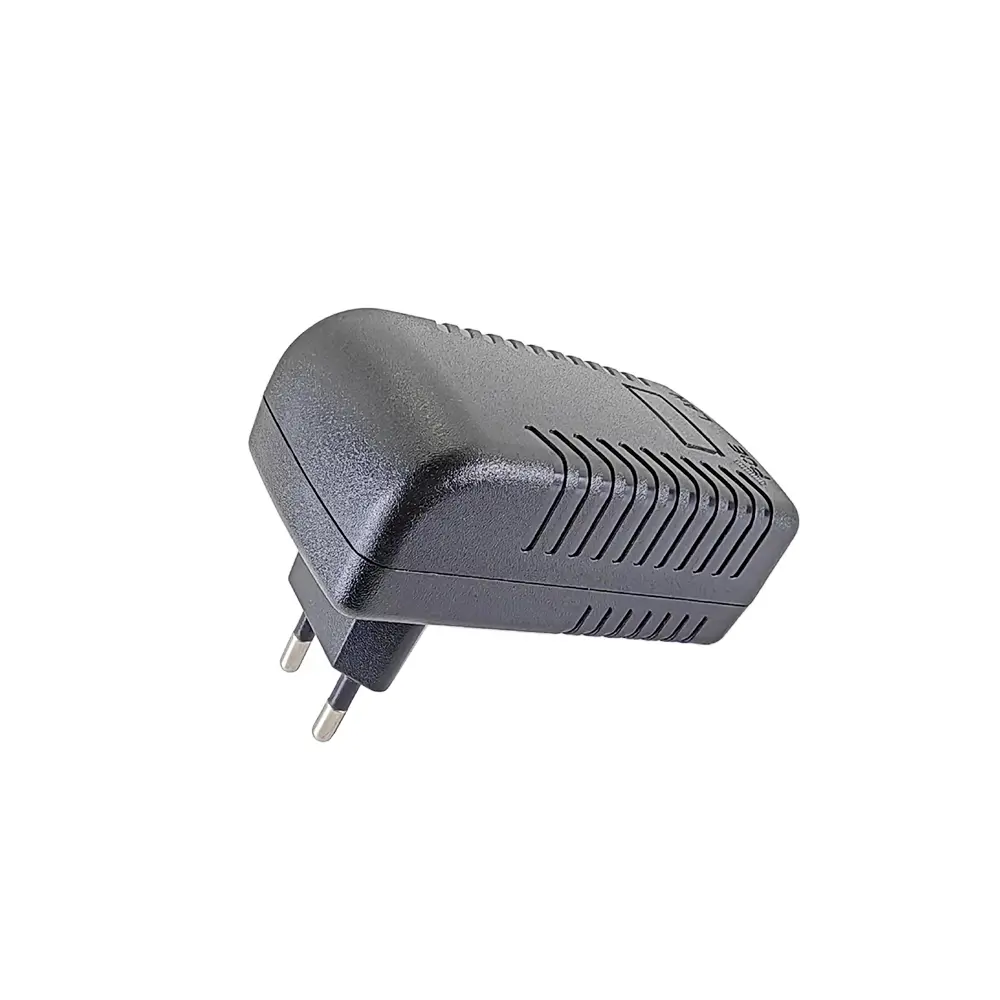

25W 100Mbps Adaptive Plug-type POE Power Supply

Model: TSD-PSE48

Input: AC 100-240V 50-60HZ
Output: PoE 48V 0.5A 25W
Transmission rate: 10/100Mbps
Conversion efficiency is over 85%
Power supply pins: RJ45+ RJ78-
Interface: RJ45 port/AC plug
Size: 82*47*32 mm (L*W*H)
Weight: N.W=71 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

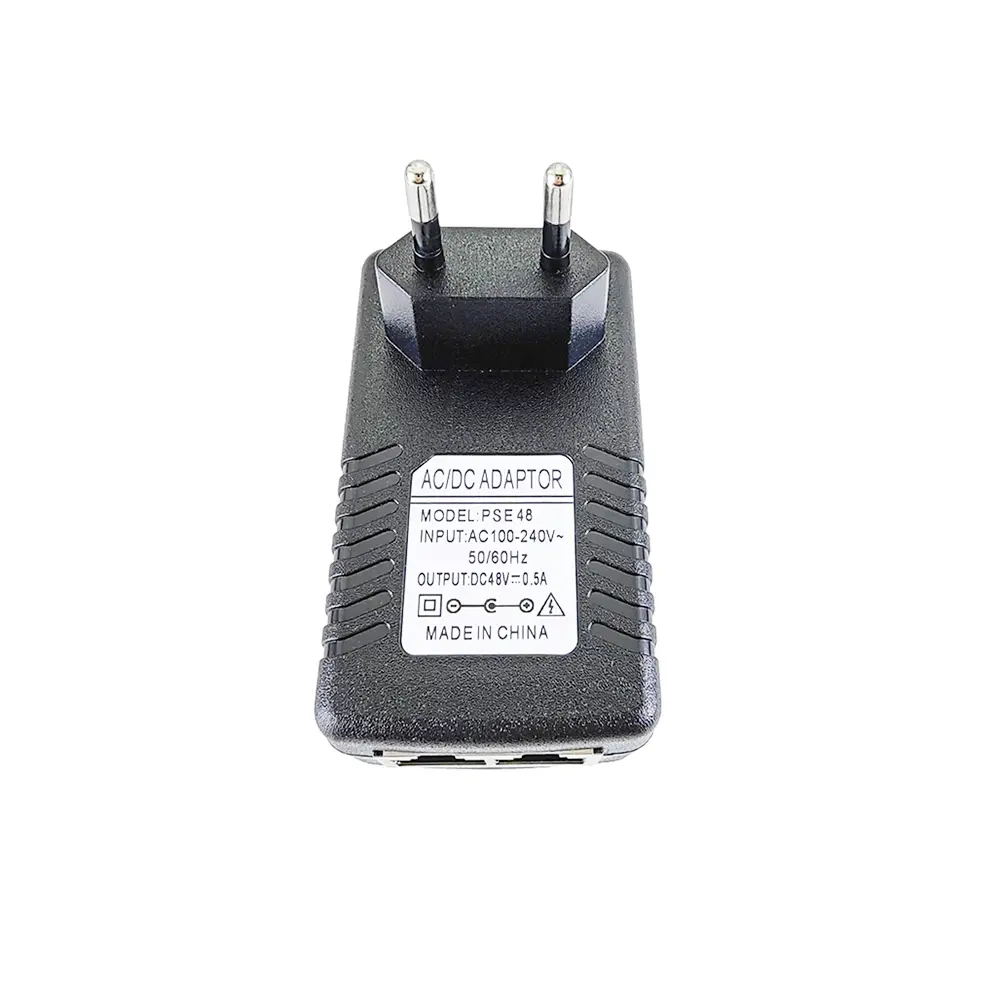

The PSE48 is a 25W 100Mbps adaptive pluggable PoE power supply, also known as a passive PoE injector. It comes with a built-in AC European plug and can be plugged directly into a power outlet for instant use.

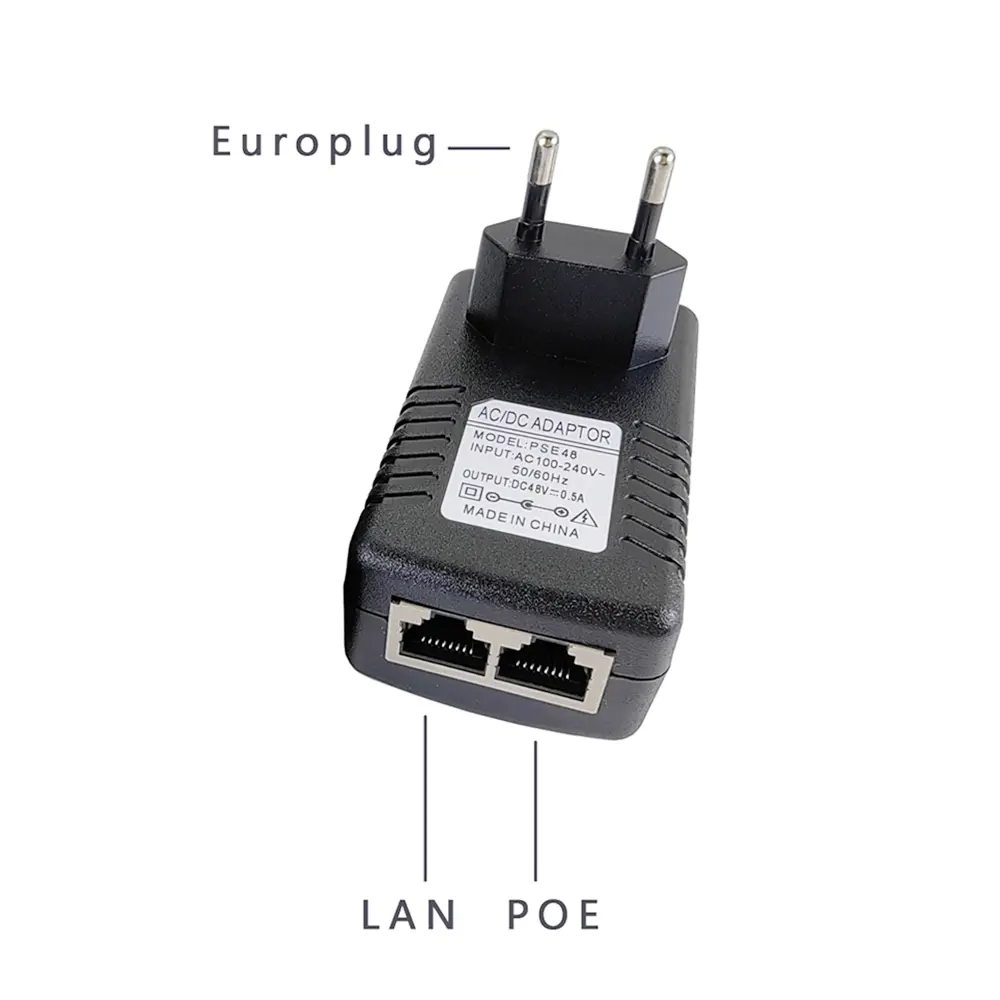

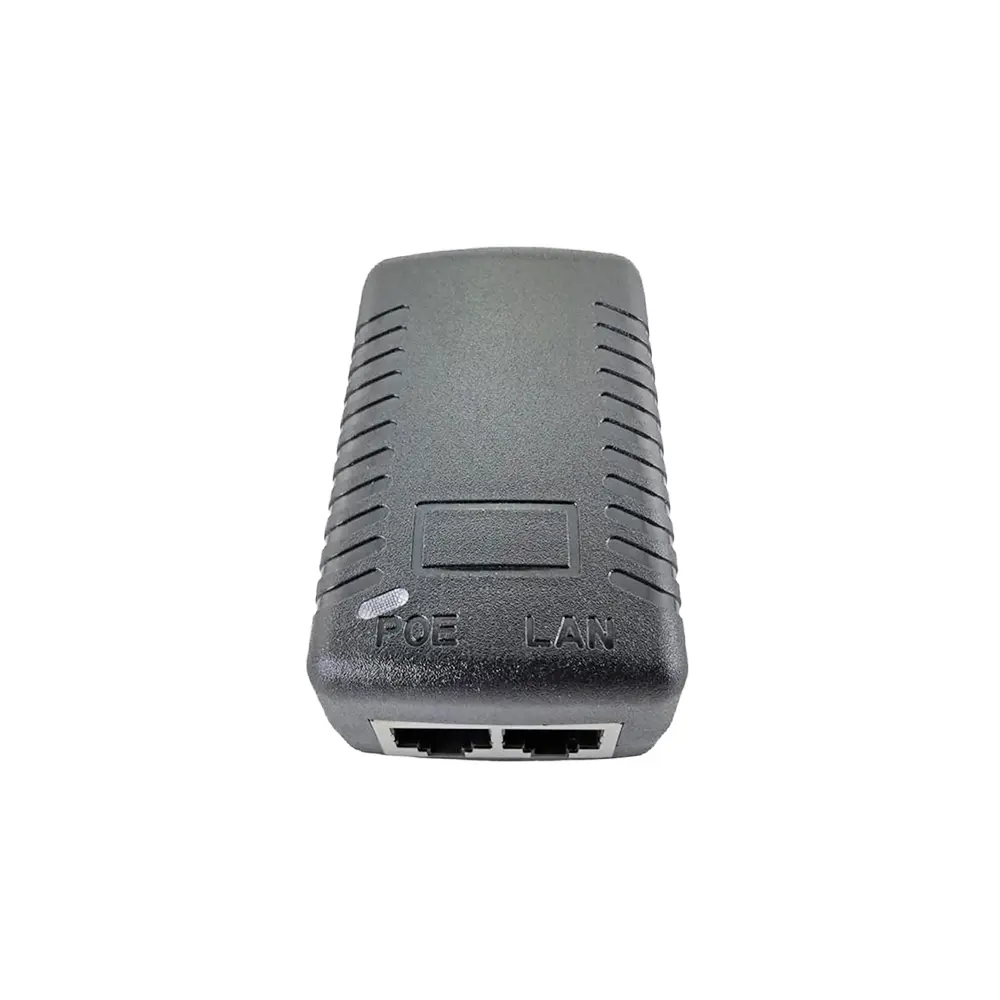

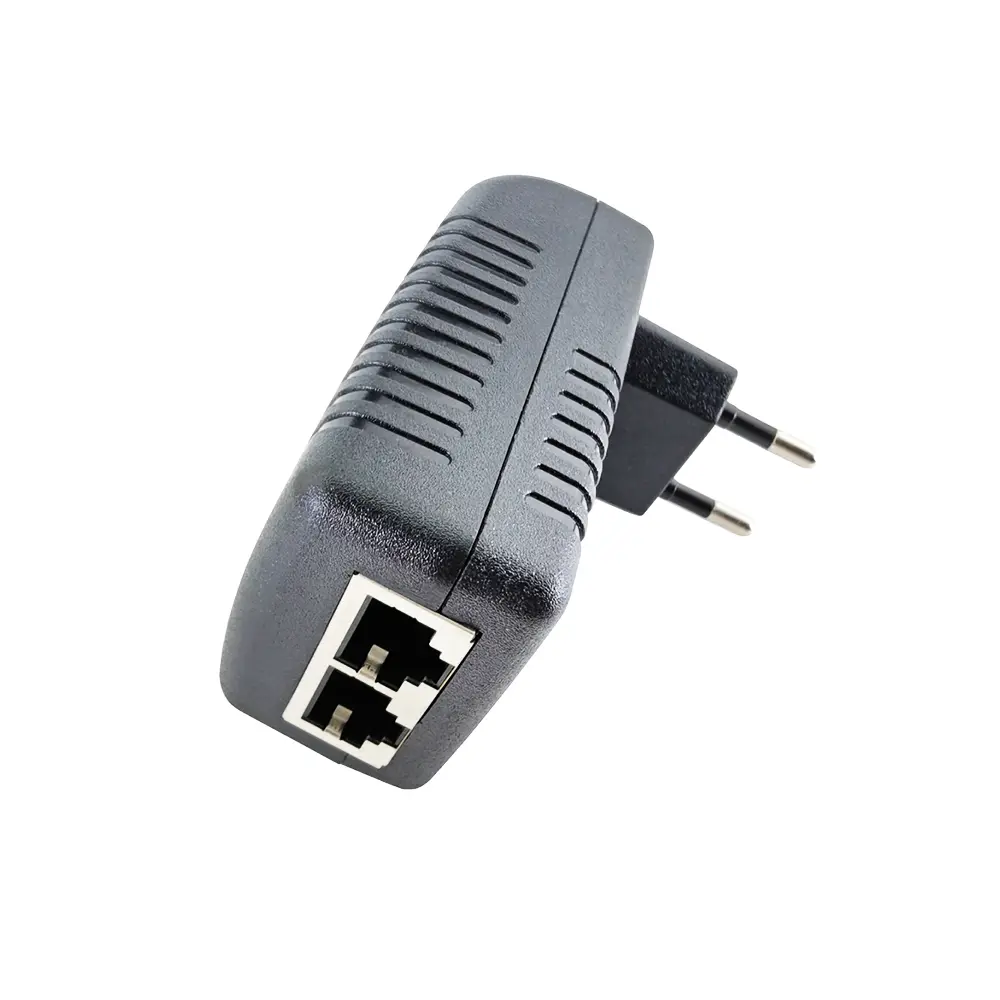

The PSE48 has one POE port, one LAN port, and an AC plug. The POE port is a POE output port that outputs POE signals for connecting to PDs. The LAN port is an uplink port for connecting to higher-level network devices such as switches and routers for data exchange. The AC plug accepts 100-240V 50-60Hz AC power.

The PSE48 is a single-port PoE injector that can stably output a 48V 0.25A PoE signal with a maximum output power of 25W, providing power supply support for PoE devices in simple environments such as homes and offices.

The PSE48's circuit design utilizes an isolation transformer, providing circuit isolation. The product's internal circuitry includes built-in lightning protection, overvoltage protection, overcurrent protection, overtemperature protection, and short-circuit protection. The product's EMC specifications meet IEC 61000-4-2/3/4/5/6 standards and are certified to safety standards such as CE, ROHS, and FCC, making it widely used in various countries and industries worldwide.

The PSE48 injector has an input voltage of AC 100-240V 50/60Hz and outputs a 48V 0.52A PoE signal (other voltages can be customized upon request). It has a maximum power draw of 25W. It features an adaptive 10/100M data rate, ensuring stable and efficient data transmission. The PoE power supply pins are RJ45+ and RJ78- (other pins can be customized upon request).

● Input: AC100-240V 50-60HZ
● Output: PoE 48V 0.5A 25W
● Compliance: /
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ45+ RJ78- compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%

● 100Mbps high frequency POE filter to ensure stable data transmission

● International brand original high-precision electronic components, stable performance

● High temperature resistant PCB environmental protection material, lead-free environmental protection process

● Adopt pure copper pin connector to avoid bad contact

● Environmental and high temperature resistant ABC plastic material

Product parameter table
Product Name	25W 100Mbps adaptive plug-type POE power supply
Product Model	TSD-PSE48
PoE Standard	/
Input Voltage	AC 100-240V 50-60HZ
Output	PoE 48V 0.5A 25W
Conversion Efficiency	≧85%
PoE Pin	RJ45+ RJ78- compatible
Conversion Mode	Isolated type
Data Rate	10/100Mbps Auto-Negotiation
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short - circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	power indicator *1
Interface	LAN port : data transmission AC plug : AC in PoE port : 48V 0.5A PoE out
Function	/
Material	ABS plastic
Color	black
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 71 g G.W: 82 g
Dimension	Product Dimension: 824732mm Packing Dimension: 1004866mm
Package	White Carton

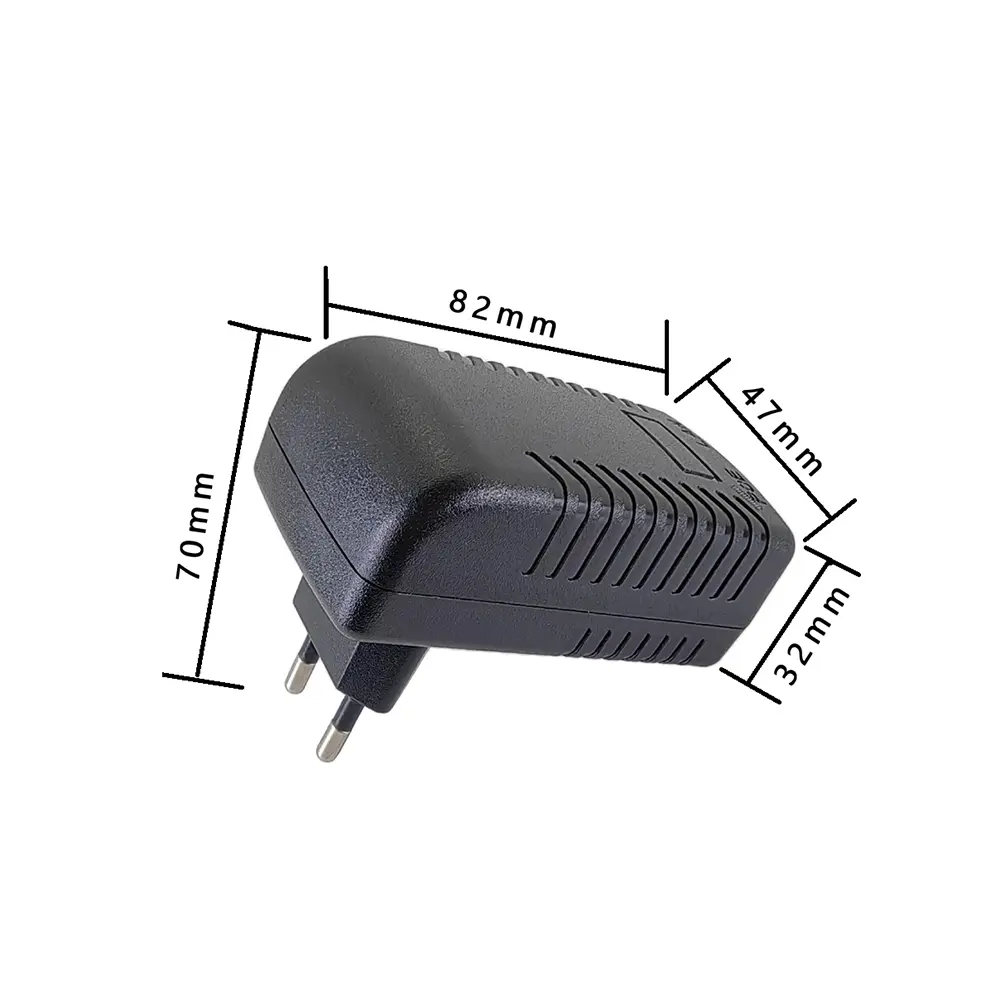

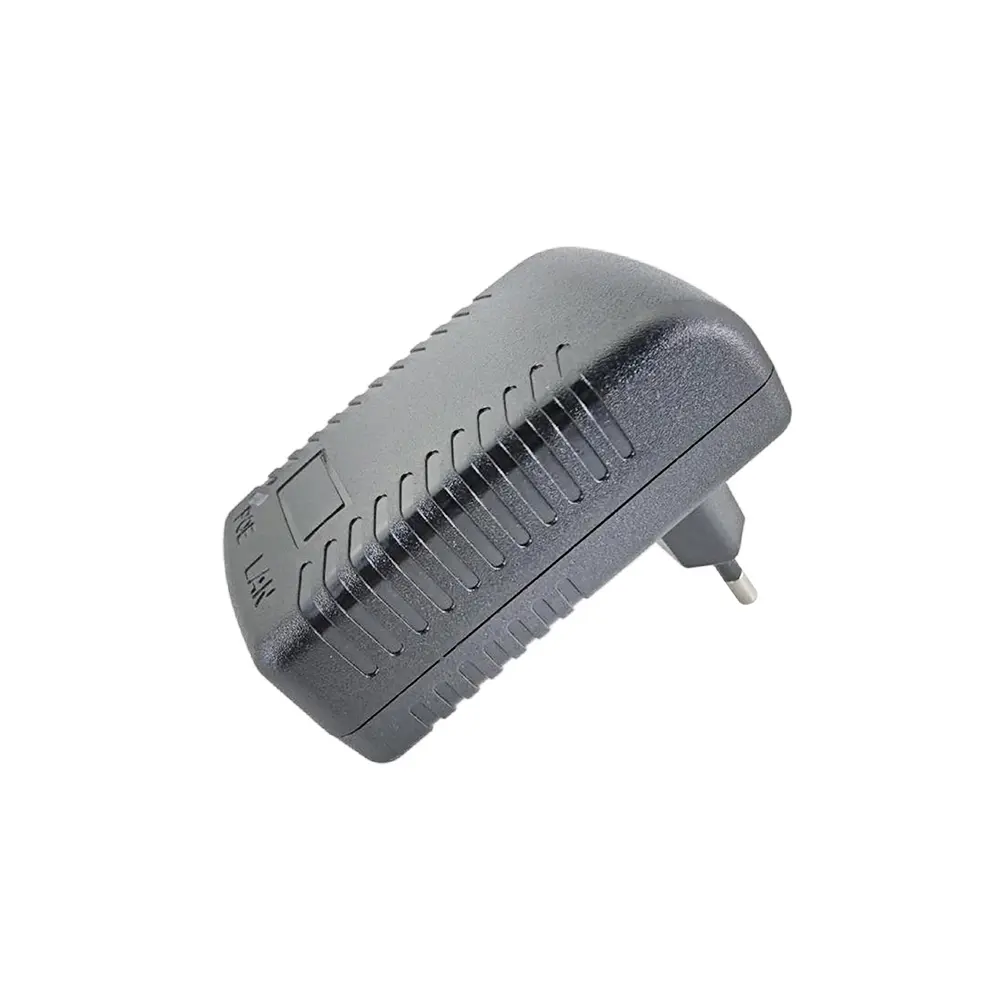

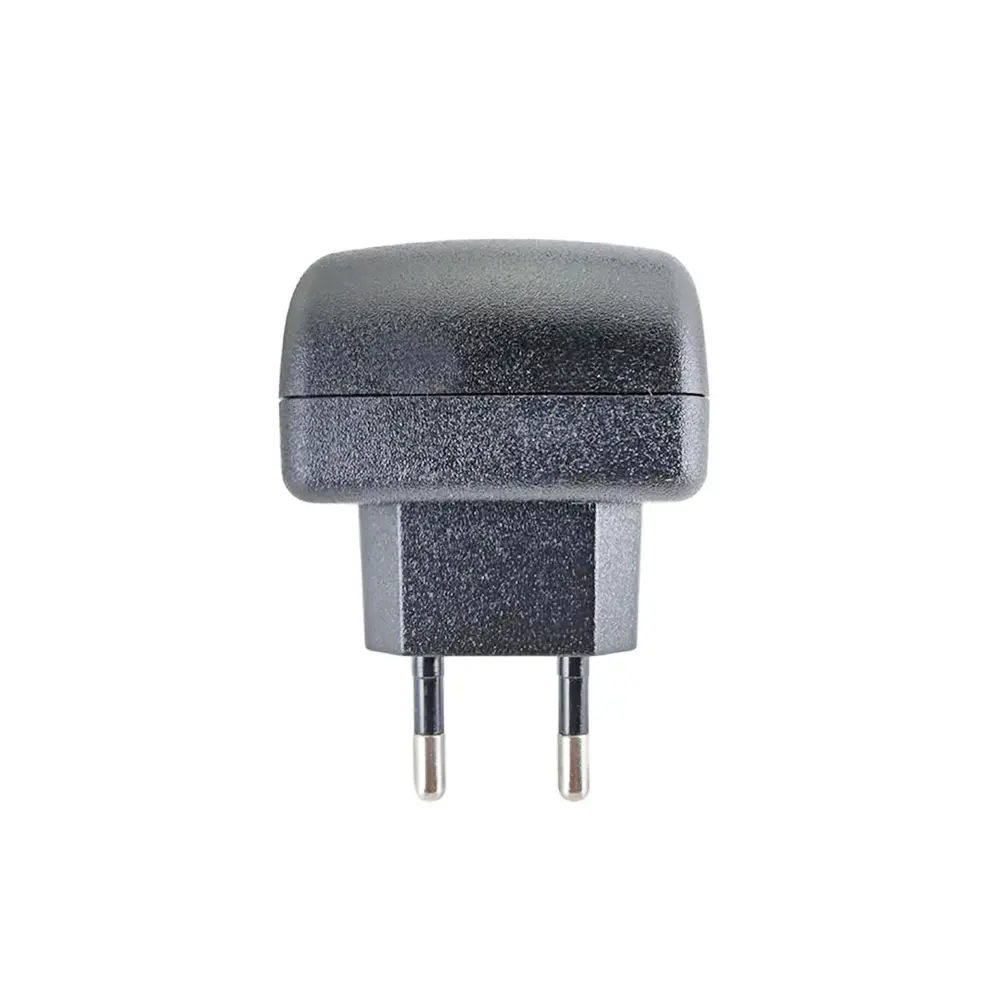

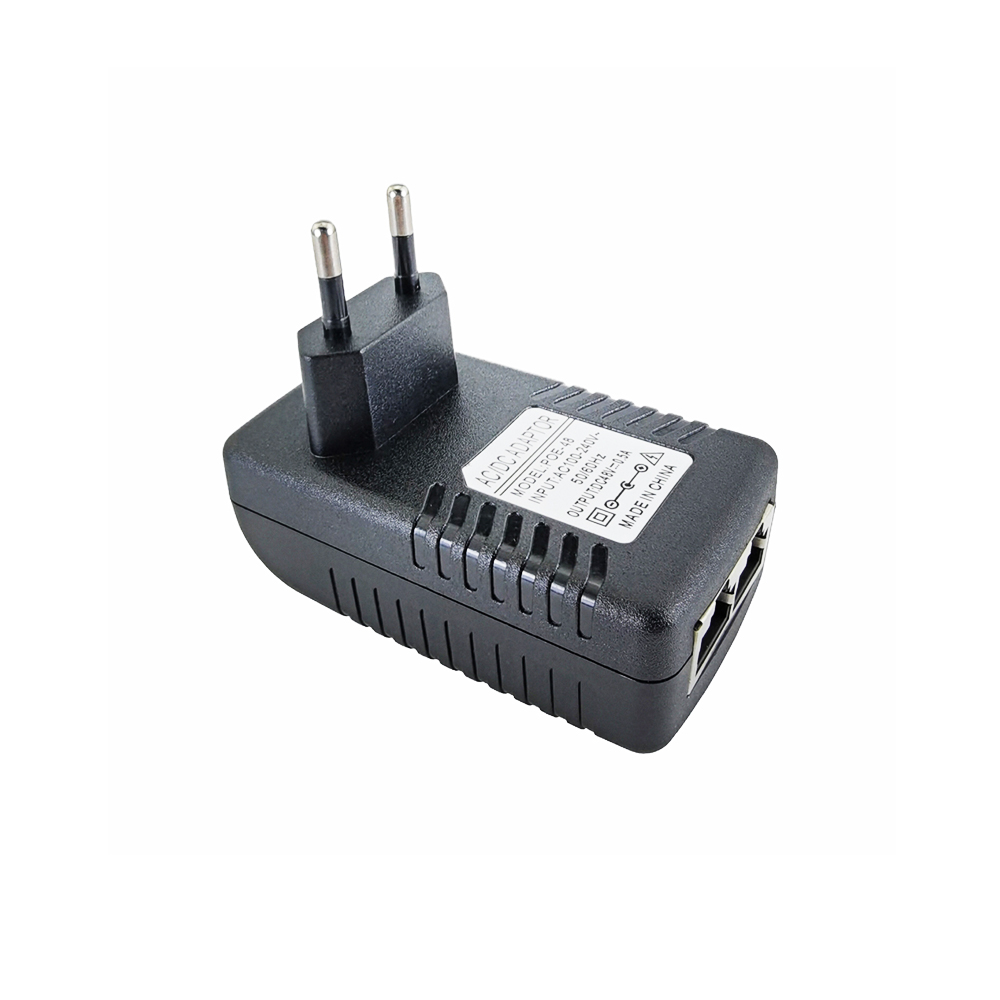

The PSE48 power injector measures 82*47*32mm, boasting a compact design and easy installation. It comes with a built-in AC plug that plugs directly into an AC outlet, eliminating the need for an AC cord. The default AC plug is European standard, but can be customized for other countries. An LED indicator light indicates operating status. The housing is made of environmentally friendly, high-temperature-resistant ABC plastic.
pse48-dimension

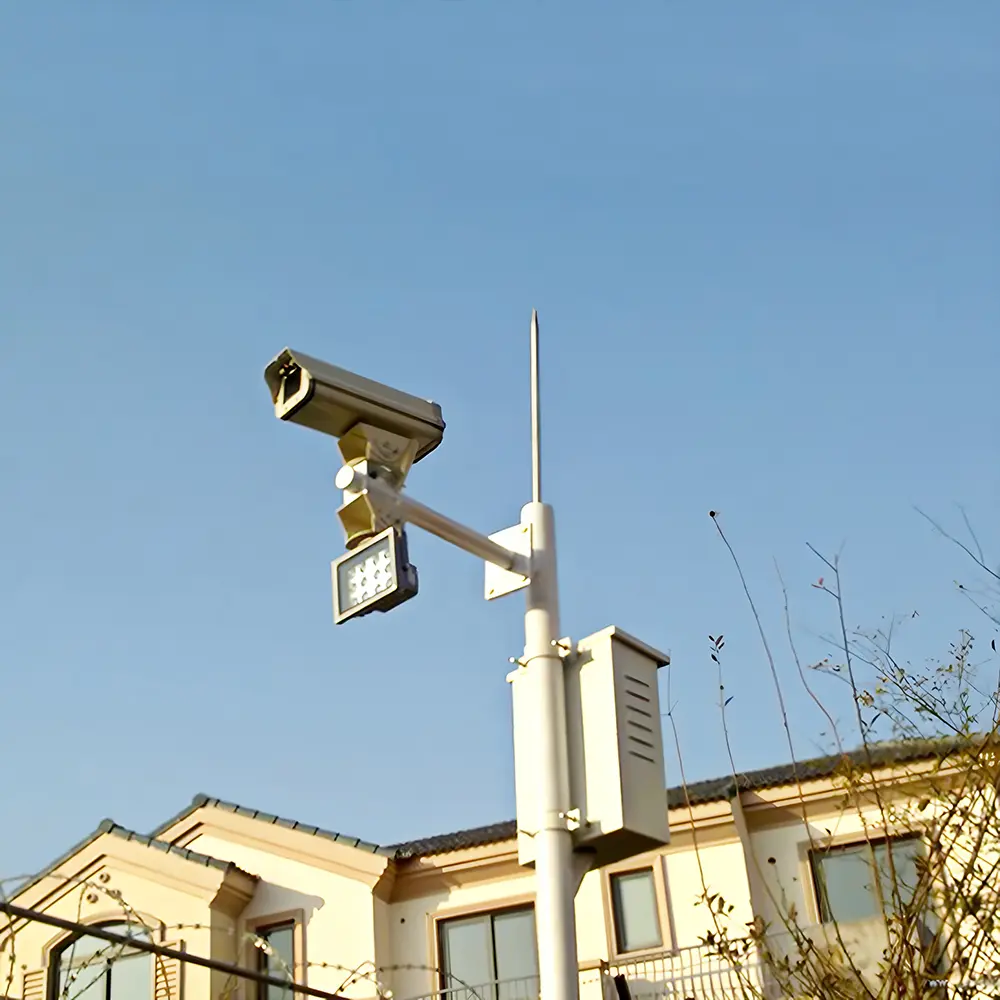

PSE48 is widely used in CCTV, Wireless Transmission, Smart Home and other fields to provide POE signals for POE devices, or for passive devices through POE Splitter. It has changed the traditional power supply mode of weak current projects, saving labor and material costs, and improving the safety and stability of the entire system.

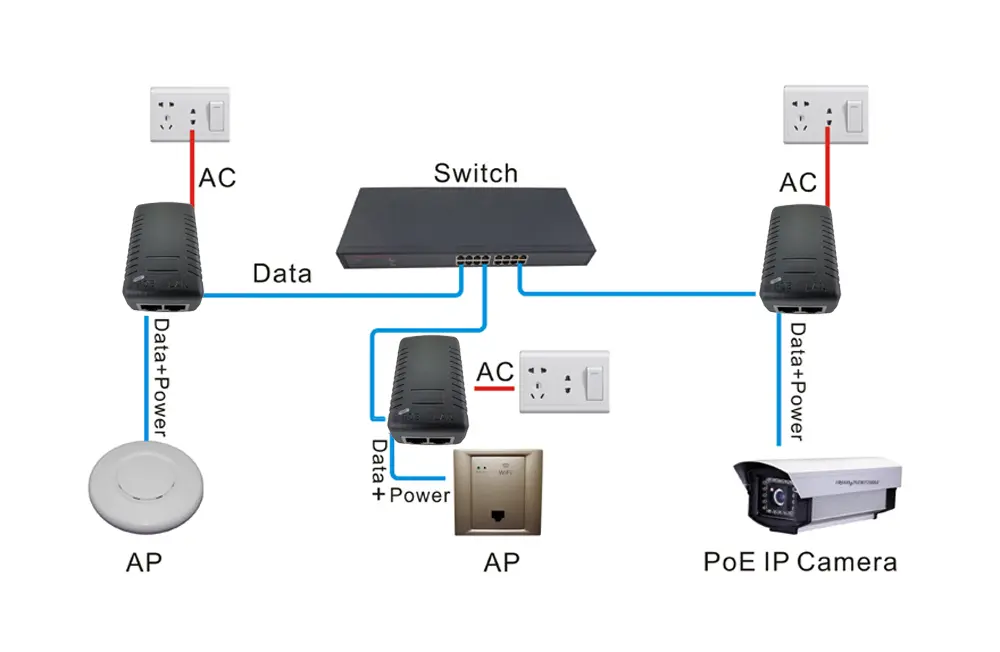

PSE48 is a Passive POE Injector, the POE Port will force the output of 48V POE signal, so please do not directly connect the POE Port to non-POE equipment when installing and using. Be sure to connect the POE Port to the POE device or connect the non-POE device through POE splitters. PSE48-APPLICATION- topology

Package list
Items	Quantity
TSD-PSE48 injector	1 PCS
Operation Manual	/
