18W PoE PD module for IPC devices

Model: TSD-PD3862

Input: Wide-Range PoE DC 38-56V
Output: DC 12V MAX1.5A
PoE protocol: IEEE 802.3af
transmission rate: 10/100Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PH1.25/2.0 terminal block
Size: 61.3*61.3*12.3mm (L*W*H)
Weight: N.W=10g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

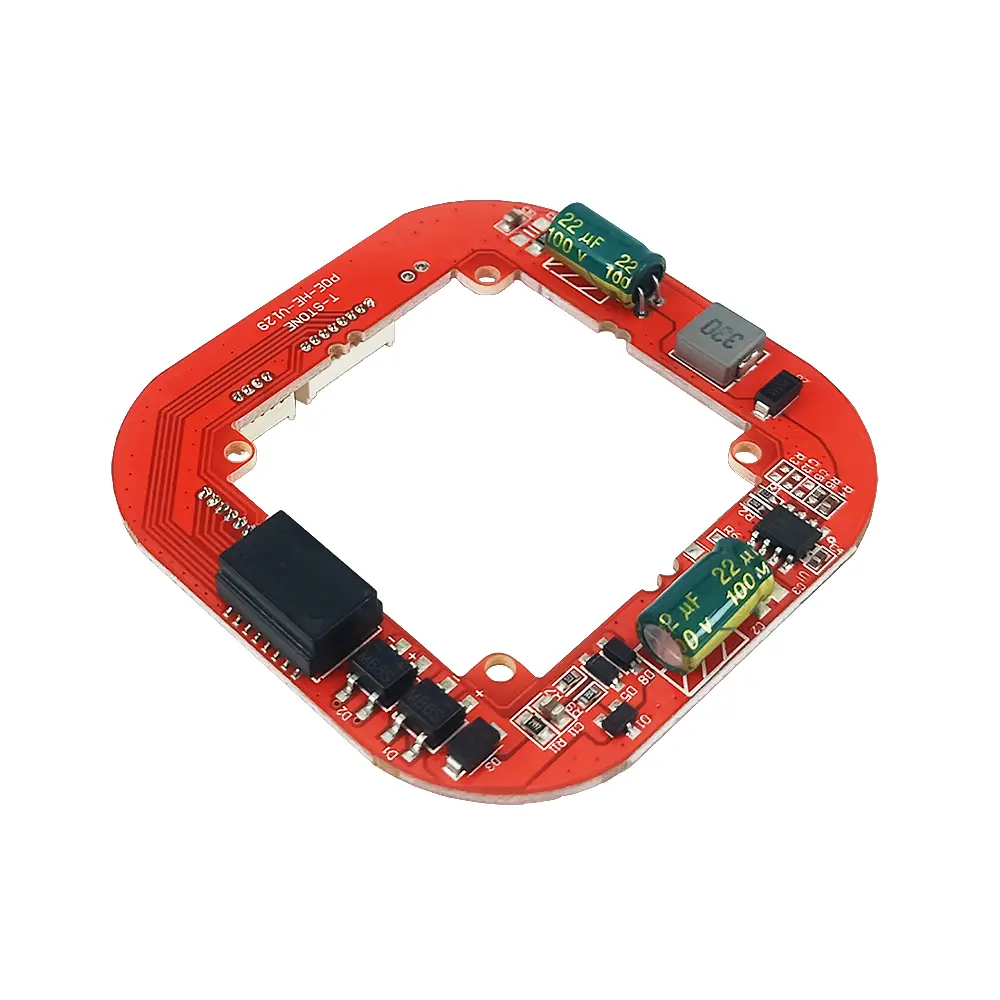

TSD-PD3862 module is an active PoE module designed for IPC equipment such as hemispherical cameras in the field of security monitoring. The maximum output power of the module is 18W, and it can stably output 12V 1.5A DC.

The TSD-PD3862 module has the handshake recognition function, which can receive the identification signal of the power supply equipment, complete the transmission of PoE signal, and provide continuous DC power for the terminal device and transmit data signals.

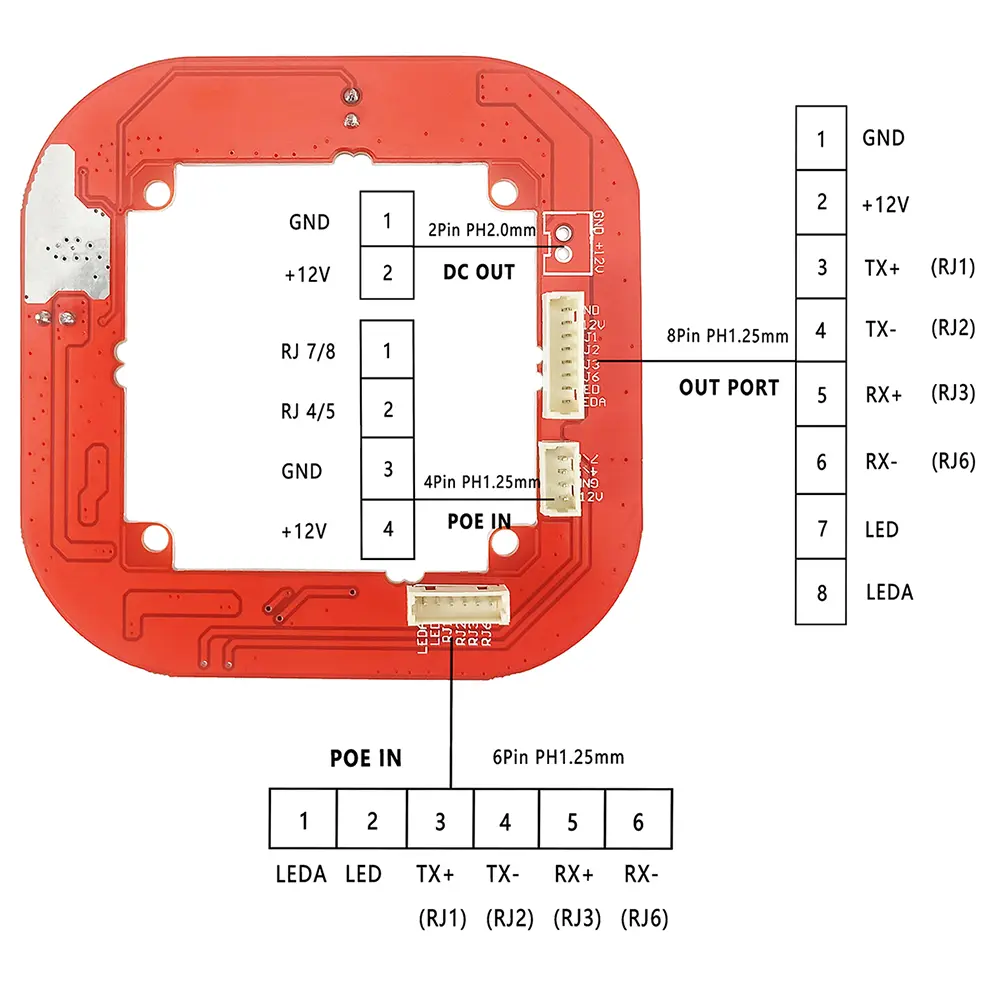

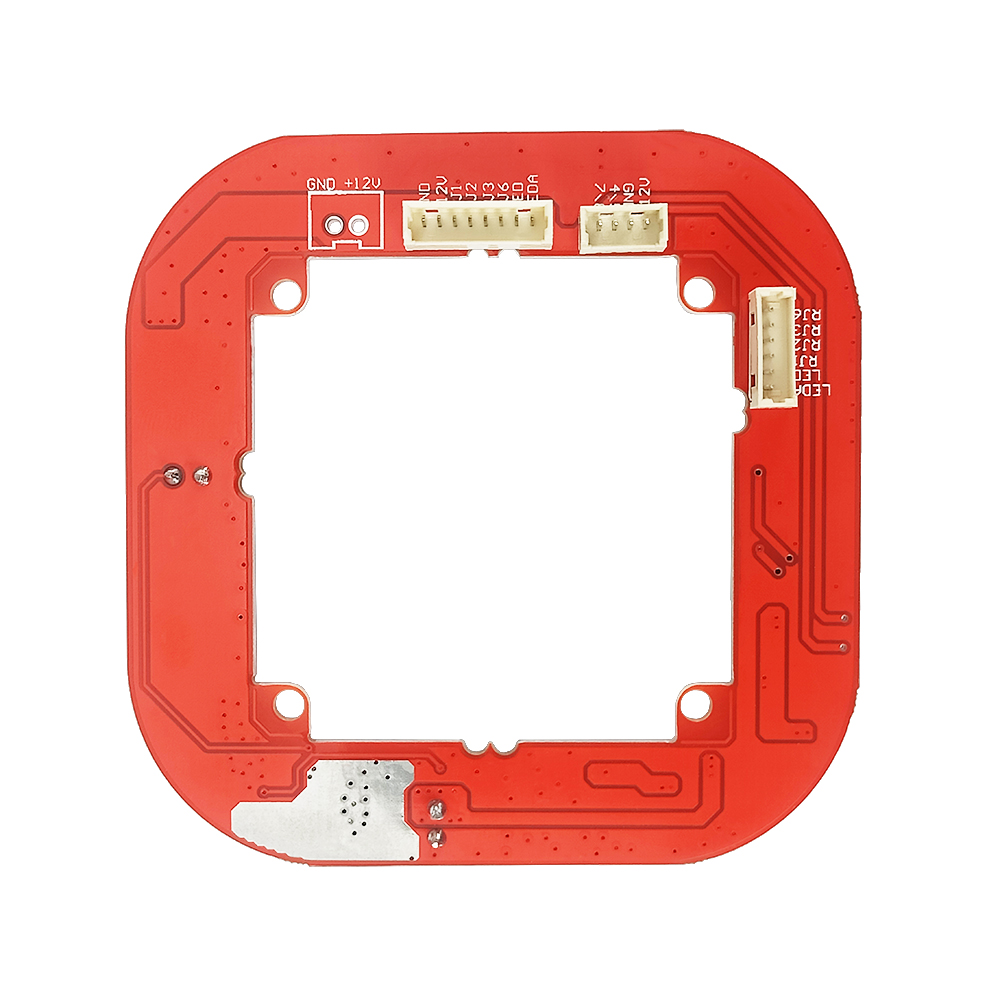

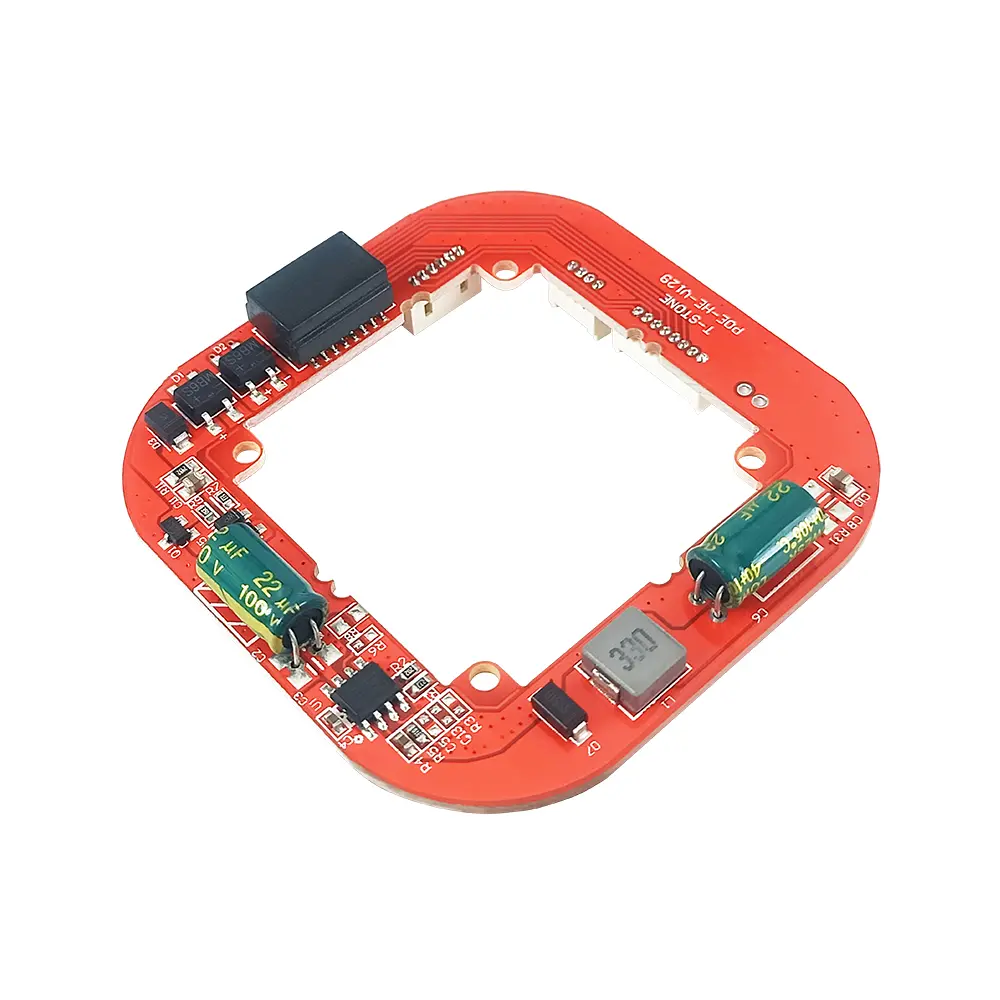

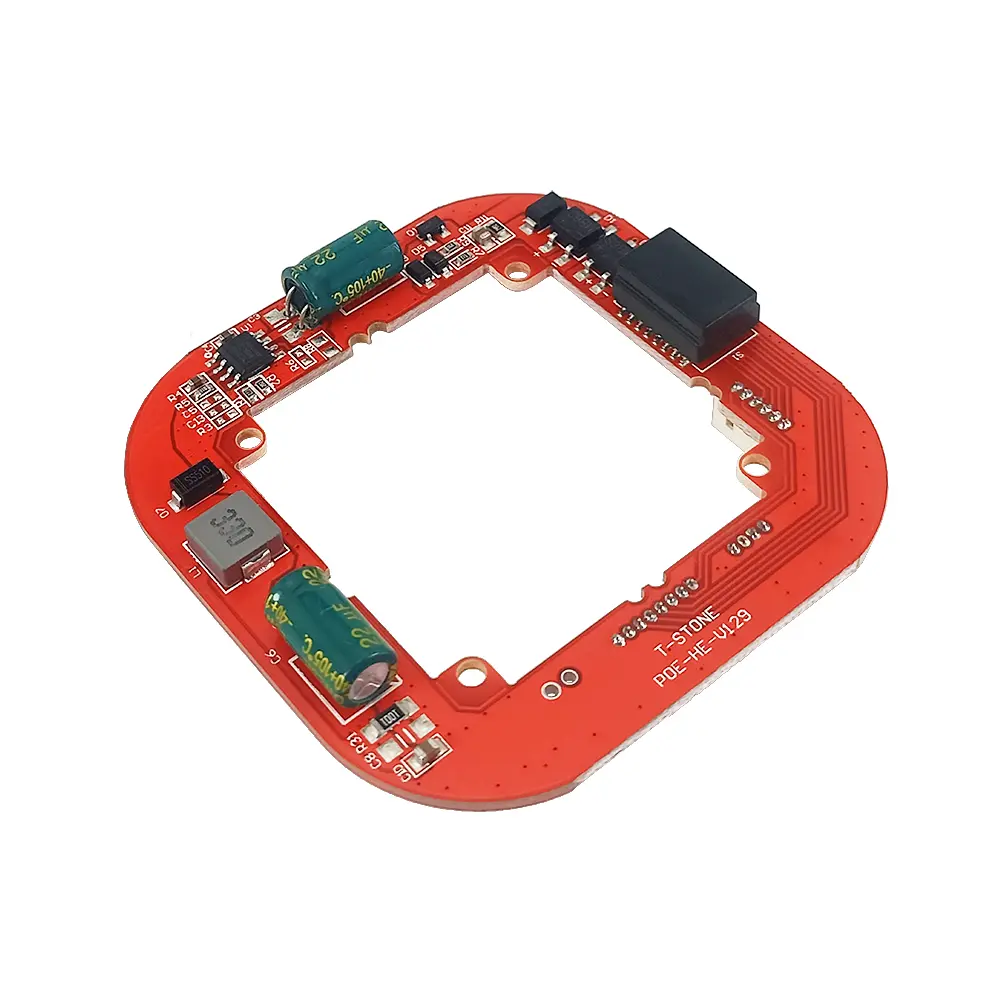

The input and output ports of the TSD-PD3862 module are set on the back of the circuit board. There are two input terminal blocks: a 4-Pin PH1.25mm female socket, supporting RJ45+ and RJ78- PoE power supply, and outputting 12V direct current; a 6-Pin PH1.25mm female socket, supporting RJ12+ and RJ36- power supply. There are two output terminal blocks: a 2-Pin PH2.0mm female socket, outputting 12V DC,1.5A; an 8-Pin PH1.25mm female socket, outputting data signals and 12V DC,1.5A.

The TSD-PD3862 module supports the IEEE802.3af PoE international standard protocol and has obtained authoritative certifications such as CE, FCC, and RoHS. The EMC parameters meet the requirements of the IEC 61000-4-2/3/4/5/6 standard, and the product is sold well in more than 100 countries worldwide.

The maximum output power of the TSD-PD3862 module is 18W, and it has functions such as overheat protection, overvoltage protection, over-current protection, and short circuit protection. Transmission rate: 10/100M adaptive. It supports wide voltage input DC38-56V, and the default output voltage is DC12V. Other voltages can be customized.

● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 1.5A
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate：10/100Mbps
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lighting surge resistance
● Conversion efficiency≧90%
● Design Features: Vertical interface, hollow design, flexible installation
● High temperature resistant flame retardant socket, reduce security risks

● 100 megabit high power network filter

● High frequency low resistance electrolytic capacitor, reduce circuit high frequency loss

● Environmental protection lead-free process, environmental protection high temperature resistant PCB material

● High power transistor, high conduction and low impedance

● Big original high precision electronic components

● Pure copper pin connector to ensure good contact

● Equipped with 80mm connecting line for easy connection

Product parameter table
Product Name	18W PoE PD Module for IPC Devices
Product Model	TSD-PD3862
PoE Standard	IEEE802.3af
Input Voltage	PoE: DC 38-56V
Output	DC 12V MAX 1.5A
Conversion Efficiency	≧90%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Non-isolated type
Data Rate	10/100Mbps
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Overvoltage Protection Overheating Protection Overcurrent Protection Short - circuit Protection
LED Indicator	/
Interface	PoE Input Port1 (4-Pin PH1.25mm Socket): RJ45+ RJ78- PoE Input Port2 (6-Pin PH1.25mm Socket): RJ12+ RJ36- Output Port (8Pin PH1.25mm terminal block): Data+DC OUT Output Port (2-Pin PH2.0mm terminal block): DC 12V OUT
Function	/
Material	FR-4
Color	glossy red solder mask
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 10g
Dimension	386212.3mm
Package	Anti-static pearl cotton

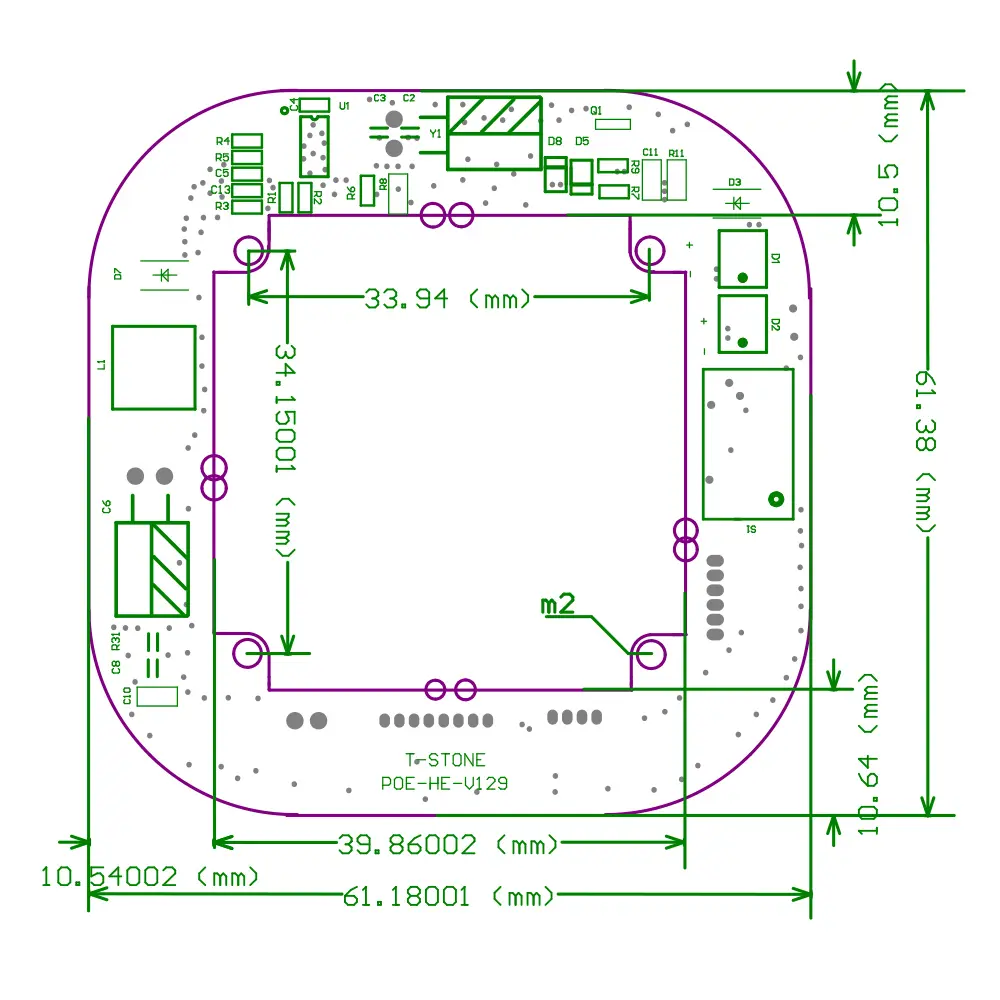

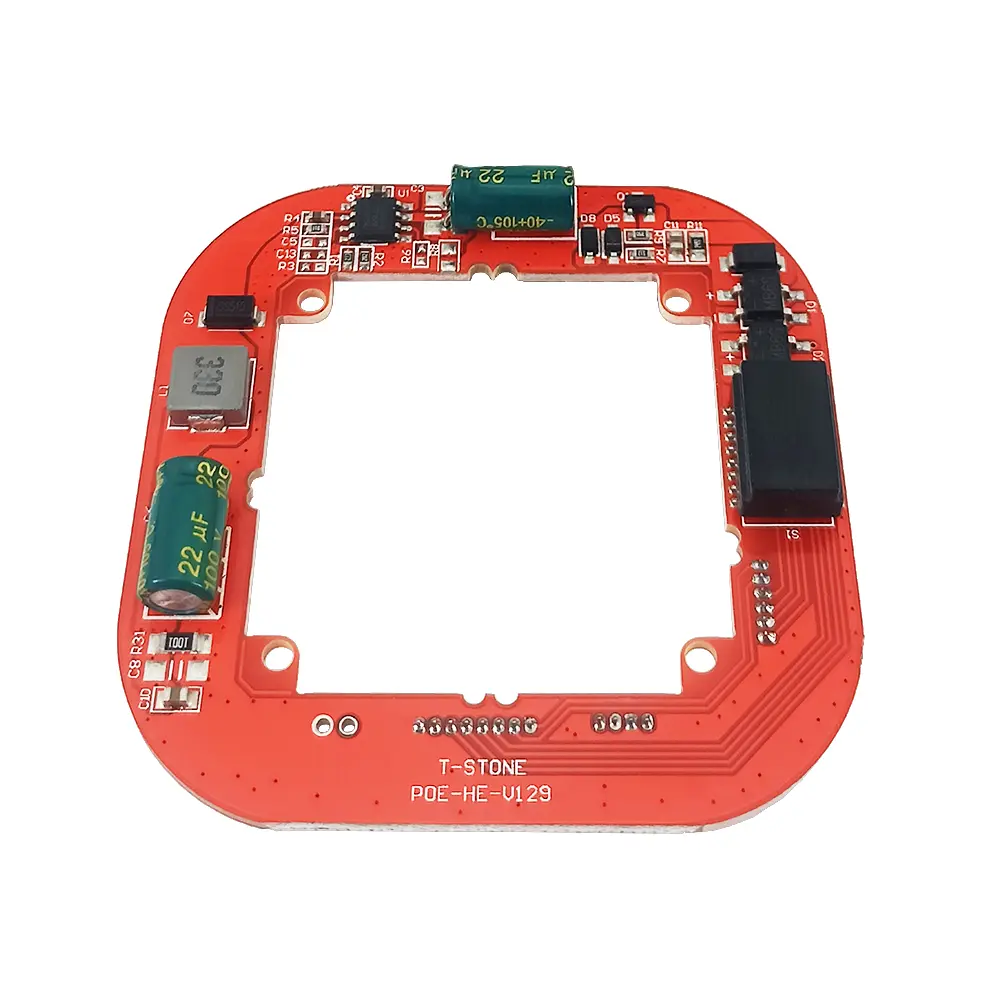

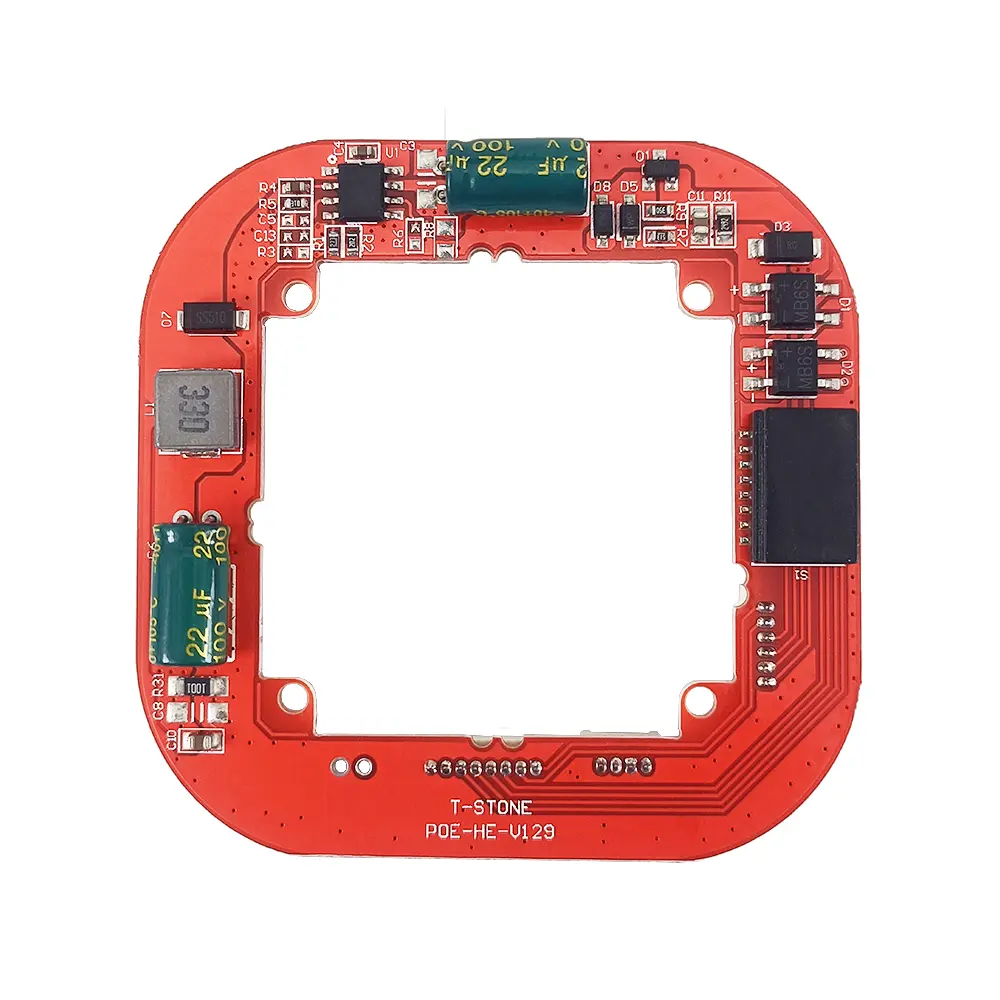

Size structure: 61.3*61.3*12.3mm, screw hole diameter: Φ=2.0mm*4, hole center distance: 34*34mm. PCB thickness: 1.6mm. Overall layout: irregular structure, hollow design, plate inner diameter and outer diameter difference: 10.5mm, maximum thickness: 12.3mm. The surface is sprayed with bright red oil. Module design: two-layer board double-sided design, the whole board less components, saving space, easy installation.

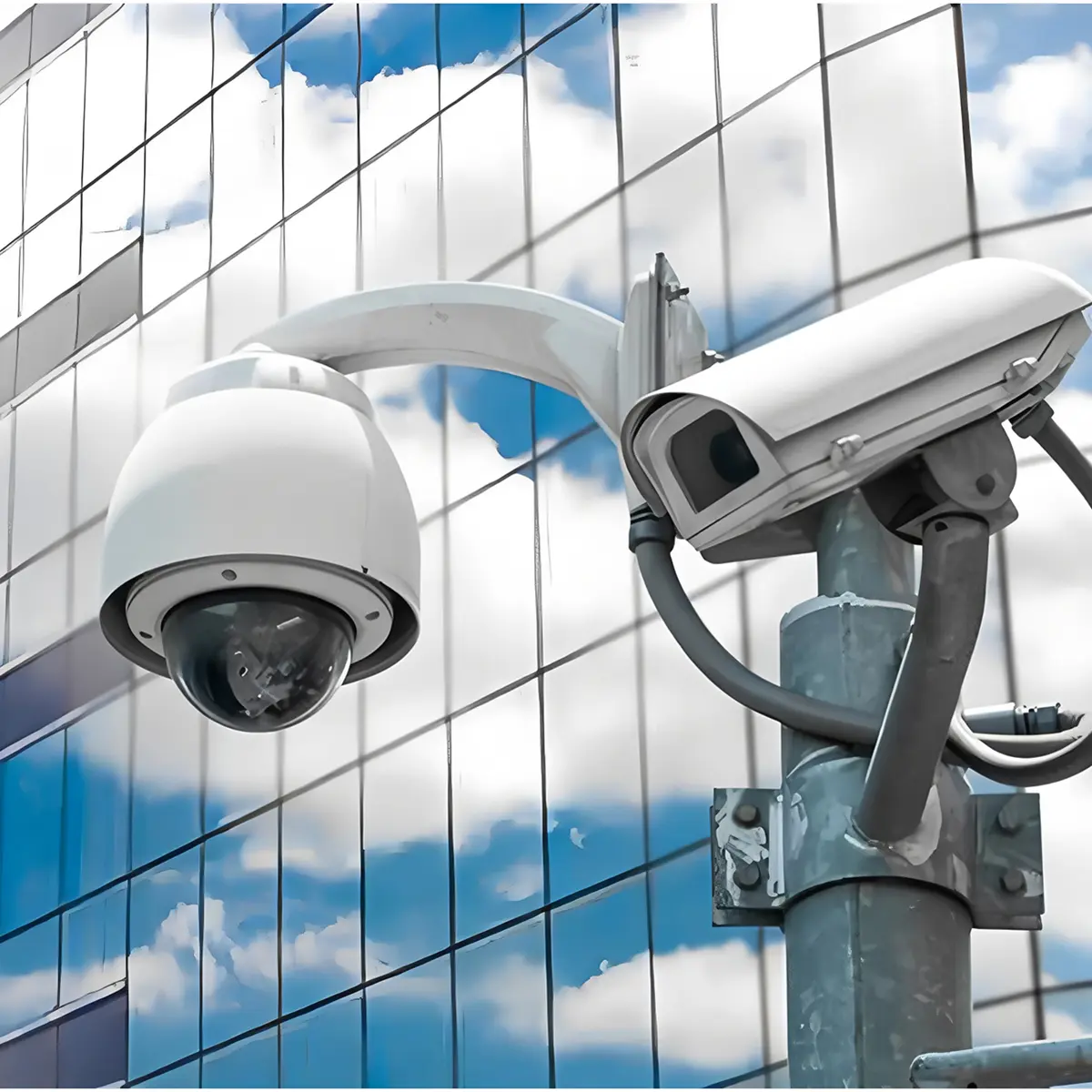

TSD-PD3862 is an active PoE module with a maximum output power of 18W. The module is mainly used in IPC equipment such as large hemisphere in the field of security monitoring. The module is designed with hollow-out, compatible with the user motherboard, easy to install, and can be applied in terminal equipment in many fields. TSD-PD3862 has been well received since its launch.

Users should pay attention when using: the TSD-PD3862 module does not have the isolation function, and the device should avoid common ground when installing and working, otherwise it will affect the normal operation of the device.

Package list
Items	Quantity
PoE PD Module	280 PCS
Operation Manual	/
