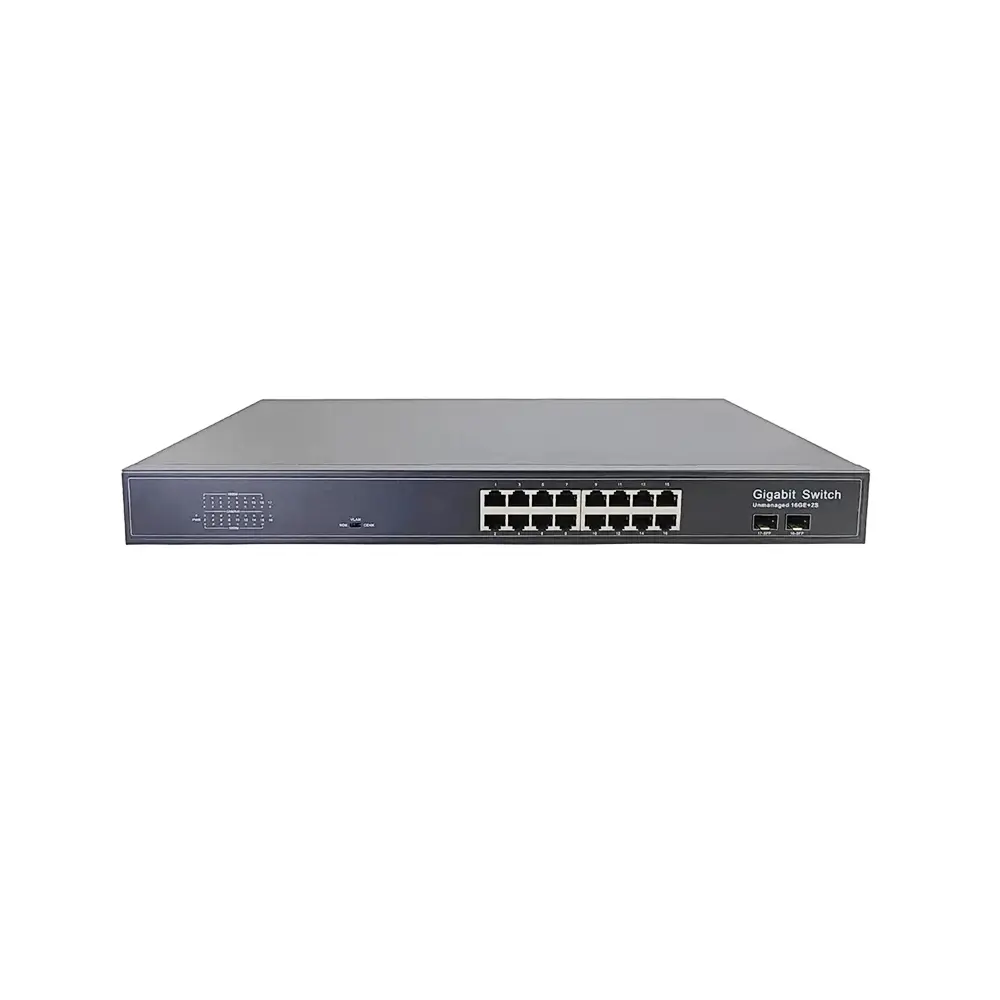

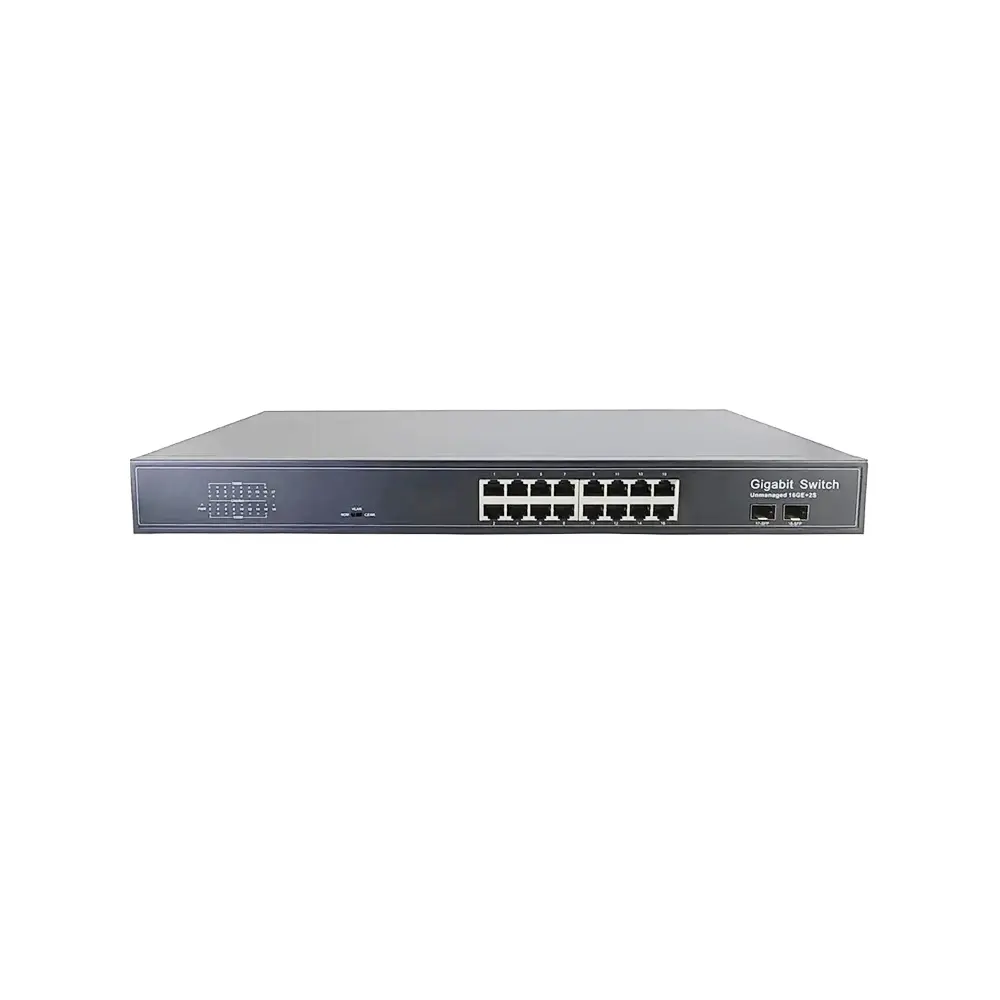

The PSE1600G2S complies with the IEEE 802.3af/at/bt international PoE standards, offering a maximum output power of 90W and adaptive transmission rates of 10/100/1000Mbps. Its SFP optical port supports dual-fiber or single-fiber SFP optical modules, enabling long-distance, lossless fiber transmission. It supports an AC100-240V 50/60Hz wide input voltage range, compatible with mains voltages and frequencies worldwide. With conversion efficiency exceeding 90%, PoE signal transmission distances exceed 100 meters. The PoE power supply utilizes an eight-core RJ1245+RJ3678 connector for full power supply.
● Input: AC 100-240V 50/60HZ
● Output: 48V PoE MAX 1.85A 90Watt
● Compliance: IEEE 802.3af/at/bt PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 6KV lightning surge resistance
● Conversion Efficiency: ≧90%
● Dual gigabit SFP uplink optical port, support single-fiber/dual-fiber optical module

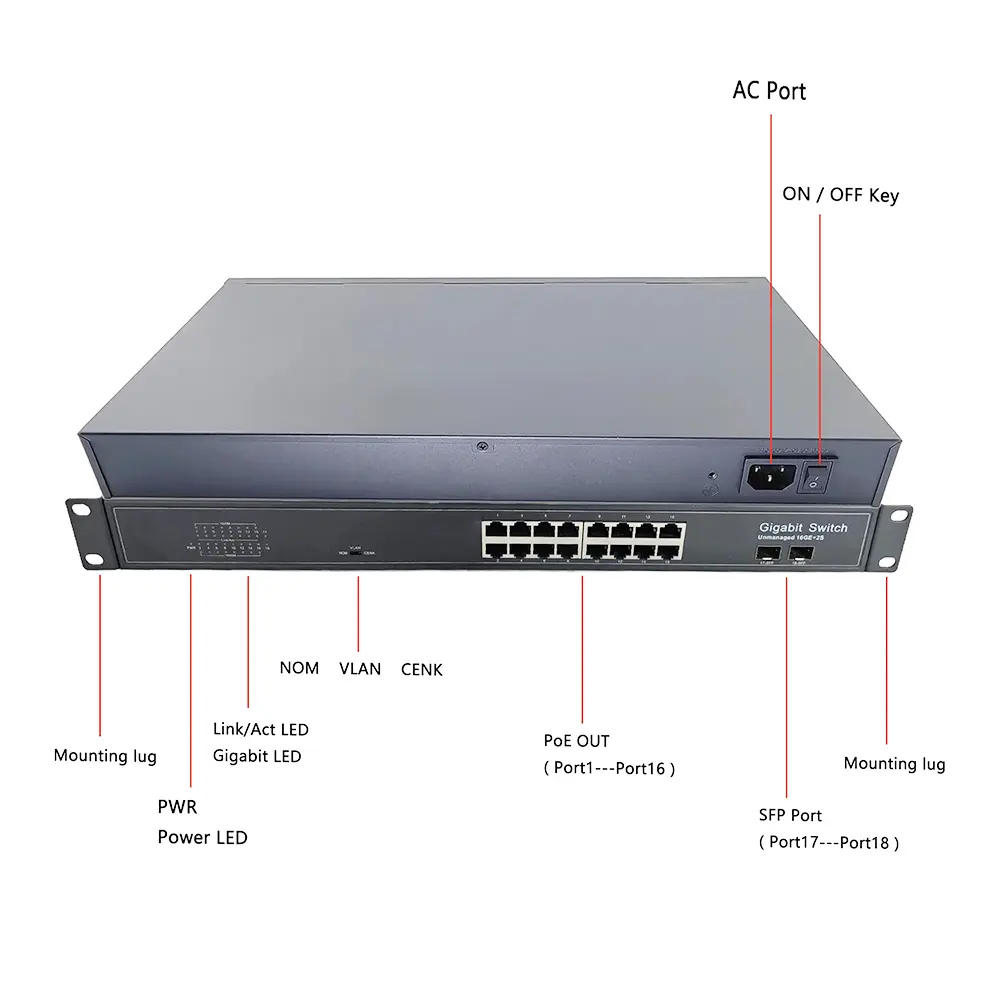

● Support multiple working modes (NOM / VLAN / CENK)

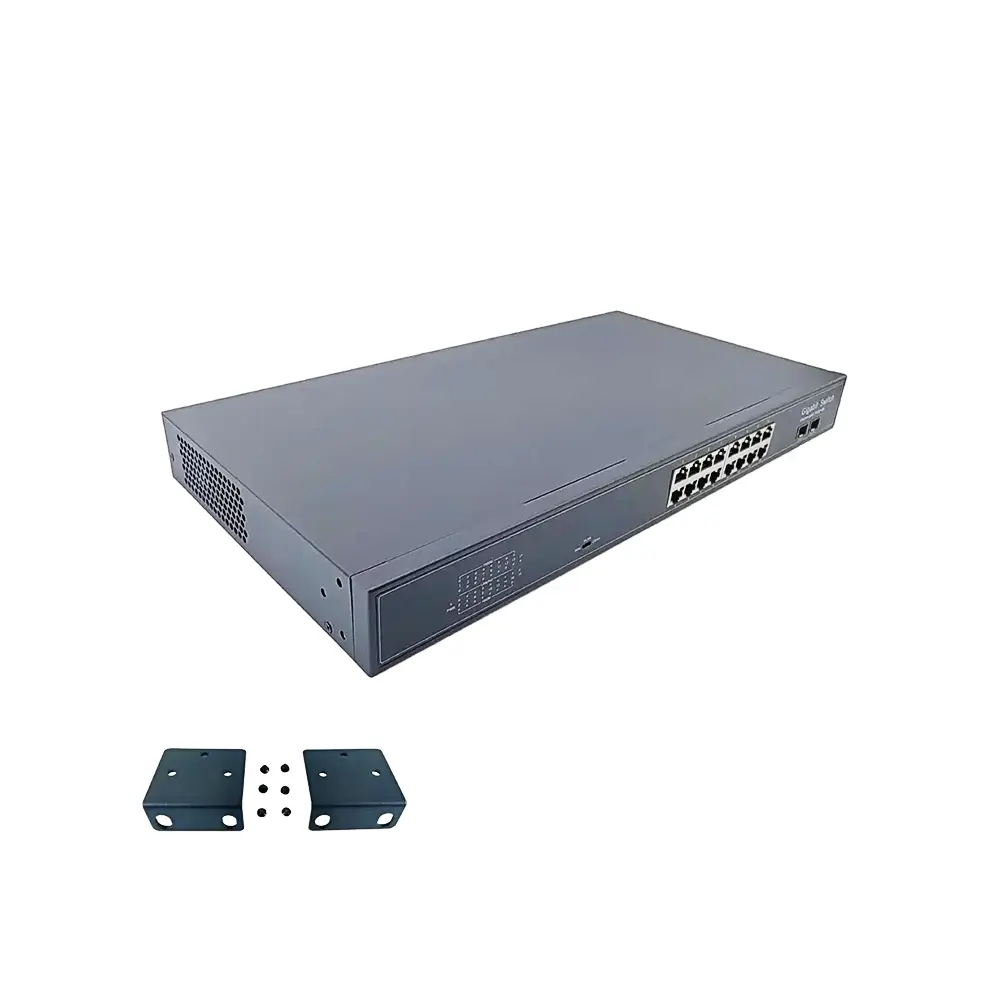

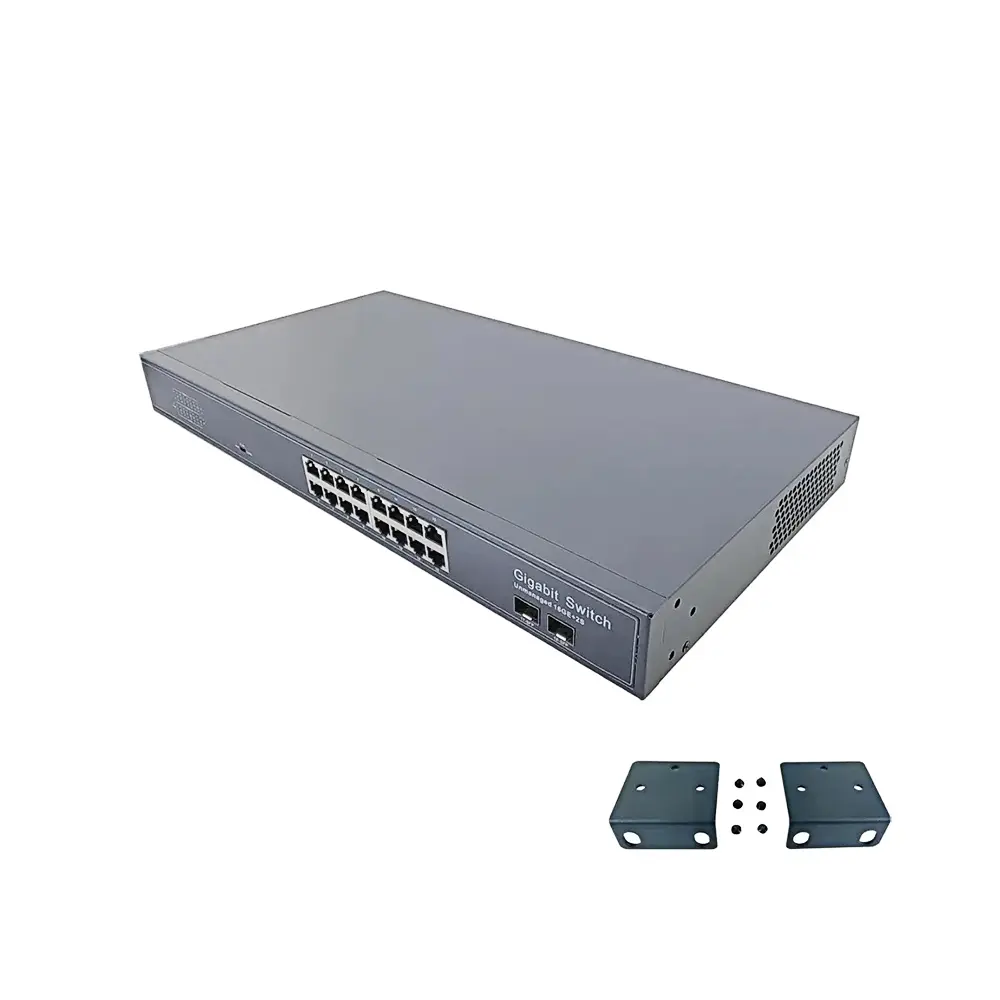

● Rack installation, desktop installation and other installation methods
● There are cooling meshs on both sides for easy heat dissipation
● Anti-electric shock and anti-electric leakage design, safer to use
● International brand original electronic components, excellent precision and high performance
● Pure copper pin connector to ensure safety performance
● High temperature resistant PCB environmental protection material, lead-free environmental protection process
● High temperature resistant flame retardant interface socket, reduce security risks
● Hard metal material shell, easy to enhance its installation robustness and heat dissipation
