The TSD - V101 complies with the IEEE 802.3af PoE standard protocol, with a maximum output power of 15W and a transmission rate of adaptive transmission at 10/100M. It supports wide-voltage input of DC 38-56V, with a default output voltage of DC 12V. Other voltages can be customized.
● Input: Wide-range PoE DC power supply (38V–56V)
● Output: DC 12V MAX1.3A + data
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements

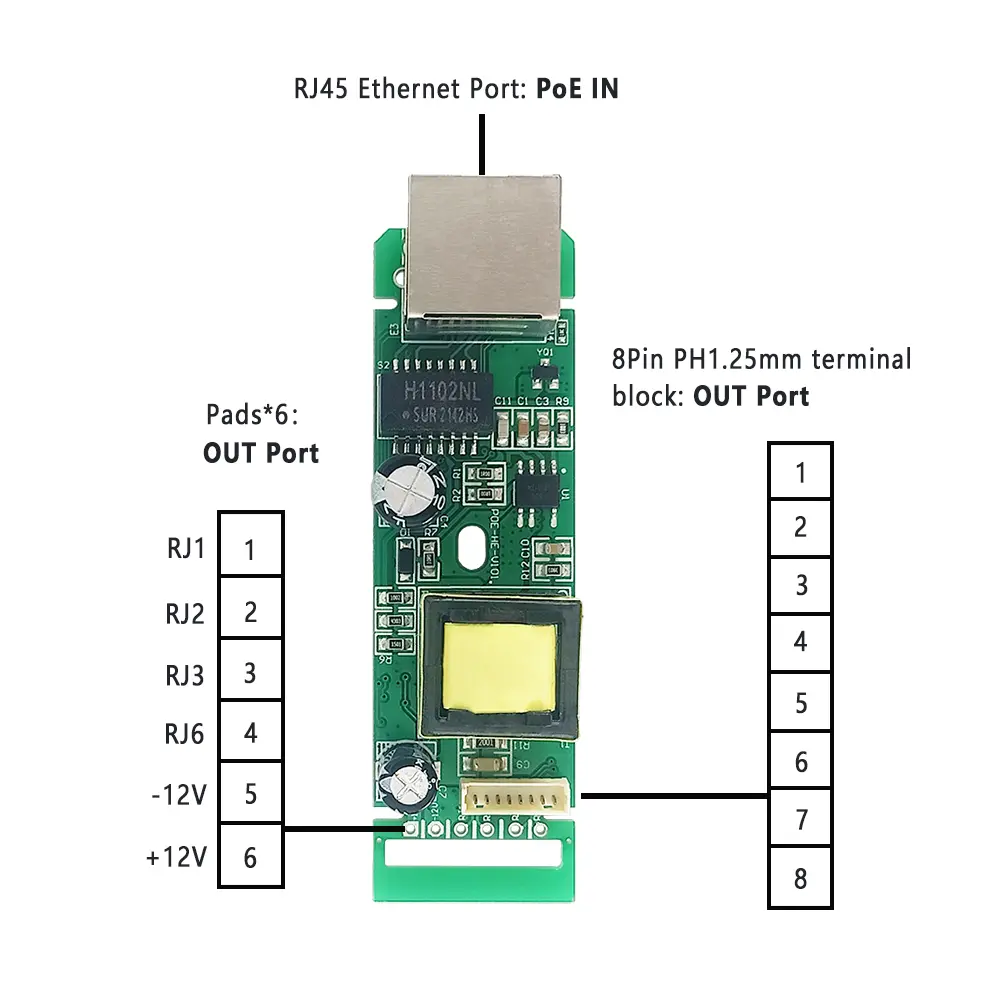

● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance
● Isolation protection

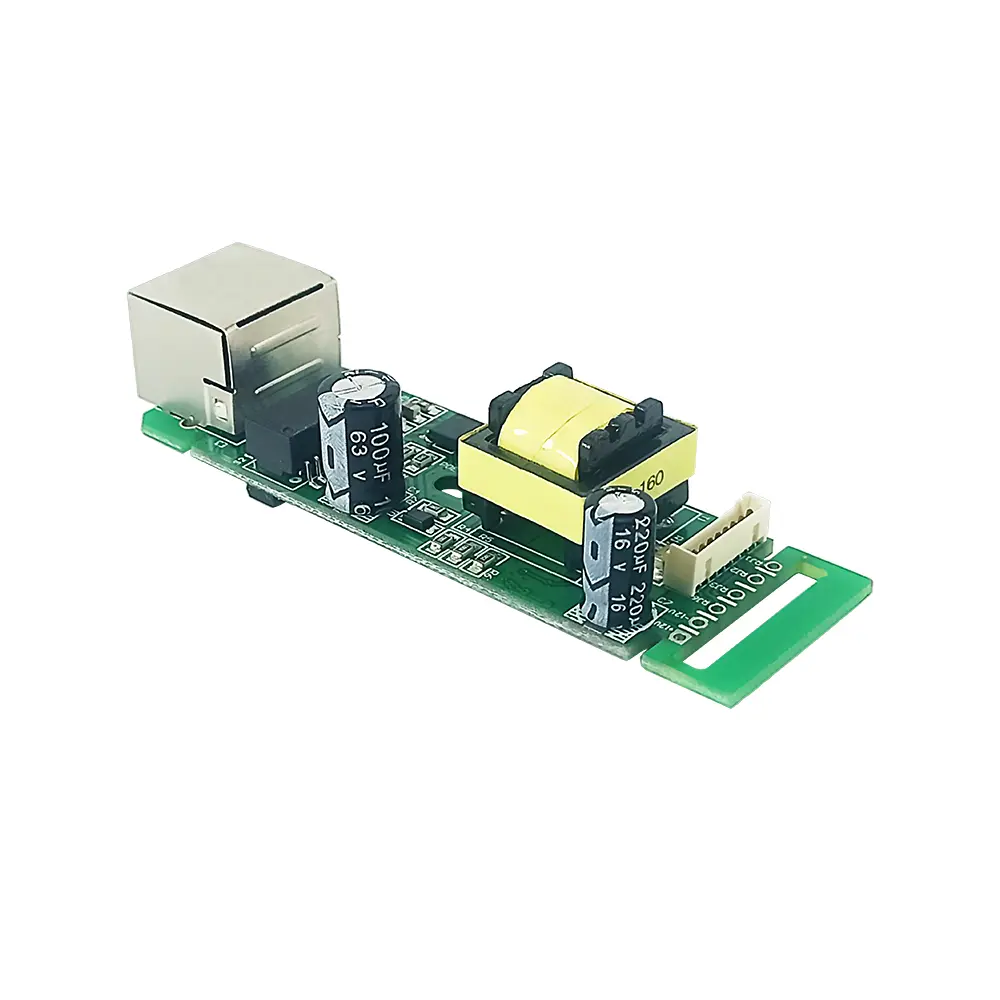

● Beige, high - temperature - resistant, flame - retardant material, vertical interface socket
● Equipped with high - precision electronic components from well - known brands, ensuring stable performance
● High - frequency PoE filter for 100M networks, enabling stable data transmission
● High - frequency low - impedance electrolytic capacitors effectively reduce high - frequency losses and heat generation in the circuit
● High - power, high - conductivity, low - impedance transistors with stable performance and low heat generation
● High - temperature - resistant PCB made of environmentally friendly materials

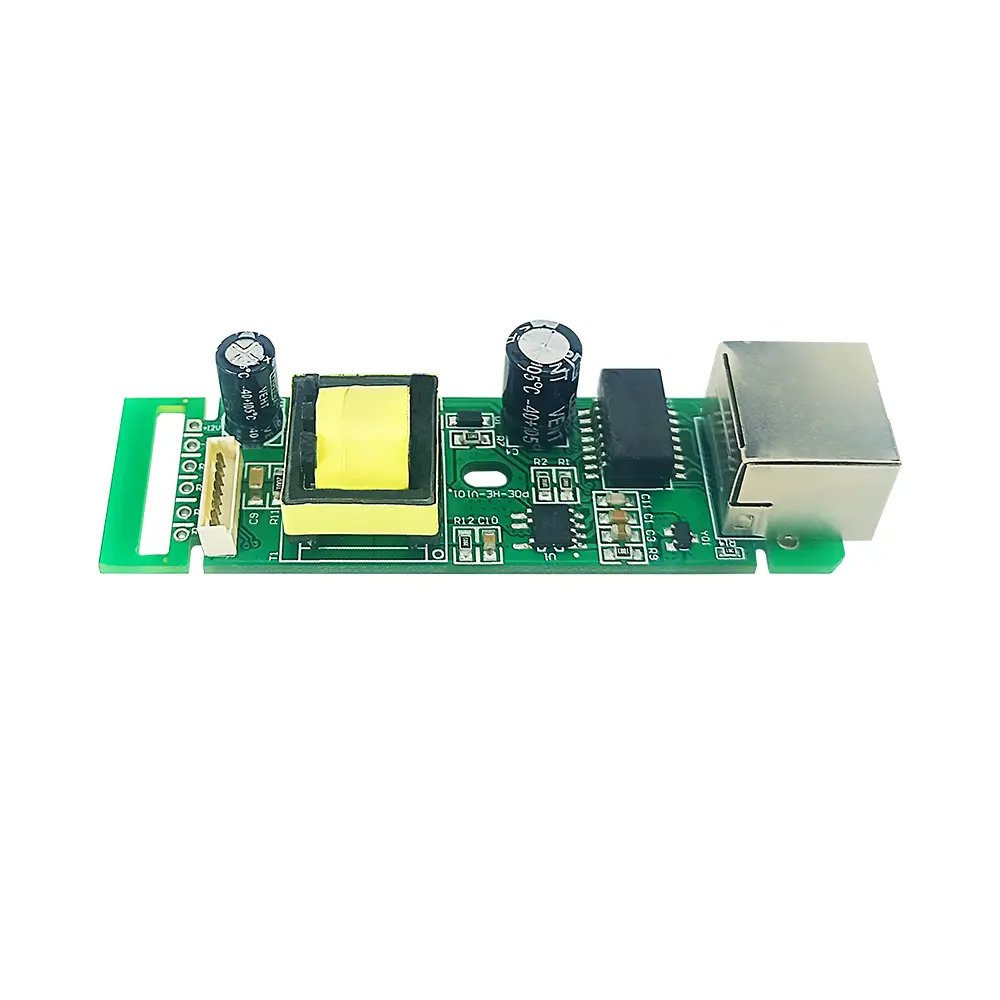

● With an EE13 skeleton isolation transformer to enhance anti - interference ability
● An 80mm connecting Wire is provided for convenient connection
