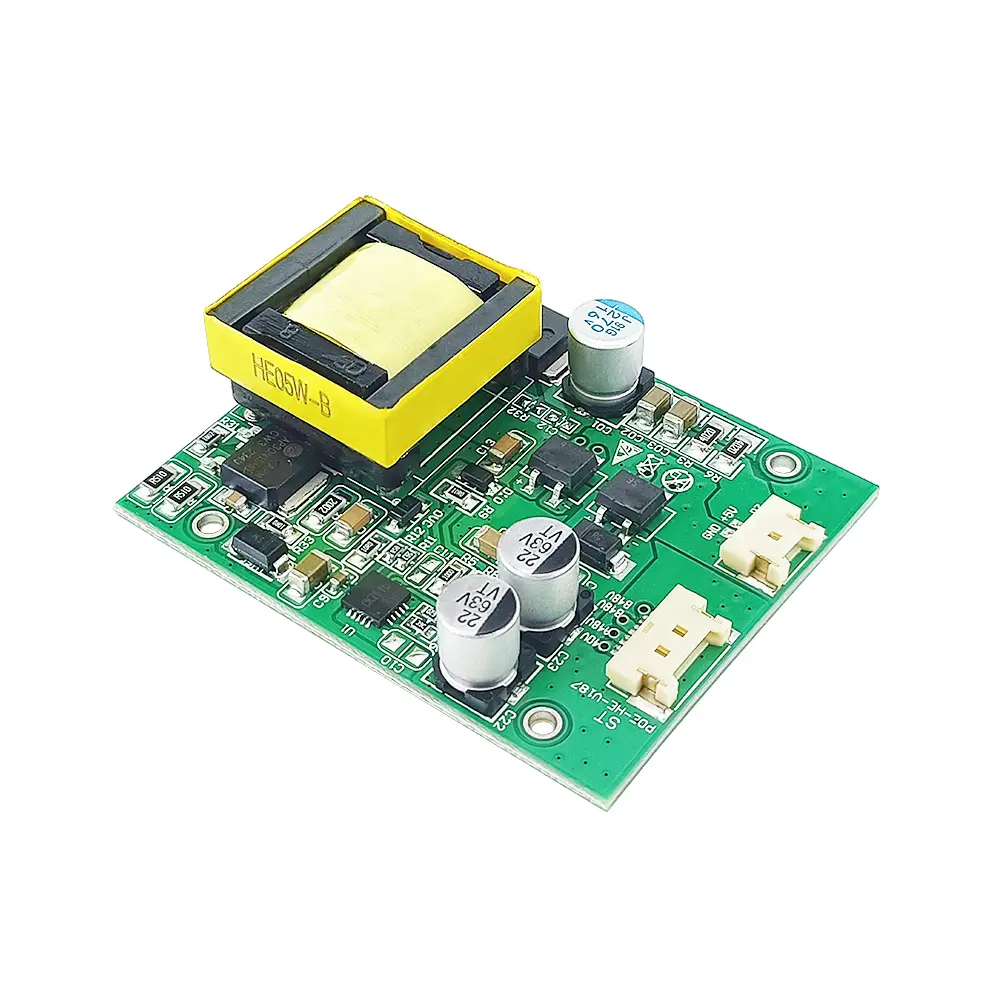

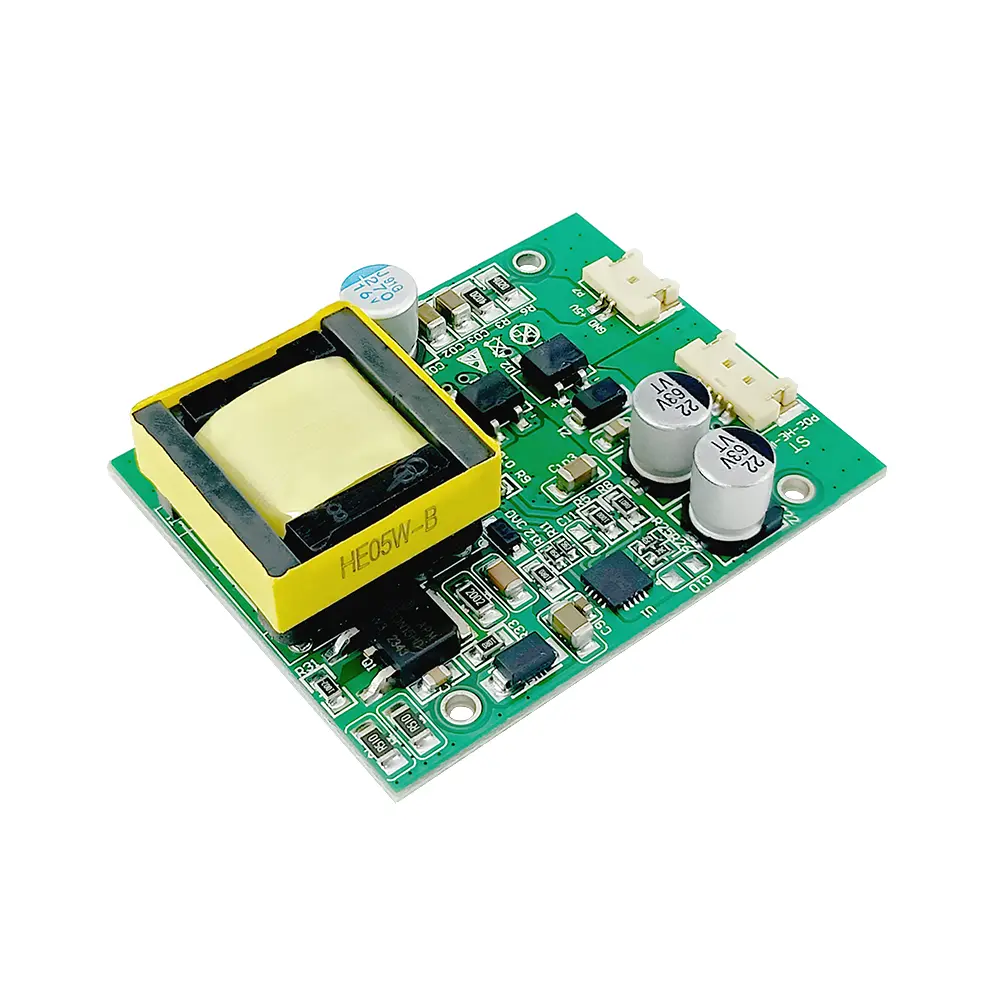

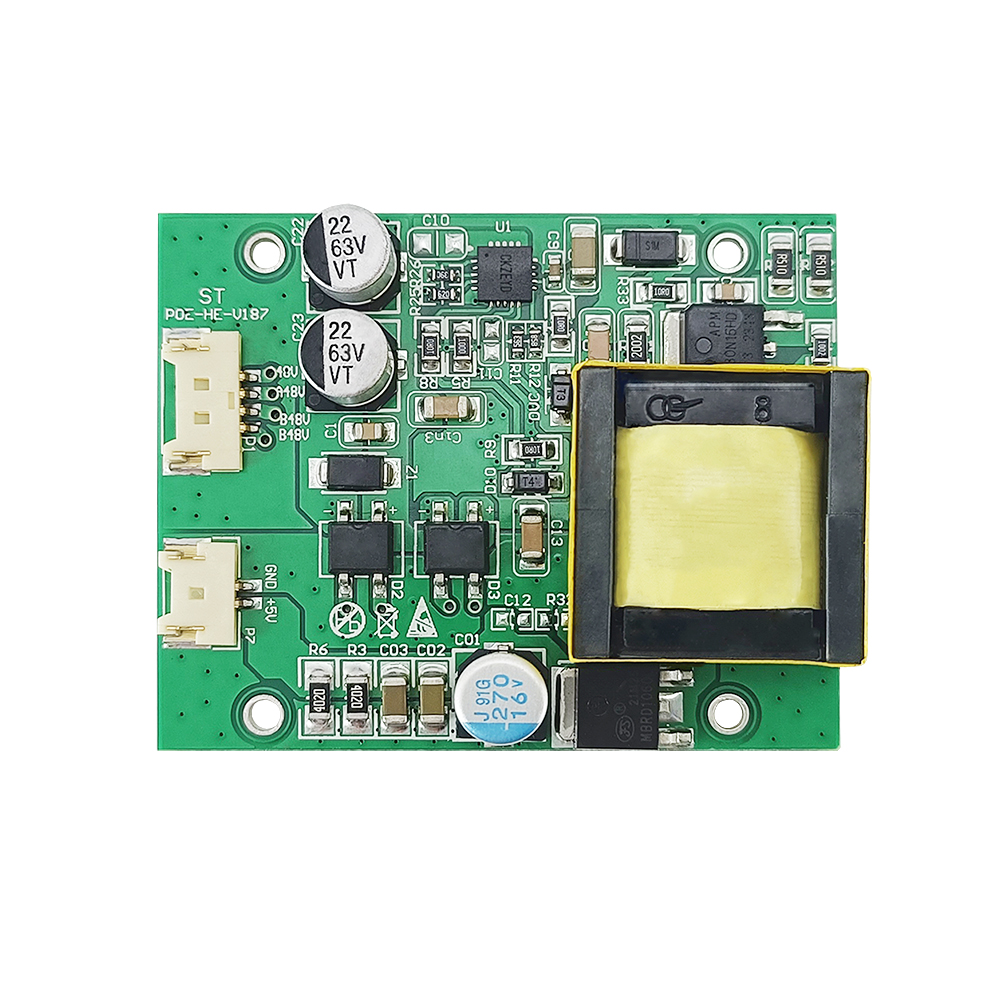

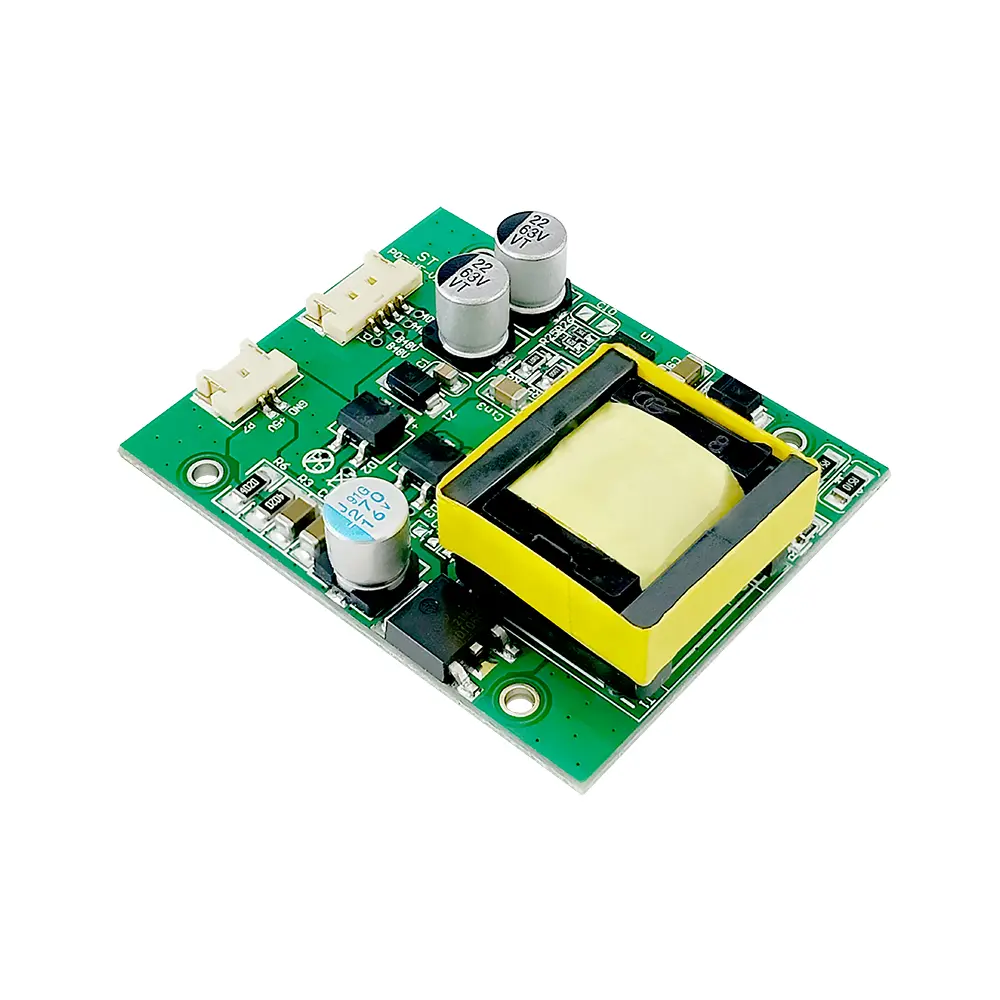

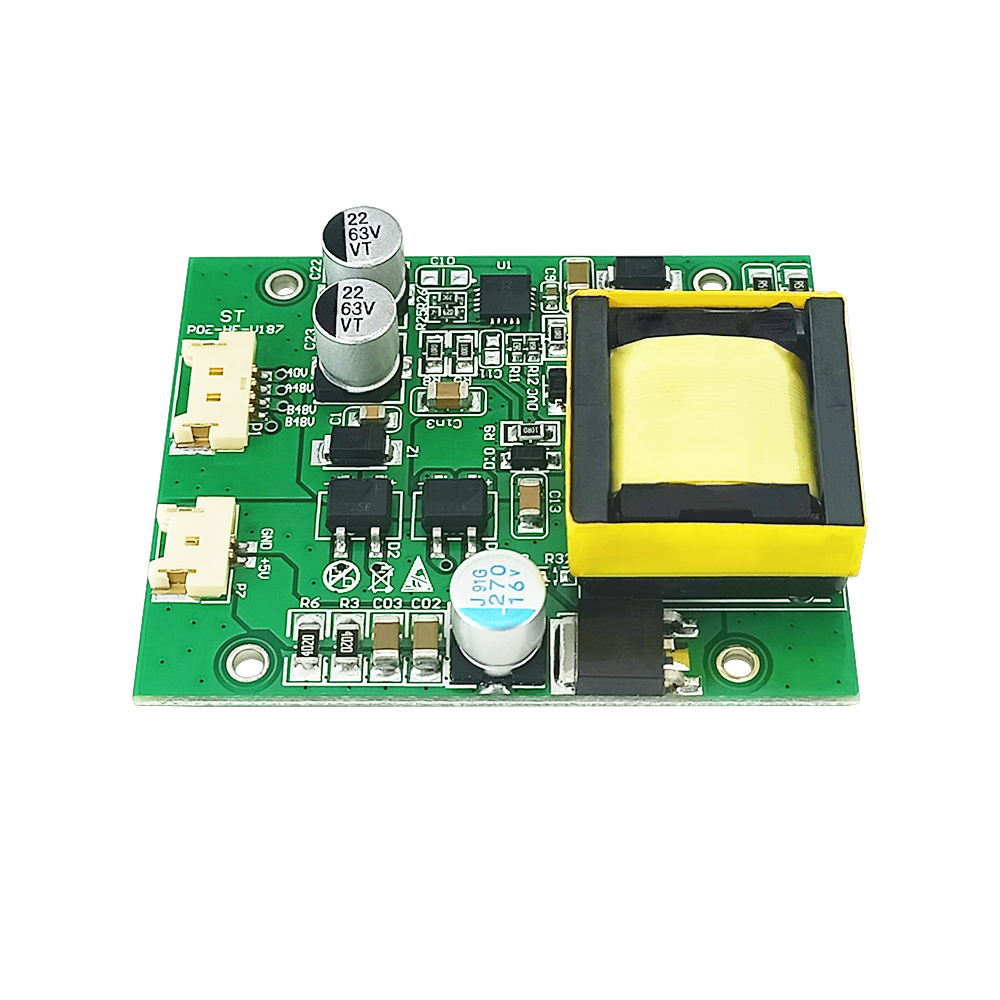

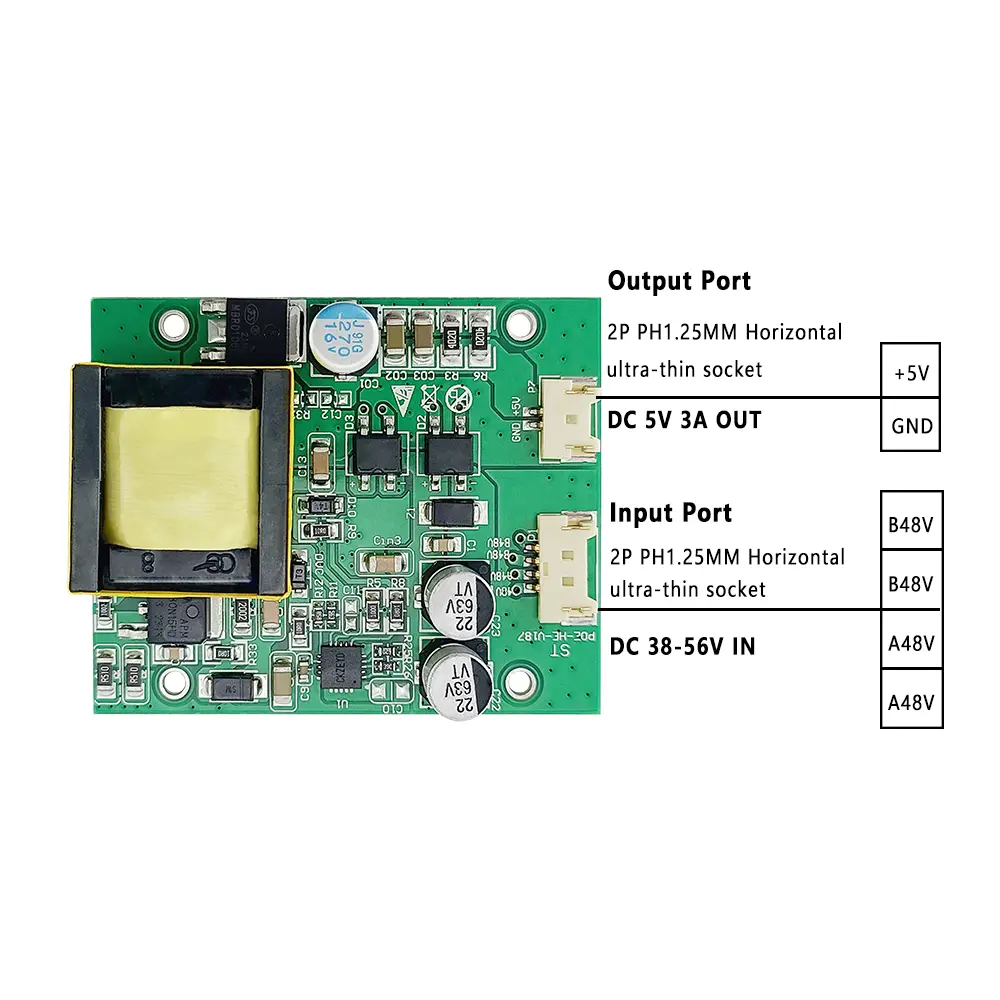

The TSD-V187 module accepts DC signals ranging from 38-56V (PoE signal) as input and outputs a DC 5V 3A signal, with a maximum output power of 15W. The module incorporates an isolation transformer, making it a PoE module with isolation functionality. Additionally, the module's circuitry includes features such as overcurrent protection, short-circuit protection, overheat protection, overvoltage protection, and 4KV surge protection.
● Input: Wide-range PoE DC power supply (38V–56V)
● Output: DC 5V MAX3A
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency Exceeds 85%
● Isolation protection

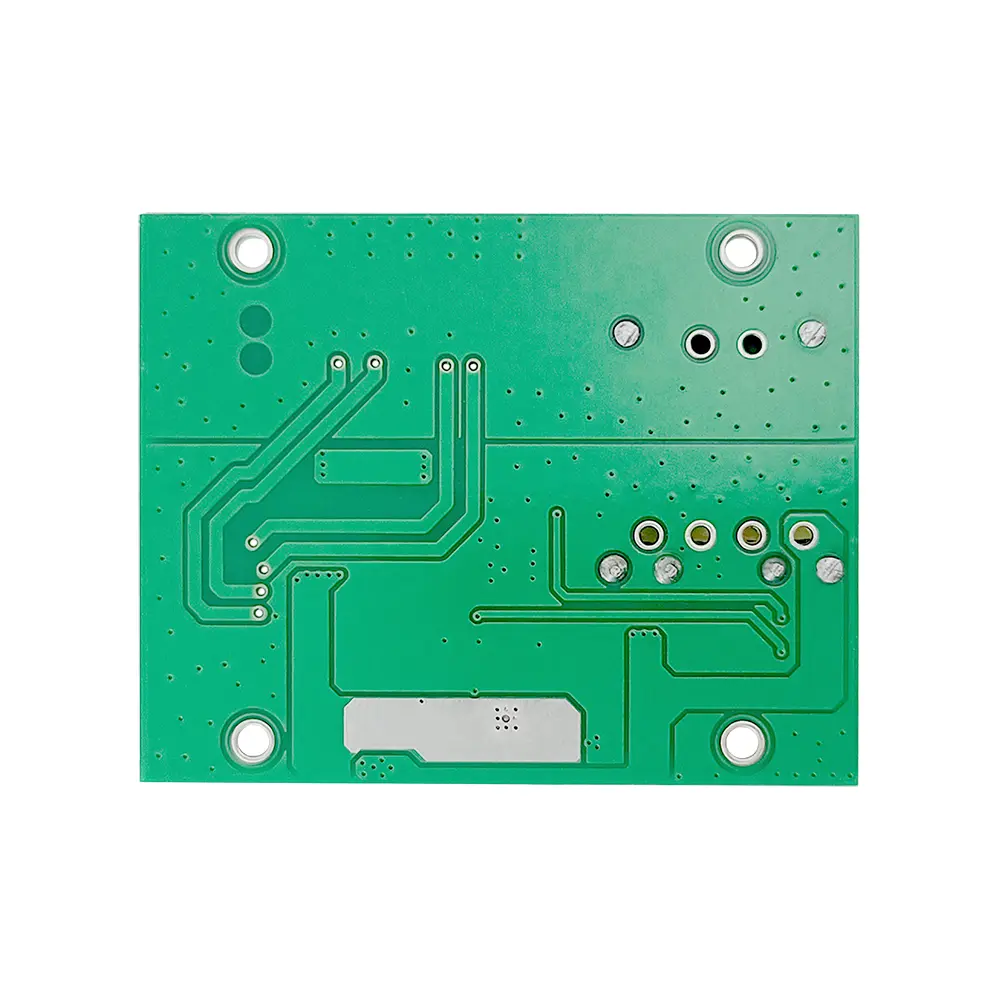

● Two-Layer Board, Single-Sided Design
● Beige High-Temperature-Resistant Flame-Retardant Material, Horizontal Ultra-Thin SMD Socket
● Solid SMD Capacitors for Long Lifespan and Stable Performance
● Pure Copper Thickened Core Transformer
● High - power, high - conductivity, low - impedance transistors with stable performance and low heat generation
● High - temperature - resistant PCB made of environmentally friendly materials
● High-Precision Electronic Components from Reputable Brands
● An 80mm connecting Wire is provided for convenient connection
