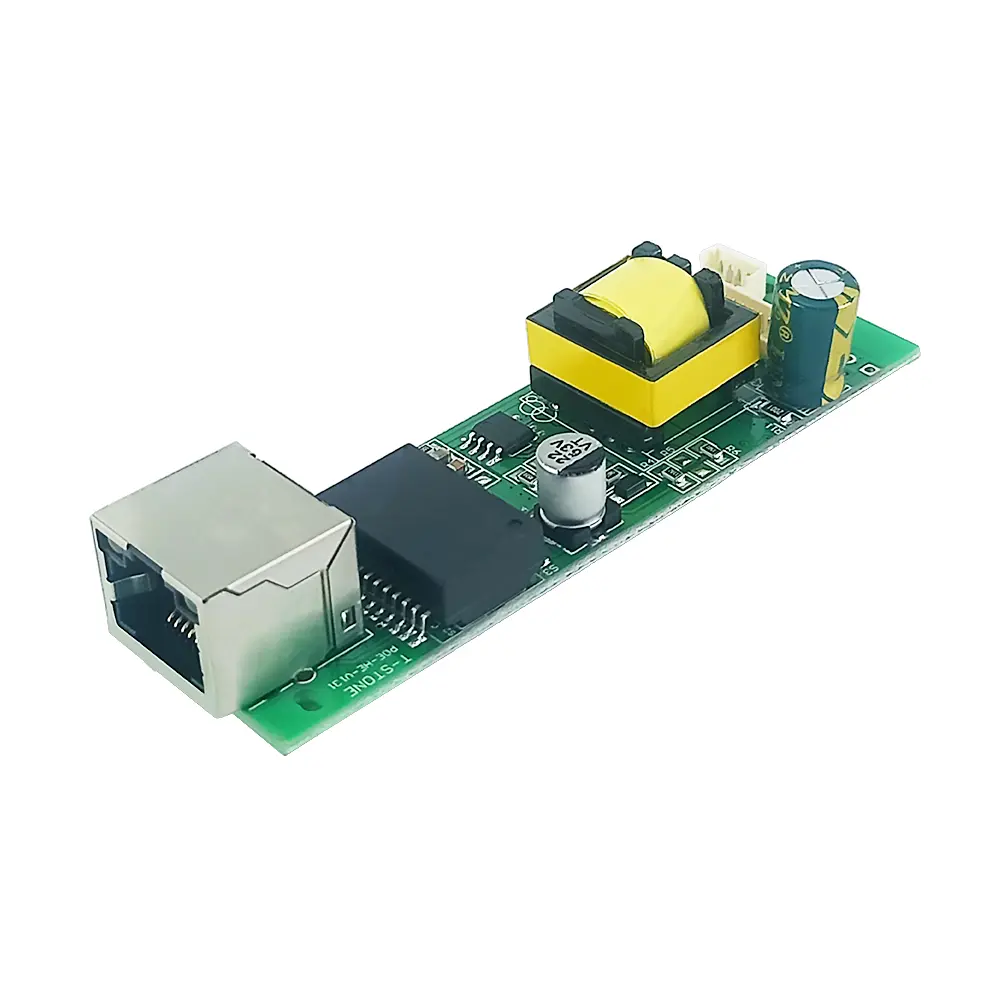

15W Gigabit Ethernet Module with PoE Port

Model: TSD-V131

Input: PoE DC power supply (38V–56V)
Output: DC 12V MAX1.3A 15W
PoE protocol: IEEE 802.3af
Transmission rate: 10/100/1000 Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/terminal block
Size: 80*23*17 mm (L*W*H)
Weight: N.W=21 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-V131 complies with the IEEE 802.3af PoE standard protocol and can provide DC power and data transmission for IP network devices such as audio broadcasting and security monitoring systems. Power transmission can be achieved through a single Ethernet cable, eliminating the need for additional cabling.

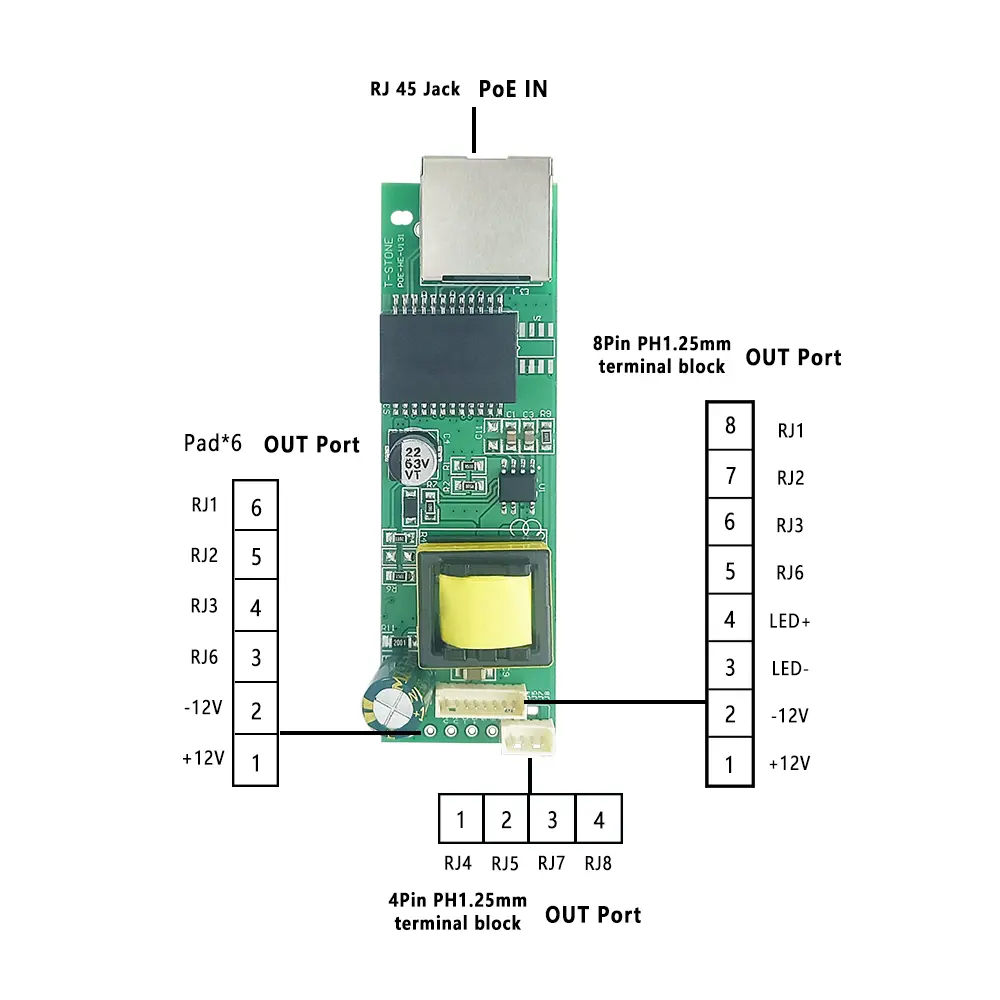

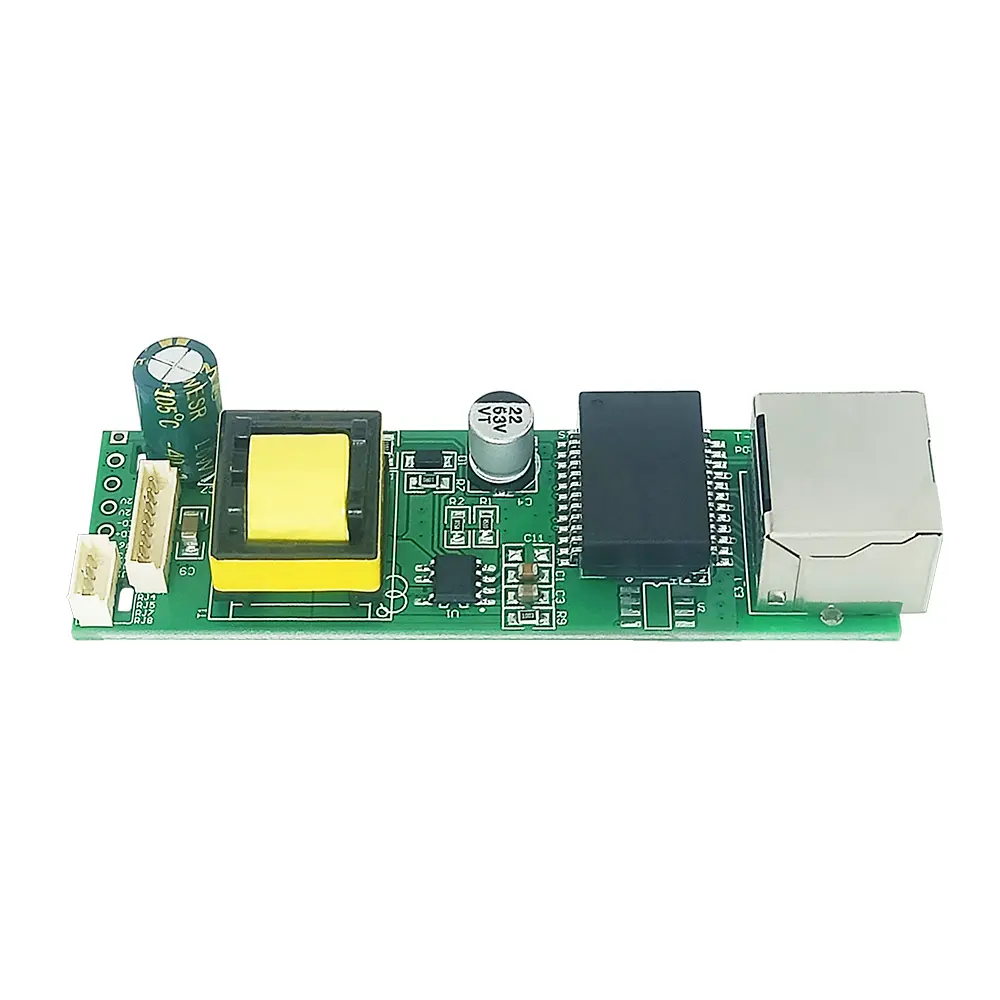

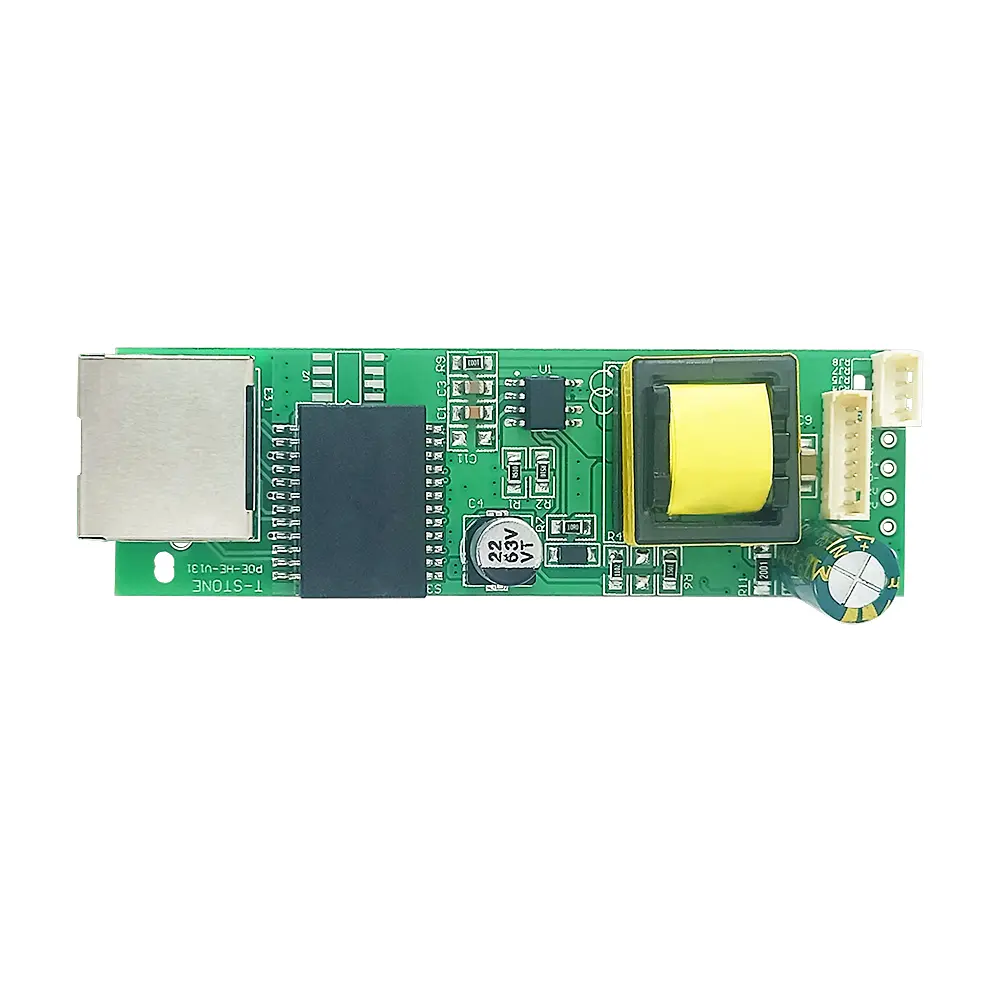

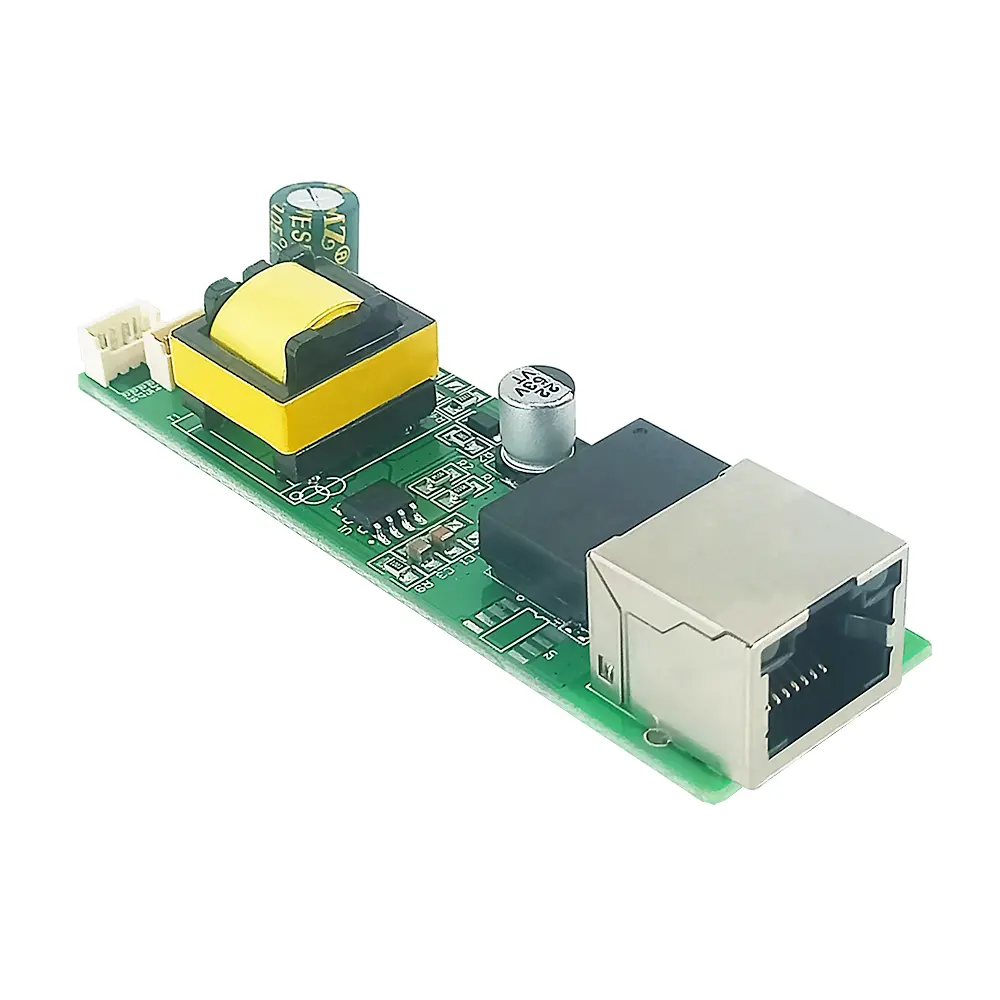

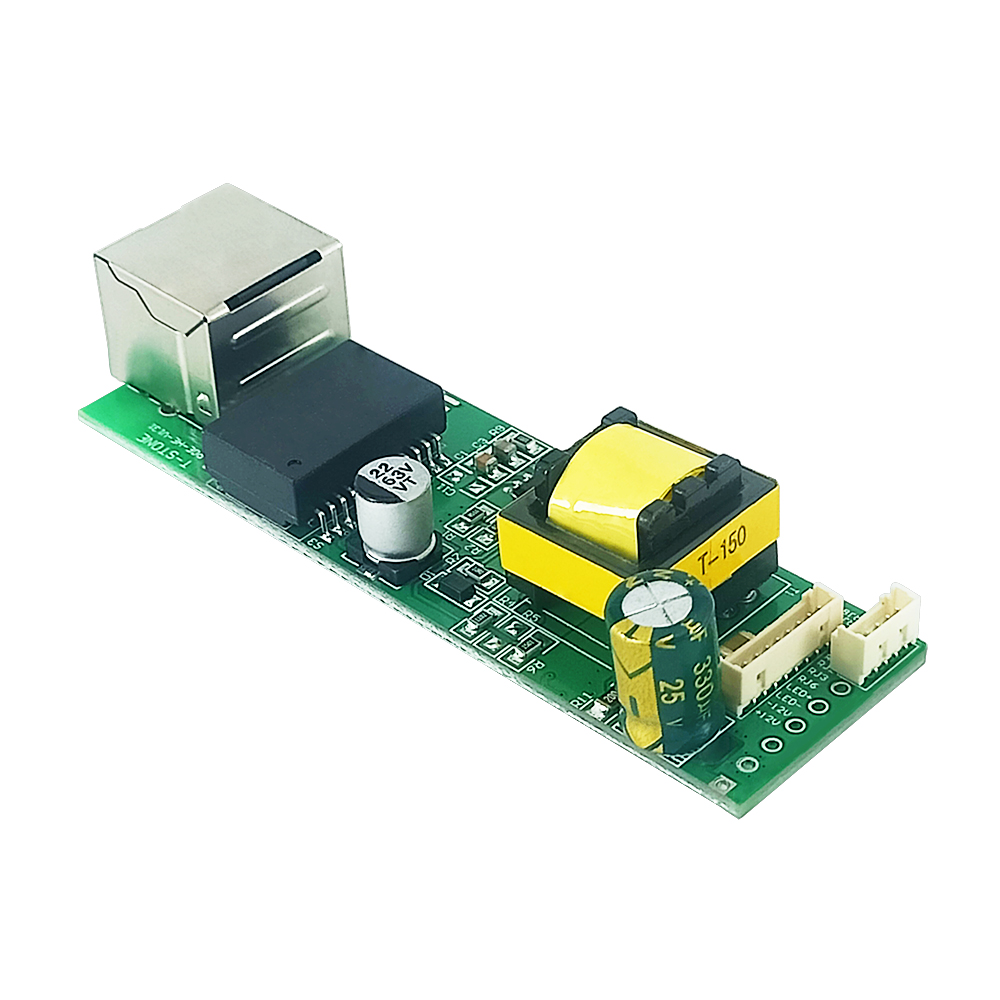

The TSD-V131 interface configuration is as follows:

RJ45 Ethernet port: Input DC38-56V PoE signal

8pin PH1.25 female connector: Output DC 12V 1.3A + data

4pin PH1.25 female connector: Gigabit expansion port, output data

Pads: Multiplexed output port, output data + DC 12V 1.3A;

The TSD-V131 module accepts a DC 38-56V PoE signal input and outputs a continuous and stable 12V 1.3A DC power, with a maximum output power of 15W.

The TSD-V131 EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standards and have obtained CE, FCC, RoHS and other certifications. The module uses a skeleton EE13 isolation transformer to avoid faults such as leakage and short circuit. The circuit has overheat protection, overvoltage protection, overload protection, short circuit protection and other protection functions. The product is sold in many countries and regions overseas.

The TSD-V131 has a maximum output power of 15W and complies with the IEEE802.3af PoE standard protocol. It supports 10/100/1000M adaptive transmission. It accepts a wide - range DC input of 38 - 56V. The default output voltage is DC 12V, and other voltages can be customized upon request.

● Input: PoE wide - voltage DC 38 - 56V

● Output: Data + voltage, DC 12V, maximum 1.3A

● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Compliance: Meets the requirements of IEC 61000 - 4 - 2/3/4/5/6 standards

● PoE Compatibility: Fully compatible with RJ12 + RJ36 - / RJ45 + RJ78 - pin configurations

● Transmission Rate: 10/100/1000 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Isolation Transformer: EE13 bobbin isolated transformer to enhance anti-interface ability

● Material and Interface: Beige, high - temperature - resistant, flame - retardant material; vertical interface socket

● Electronic Components: Original high - precision electronic components from well - known brands, ensuring stable performance

● Gigabit High - frequency PoE Filter: Ensures efficient data transmission

● High - frequency low - impedance electrolytic capacitors effectively reduce high - frequency losses and heat generation in the circuit

● Electrolytic Capacitors: High - frequency, low - resistance electrolytic capacitors to effectively reduce high - frequency losses and heat generation in the circuit

● High - temperature - resistant PCB made of environmentally friendly materials

● Connection Wire: 80mm connection wire for convenient connection

Product parameter table
Product Name	15W Gigabit Ethernet Module with PoE Port
Product Model	TSD-V131
PoE Standard	IEEE802.3af
Input Voltage	DC 38-56V
Output	DC 12V MAX1.3A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100/1000 Mbps Auto-Negotiation
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (RJ45 Jack): PoE 38V~56V IN Output Port (8Pin PH1.25mm terminal block): Data +DC12V OUT Output Port (4Pin PH1.25mm terminal block): Data OUT Output Port (Pads): Data +DC 12V OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 21 g
Dimension	802317 mm (LWH)
Package	Anti-static pearl cotton

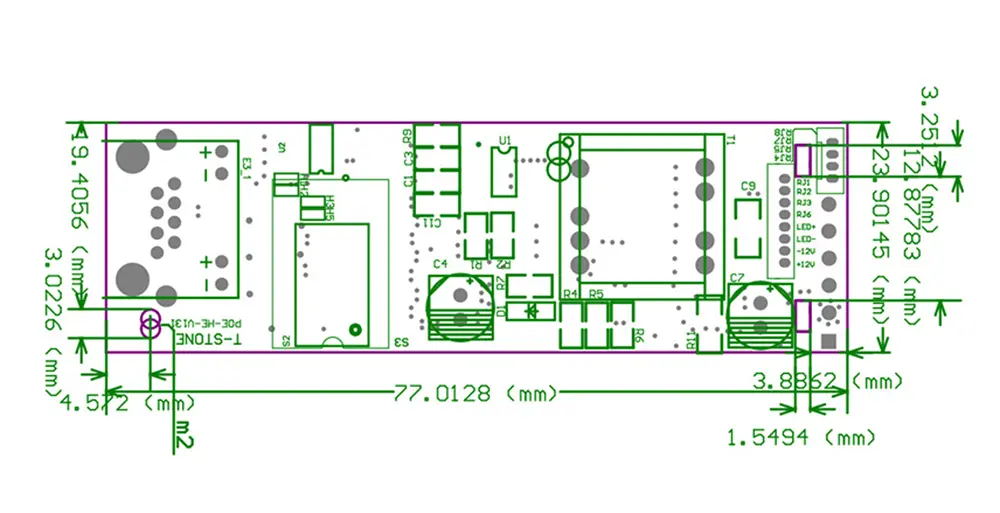

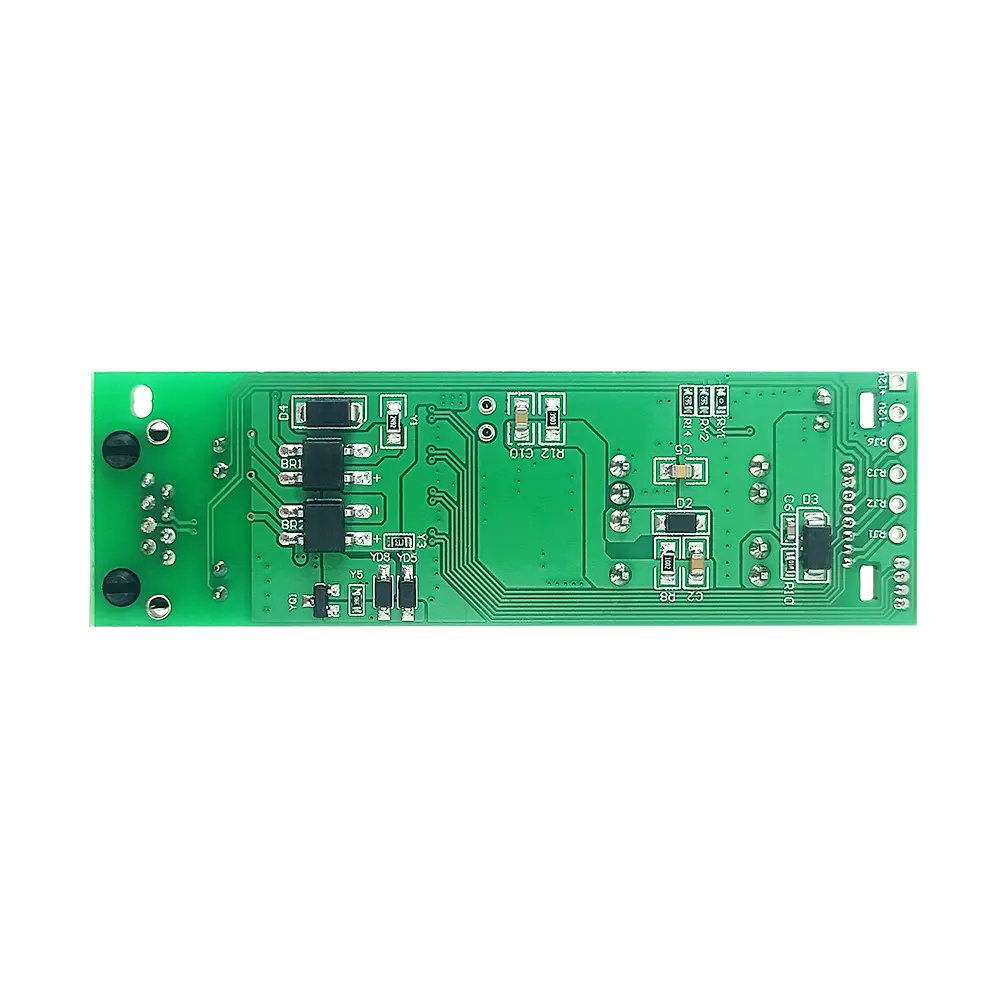

Dimension and structure: 80 * 23 * 17 mm.PCB layout: It features a square structure with a double - layer and double - sided design, which helps reduce signal interference and improve signal integrity. Solder mask color: glossy green oil.PCB thickness: 1.6 mm, and the maximum thickness of the module is 17 mm.

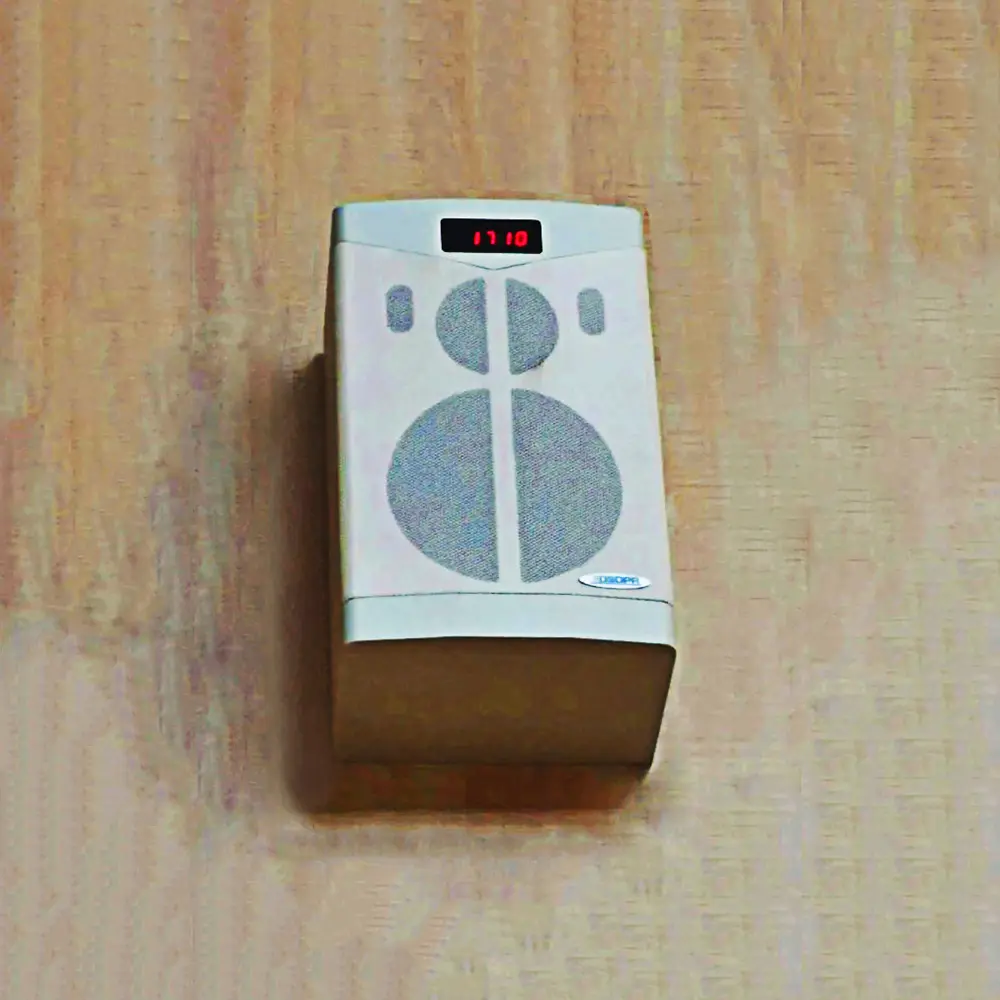

The TSD - V131 module is mainly used in IP network devices, such as wireless bridges, gateways, routers, and IP speakers. When an IP device is equipped with the TSD - V131 module, it gains PoE functionality, enabling the simultaneous transmission of network data and power through an Ethernet cable.

The module is small, lightweight, and easy to install. When integrated into IP network devices, it can effectively enhance the safety and management efficiency of the devices. Thanks to its stable operation, excellent performance, and flexible deployment, the TSD - V131 module has received unanimous praise from equipment manufacturers and end - users alike.

Package list
Items	Quantity
V131 PoE module	500 PCS
Operation Manual	/
