15W 100Mbps Isolated PoE module

Model: TSD-V112

Input: PoE DC power supply (38V–56V)
Output: DC 12V MAX1.3A 15W
PoE protocol: IEEE 802.3af
Transmission rate: 10/100Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/8P terminal block
Size: 43.5*41*17 mm (L*W*H)
Weight: N.W=18 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

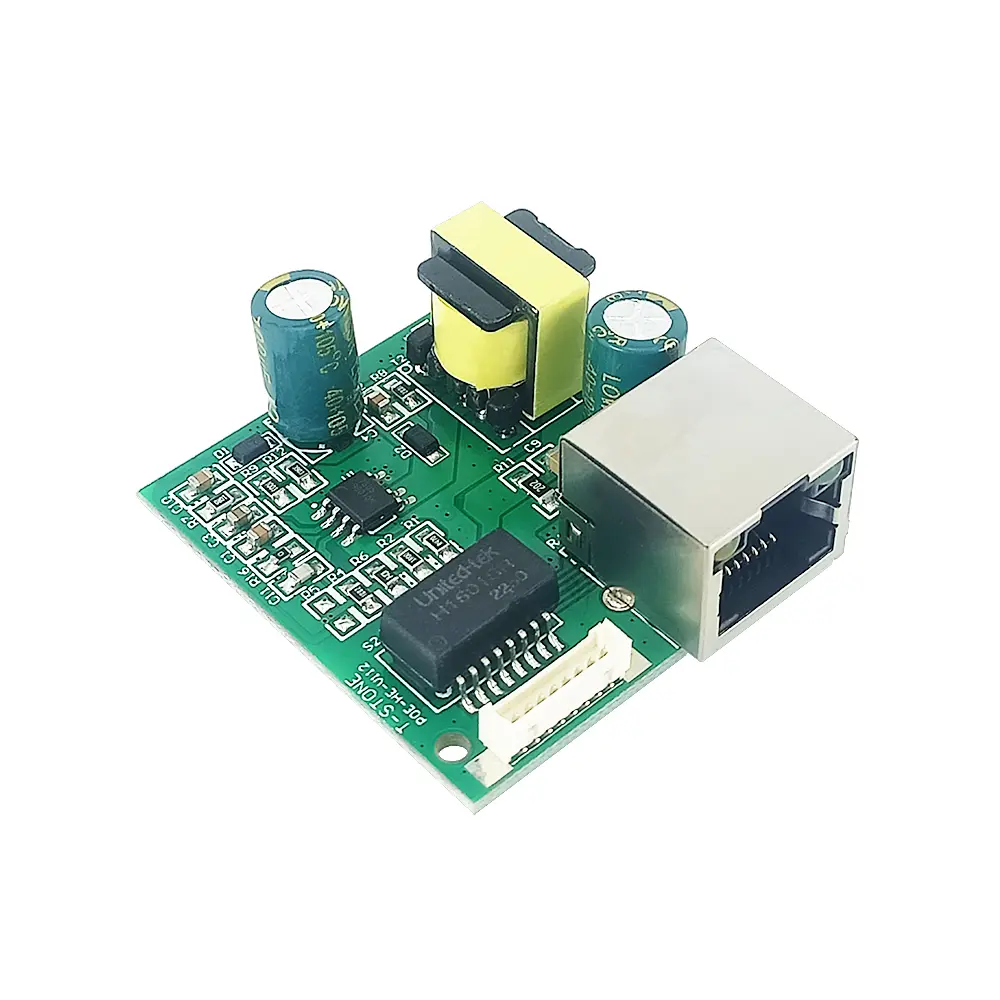

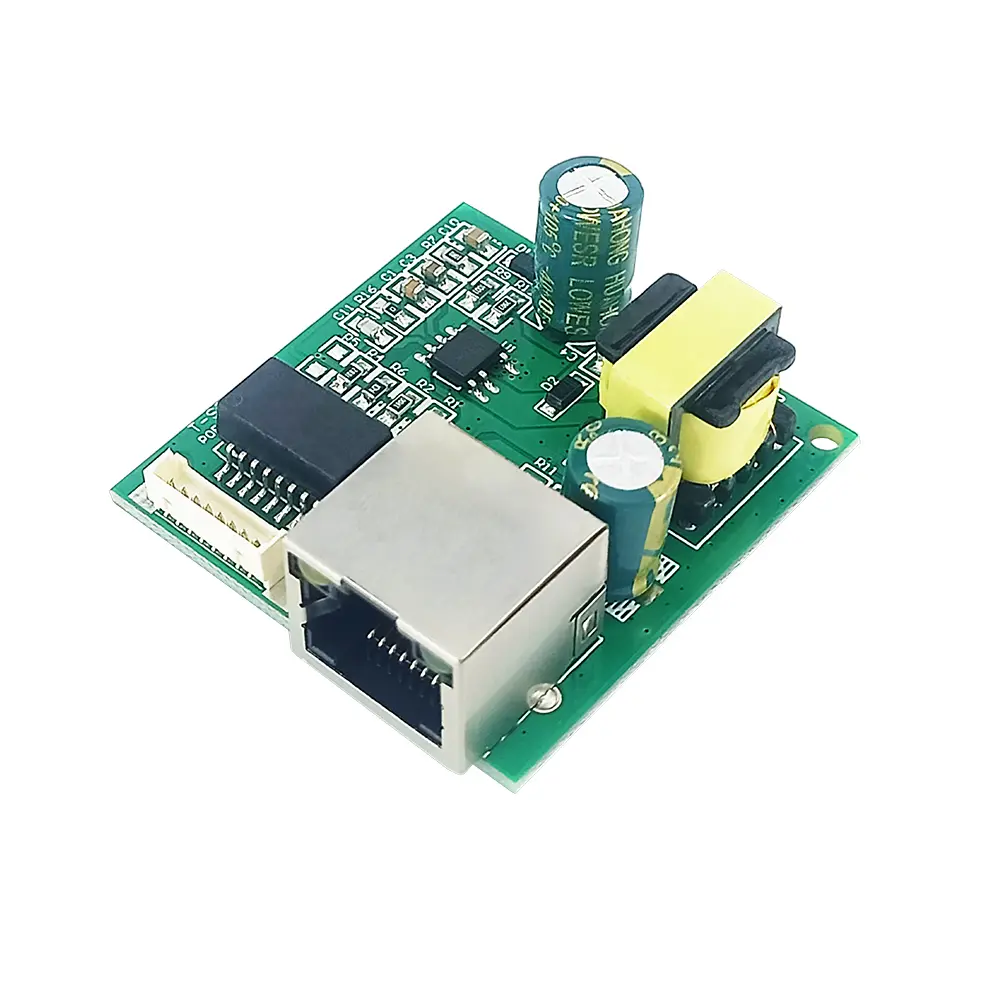

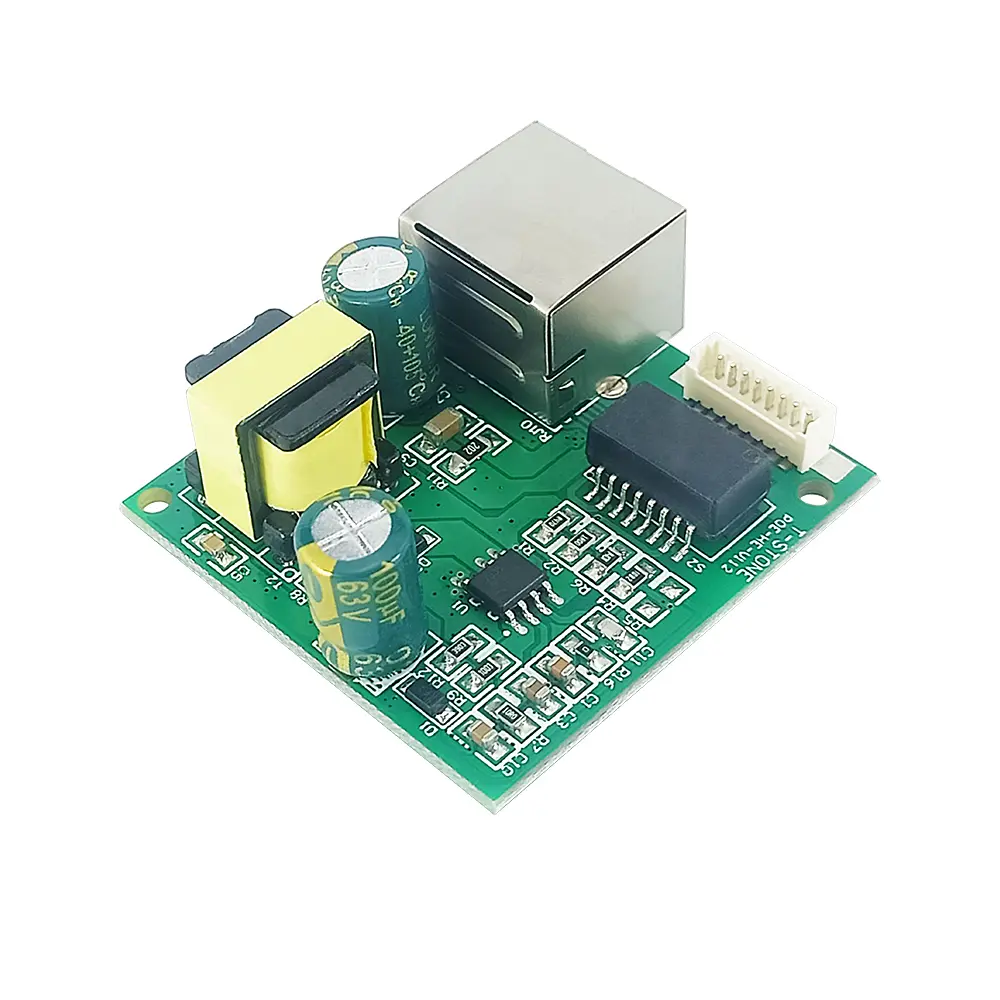

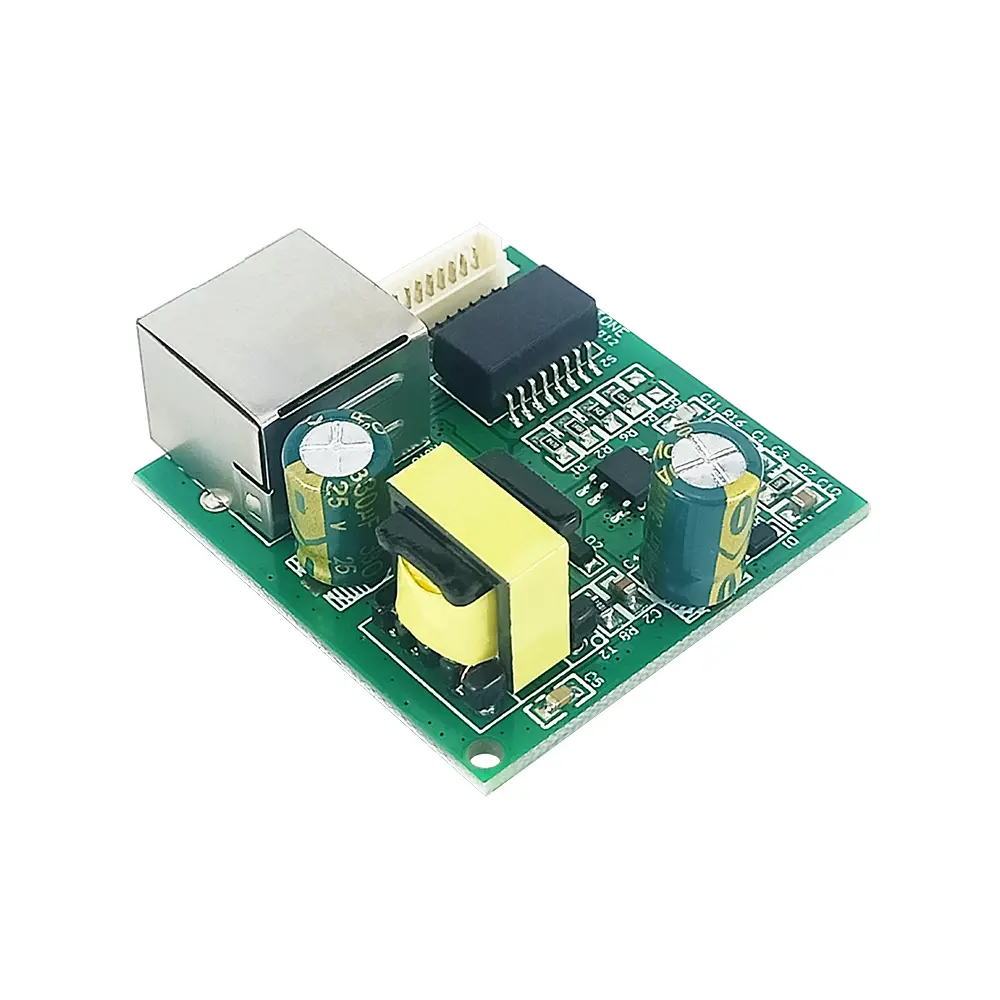

The TSD-V112 module complies with the international IEEE802.3af PoE standard protocol and has a maximum output power of 15W. It is a PD module that can provide PoE power supply support for IP devices such as wireless APs, cameras and bridges. The TSD-V112 receives the PoE signal from the PSE end. After handshake recognition and detection, it can safely and stably provide 12V 1.3A DC power supply for terminal devices.

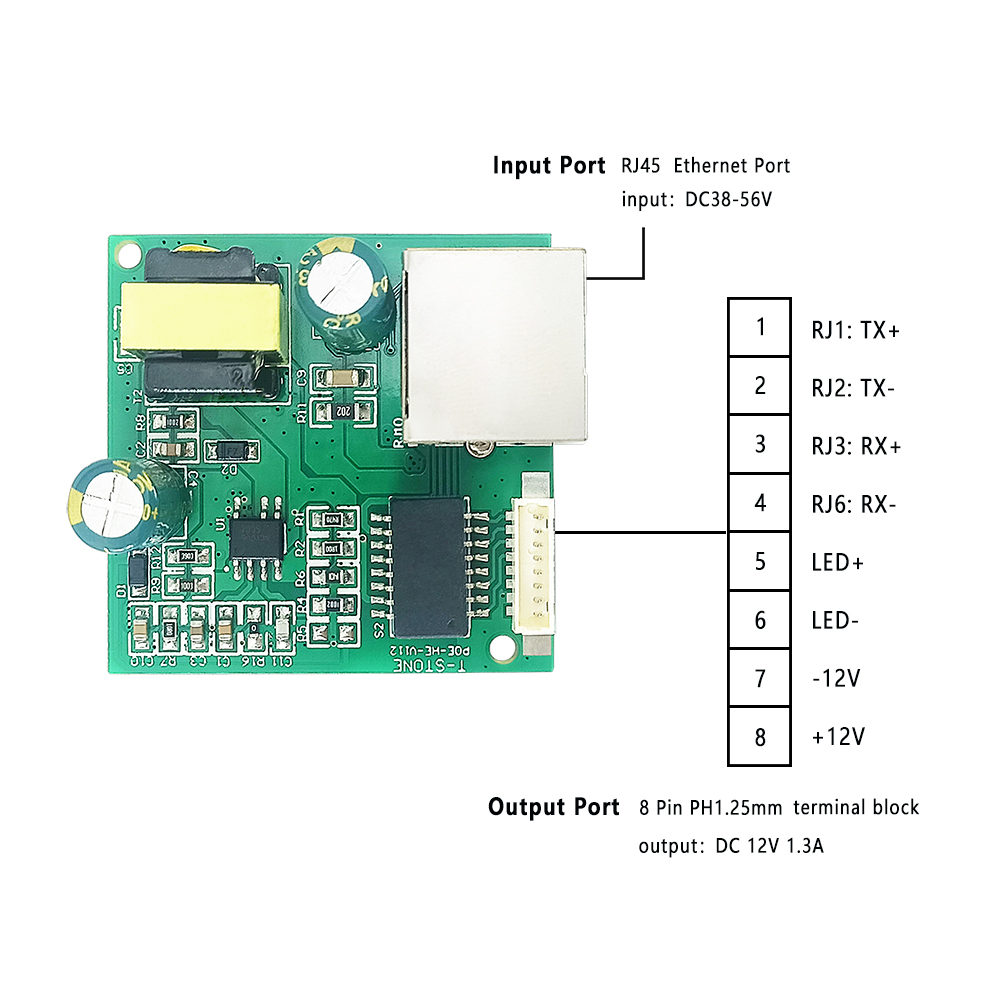

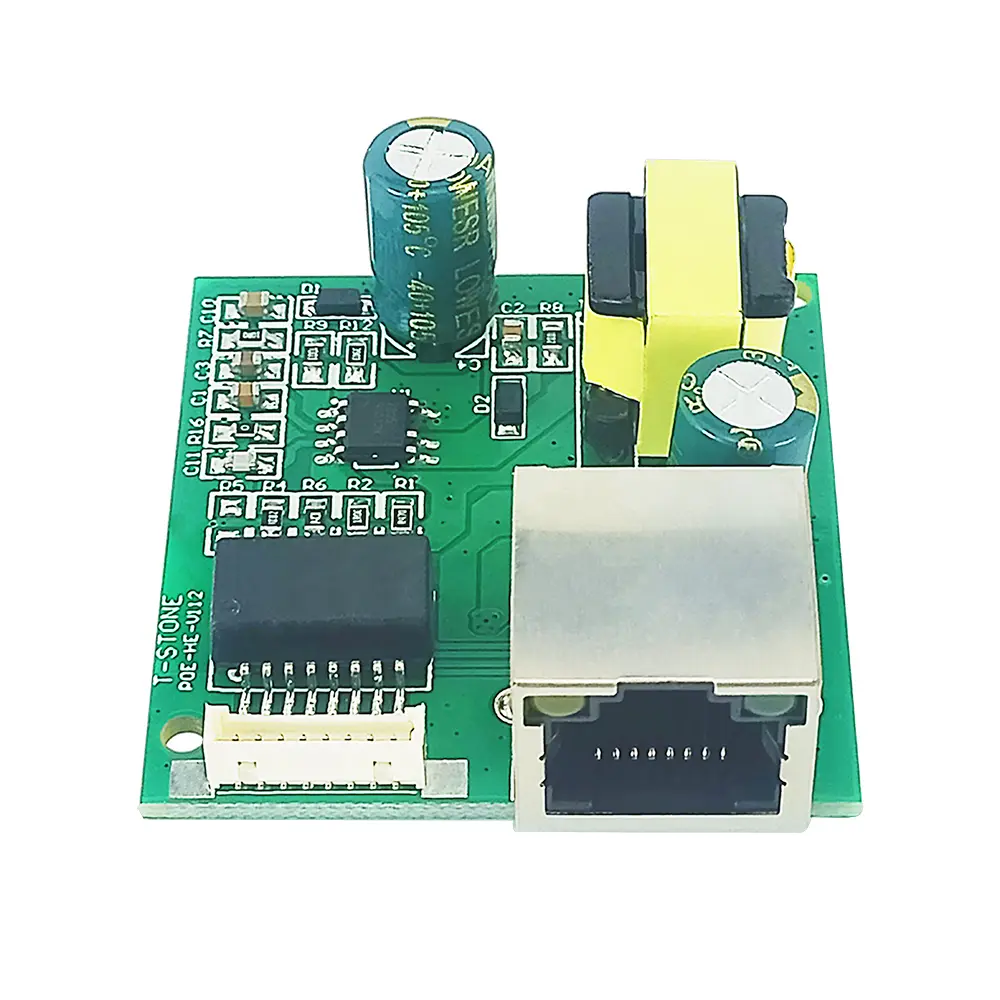

Interface Configuration of TSD - V112：RJ45 Ethernet Port: DC 38 - 56V PoE signals IN; 8 - Pin PH1.25mm Female Socket: DC signal of 12V 1.3A and data signals OUT.

TSD - V112 complies with the international IEEE802.3af PoE standard protocol. The EMC (Electromagnetic Compatibility) parameters of the module meet the requirements of IEC 61000 - 4 - 2/3/4/5/6 standards. It has obtained certifications such as CE, FC, and RoHS. An isolation transformer is installed on TSD - V112, endowing the module with isolation functionality and effectively enhancing the stability of the connected equipment. The circuit is equipped with multiple protection functions, including over - heat protection, over - voltage protection, overload protection, and short - circuit protection. The product is of reliable quality and excellent performance, and it is very popular in many countries and regions overseas.

Transmission Rate of TSD - V112: It features an adaptive transmission rate of 10/100M. The module has a maximum output power of 15W and supports a wide - voltage DC input of 38 - 56V. The default output voltage is DC 12V, and other voltages can be customized upon request.

● Input: Wide-range PoE DC power supply (38V–56V)

● Output: DC 12V MAX1.3A + data
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Isolation protection

● The PCB is environmentally friendly, high - temperature resistant

● Equipped with high - precision electronic components from well - known brands, ensuring stable performance

● High - frequency PoE filter for 100M networks, enabling stable data transmission

● Conversion efficiency exceeds 85%

● Features a vertical interface socket made of beige, high - temperature - resistant, and flame - retardant materials

● Incorporates high - precision electronic components from well - known brands

● An 80mm connecting Wire is provided for convenient connection

Product parameter table
Product Name	15W 100Mbps Isolated PoE module
Product Model	TSD-V112
PoE Standard	IEEE802.3af
Input Voltage	DC 38-56V
Output	DC 12V MAX1.3A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100 Mbps Auto-Negotiation
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (RJ45 Jack): PoE 38V~56V IN Output Port (8Pin PH1.25mm terminal block): Data +DC12V 1.3A OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 18 g
Dimension	43.54117 mm (LWH)
Package	Anti-static pearl cotton

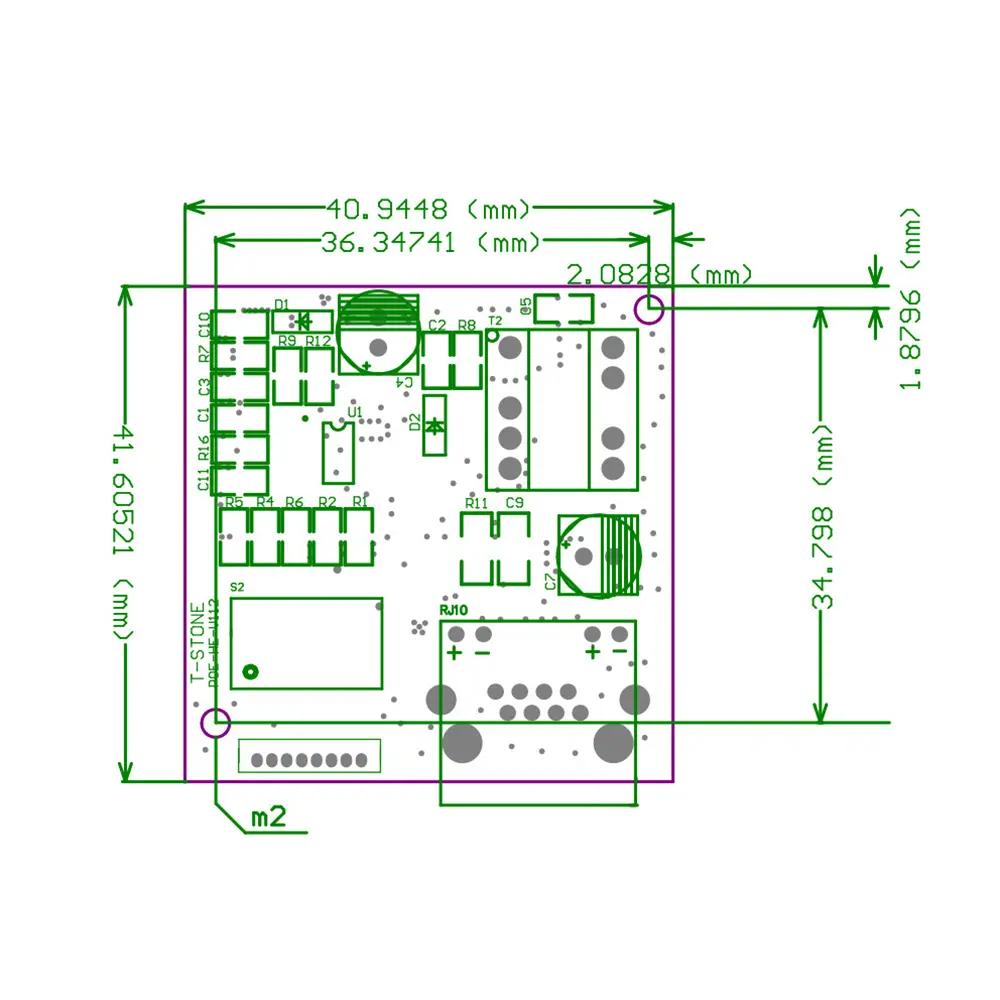

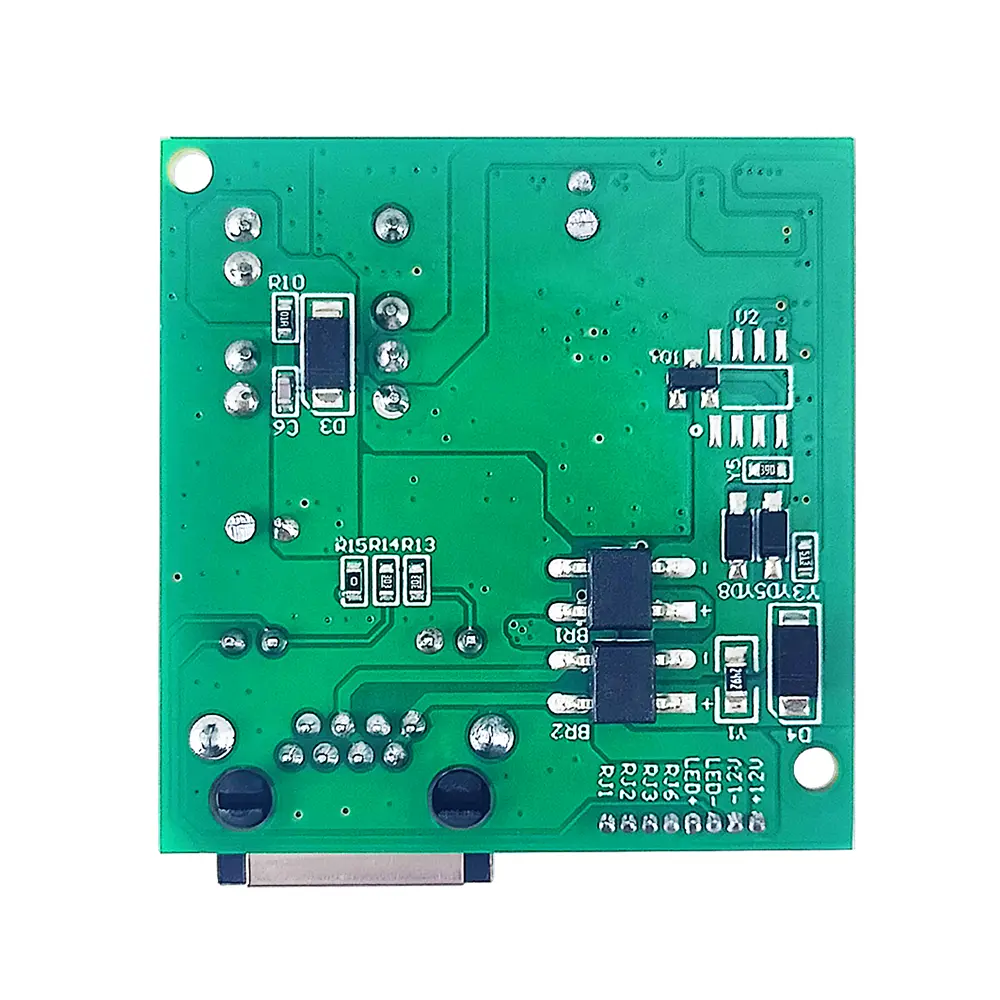

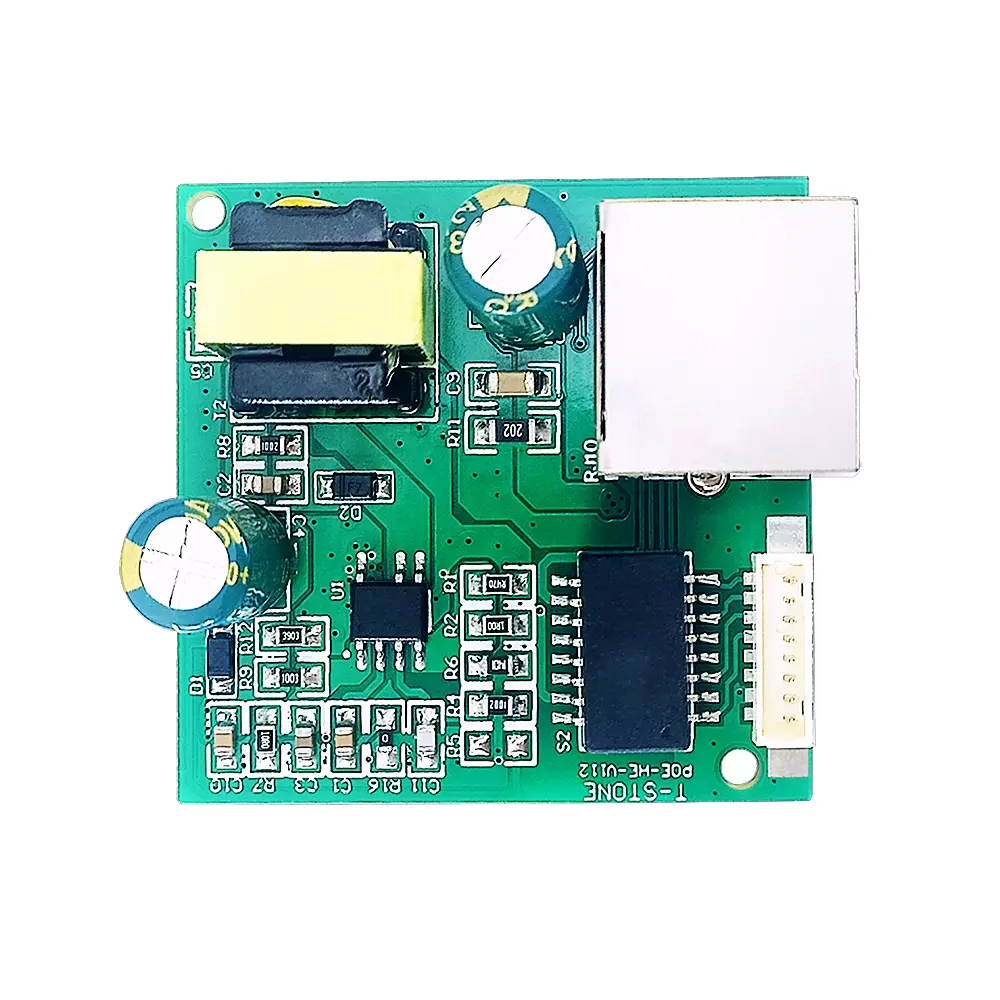

Dimensional Structure of TSD - V112: The dimensions of the module are 43.5 * 41 * 17mm (Length * Width * Height), with a maximum thickness of 17mm. The thickness of the PCB board is 1.6mm. The PCB material is FR - 4, and the color of the PCB solder mask is bright green oil. The components are designed on both sides of the board, with large - sized components concentrated on one side to save users' installation space.

The TSD - V112 offers diverse PoE power supply solutions for user end - devices. This module adopts the mode of network port input and terminal block output, enabling users' products and equipment to be well integrated into the PoE power supply system. The module can be integrated into users' network devices such as network bridges, network cameras, and wireless APs, allowing the equipment to break free from the limitations of power sockets and be flexibly deployed at any location with an Ethernet interface. The TSD - V112 further enriches users' power supply options.

Package list
Items	Quantity
V112 PoE module	560 PCS
Operation Manual	/
