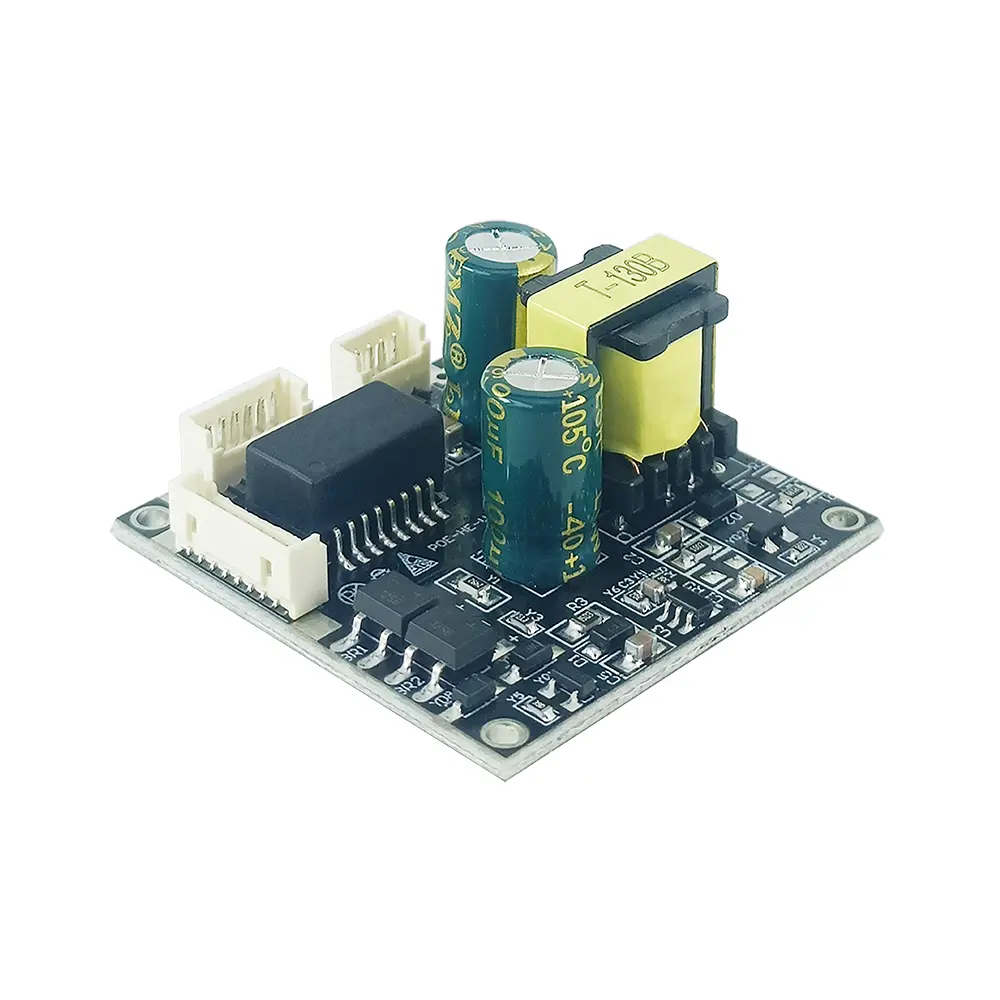

12W Isolated 100Mbps PoE PD Module

Model: TSD-PD3804

  • Input: Wide-Range PoE DC 38-56V
  • Output: DC 12V MAX 1A 12W
  • PoE protocol: IEEE 802.3af
  • Transmission rate: 10/100Mbps
  • RJ12+ RJ36- / RJ45+ RJ78-fully compatible
  • Interface: PH1.25/2.0mm Socket
  • Size: 38*38*15mm (L*W*H)
  • Weight: N.W=13g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

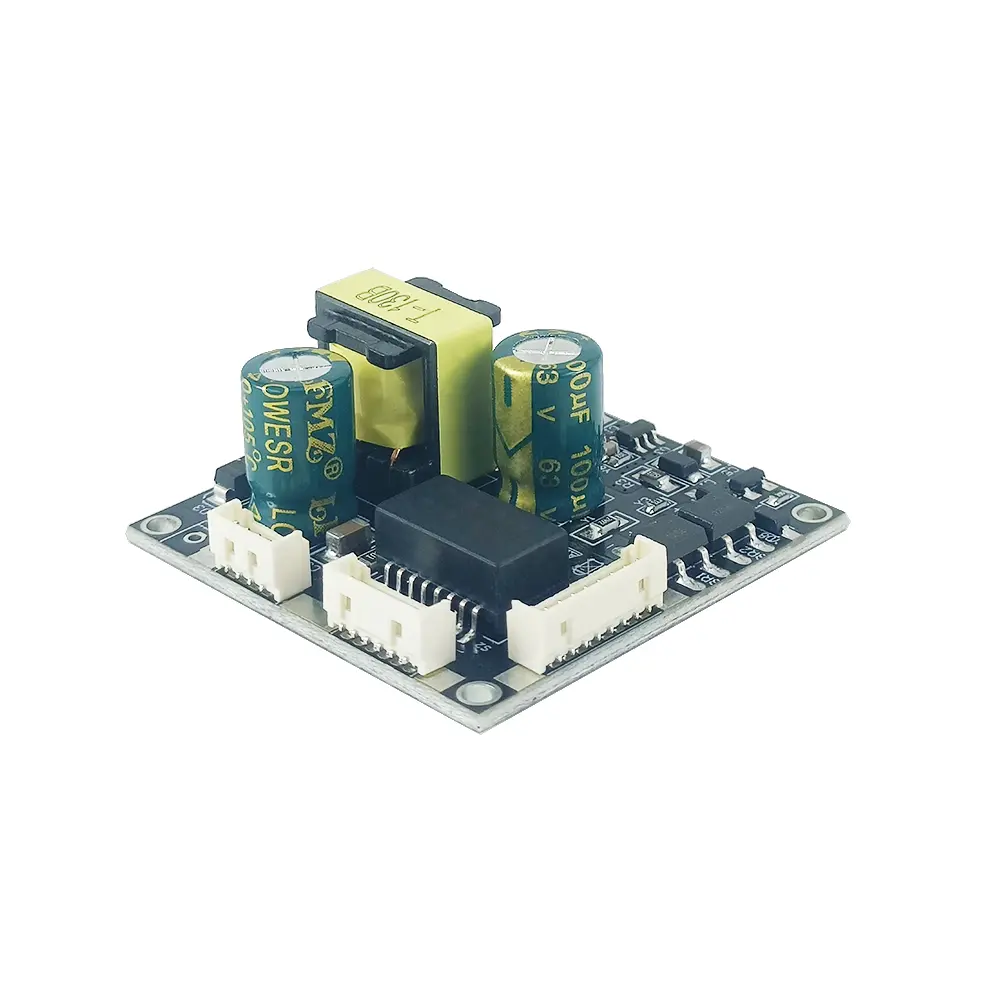

    3804-4
    01

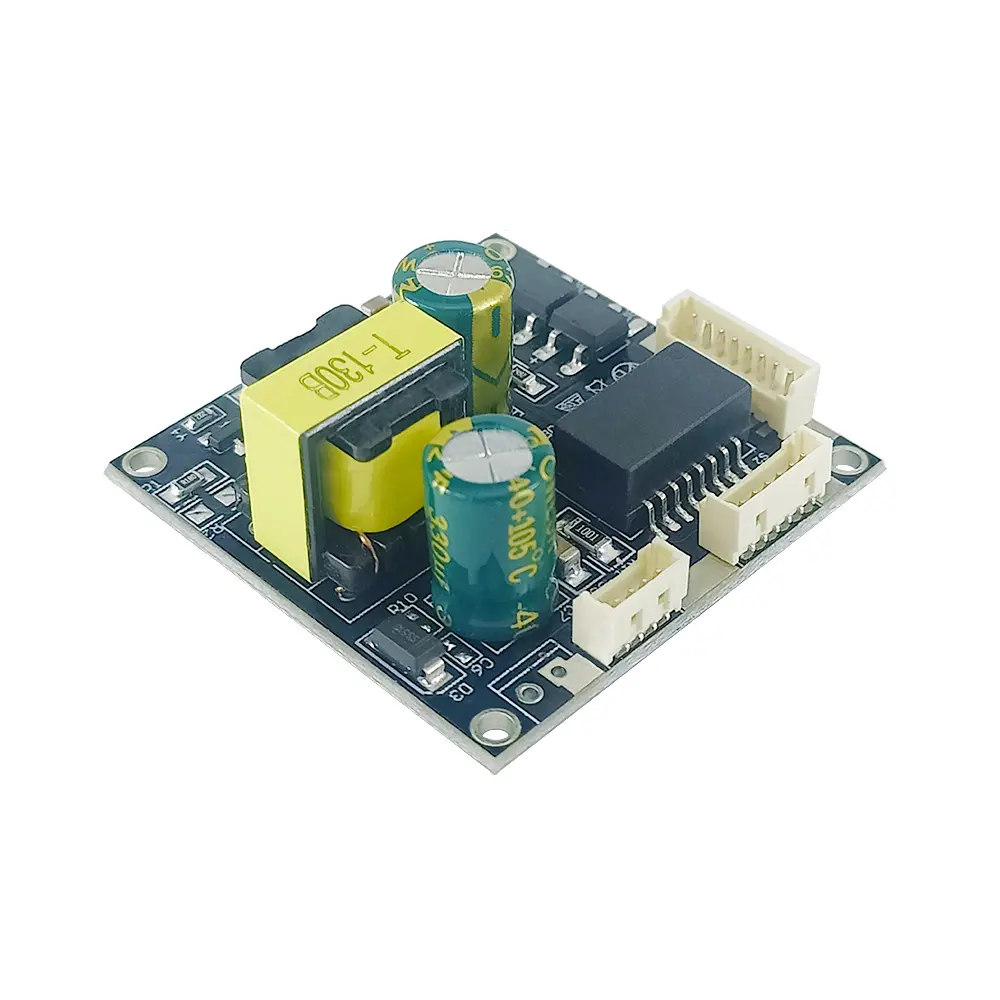

    The TSD-PD3804 is a 12W active PoE module suitable for applications in security monitoring, audio broadcasting, and wireless coverage. It complies with the IEEE 802.3af PoE standard protocol. The maximum output power of this module is 12W, and it can continuously and stably output 12V 1A direct current.



    The TSD-PD3804 module features a handshake protocol and can be integrated into ordinary IP devices. This enables the devices to safely receive PoE signals and operate stably, effectively reducing wiring costs and simplifying the wiring process.



    ​

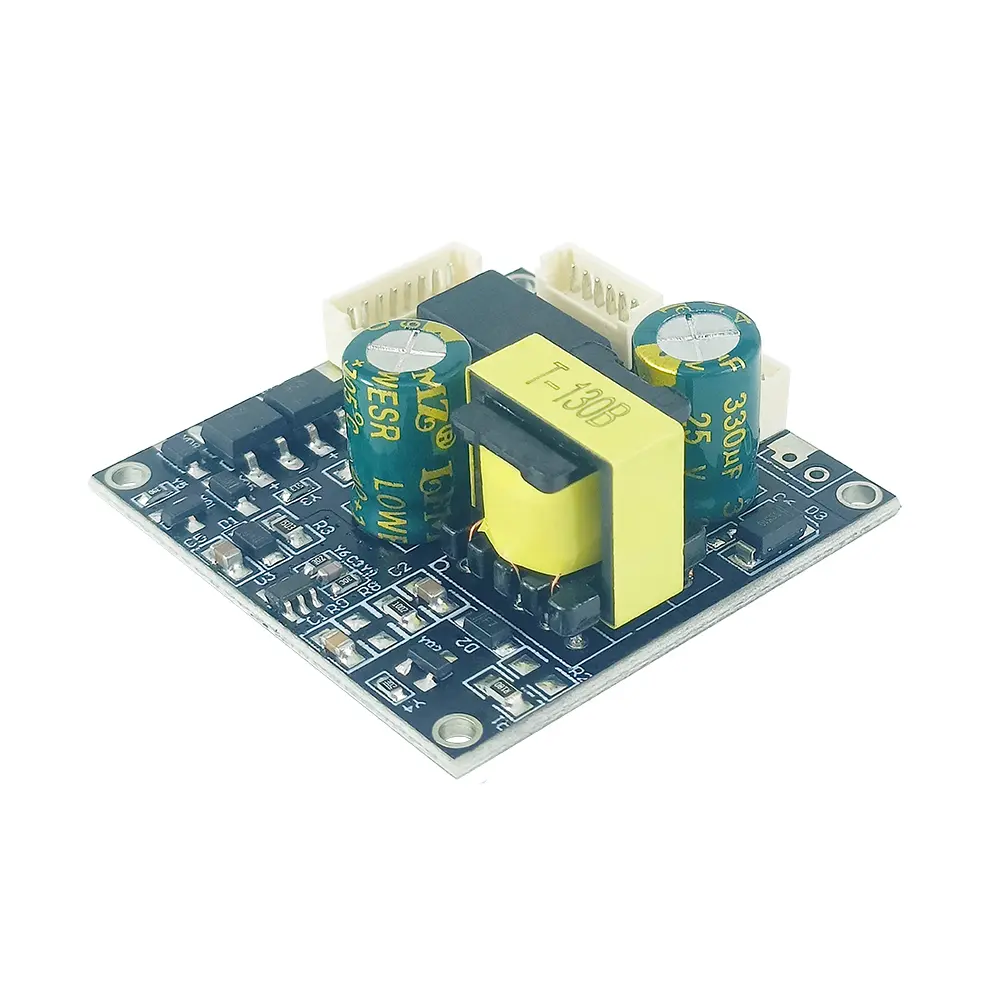

    3804-5
    01

    The Interface configuration of TSD-PD3804: 4-Pin PH1.25mm female connector: RJ45+ RJ78- POE power supply + DC 12V IN. 4-Pin PH1.25mm female connector: RJ12+ RJ36- power supply.8-Pin PH1.25mm female connector: provides DC 12V 1A + data signals IN. 2-Pin PH2.0mm female connector: DC 12V OUT.


    PD3804 adopts isolation design scheme, equipped with isolation transformer, is an isolated PD module. The circuit has anti-lightning, anti-short circuit, anti-overload, anti-high temperature and other protection functions, EMC parameters can meet IEC 61000-4-2/3/4/5/6 standard requirements. Products have obtained CE, FCC, RoHS and other certifications, selling well in more than 100 countries and regions around the world.

    The PD3804 complies with IEEE802.3AF POE standard protocol and has a maximum output power of 12W. Transmission rate: 10/100Mbps adaptive transmission. Support wide voltage input DC 38-56V, default output voltage DC 12V, other voltages can be customized.



    ● Input:​​ Wide-range PoE DC 38-56V
    ● Output:​​ DC 12V MAX 1A
    ● Compliance:​​ IEEE 802.3af PoE International Standard
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
    ● Transmission Rate:​​ 10/100Mbps Auto-Negotiation
    ● Protection Features:​​ Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● Vertical interface, easy installation

    ● 100Mbps high frequency POE filter to ensure stable data transmission

    ● High frequency low resistance electrolytic capacitor, effectively reduce the circuit high frequency loss and heating

    ● International brand original high-precision electronic components, stable performance

    ● High power, high conduction and low impedance transistor, stable performance and low heat

    ●Environmentally friendly and high-temperature resistant PCB material, lead-free process that is environmentally friendly

    ● Adopts pure copper pin connector to avoid bad contact

    ● Beige high temperature flame retardant interface socket, safe and reliable quality

    ● EE13 frame isolation transformer, high electrical safety

    ● Equipped with 80mm cable for easy customer connection


    Product parameter table

    Product Name

    12W isolated 100Mbps PoE PD module

    Product Model

    TSD-PD3804

    PoE Standard

    IEEE802.3af

    Input Voltage

    PoE: DC 38-56V

    Output

    DC 12V MAX 1A

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ12+ RJ36- / RJ45+ RJ78- Fully compatible

    Conversion Mode

    Isolated type

    Data Rate

    10/100Mbps Auto-Negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    /

    Interface

    PoE Input Port  (6-Pin PH1.25mm terminal block): RJ12+ RJ36-

    PoE Input Port  (4-Pin PH1.25mm terminal block): RJ45+ RJ78-

    Output Port (8-Pin PH1.25mm terminal block): Data + DC

    Output Port (2-Pin PH2.0mm terminal block): DC 12V

    Function

    /

    Material

    FR-4

    Color

    glossy black solder mask

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 13 g

    Dimension

    38*38*15mm

    Package

    ​Blister packaging tray

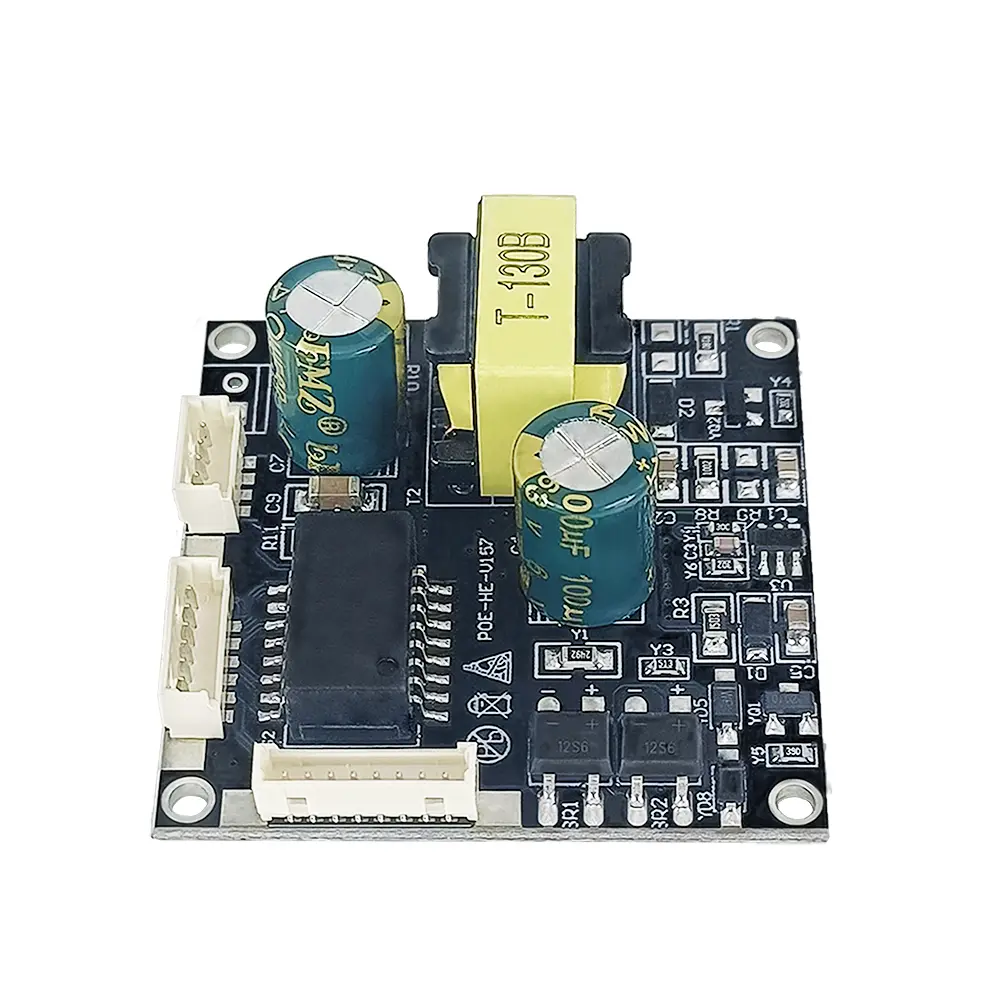

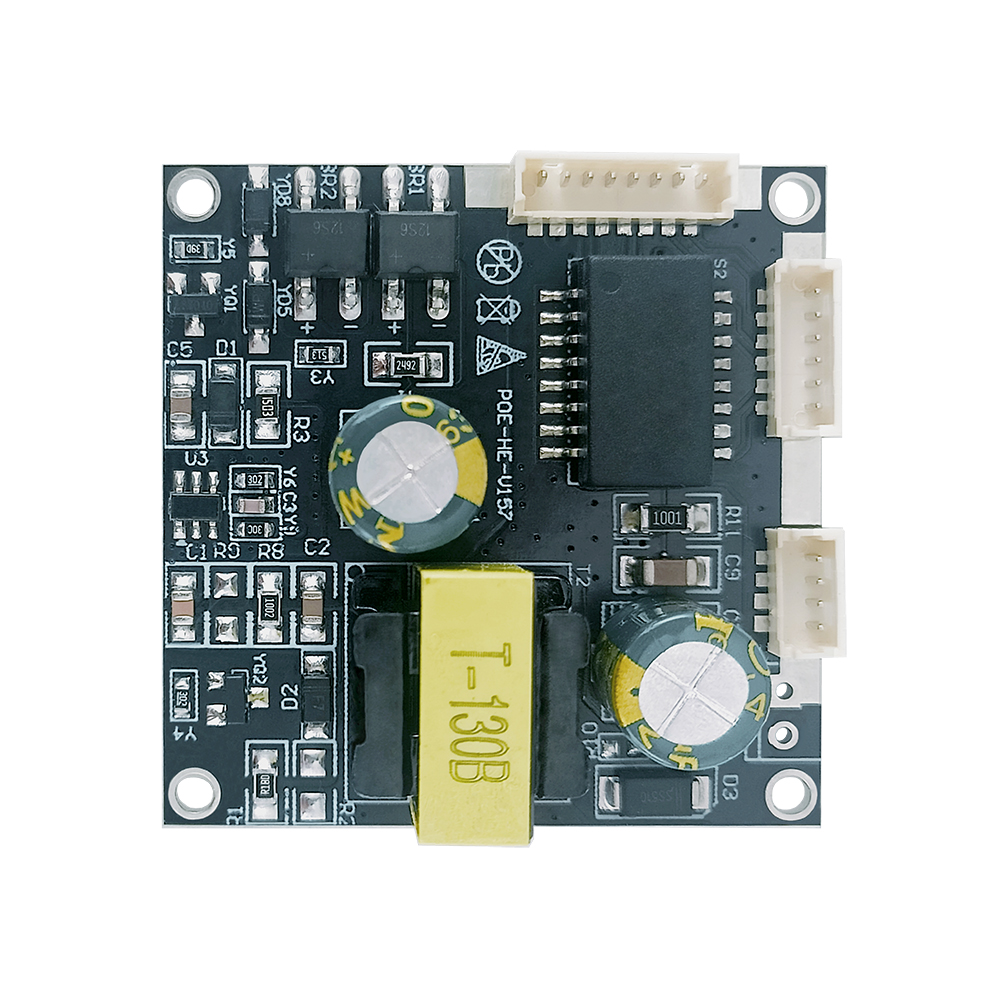

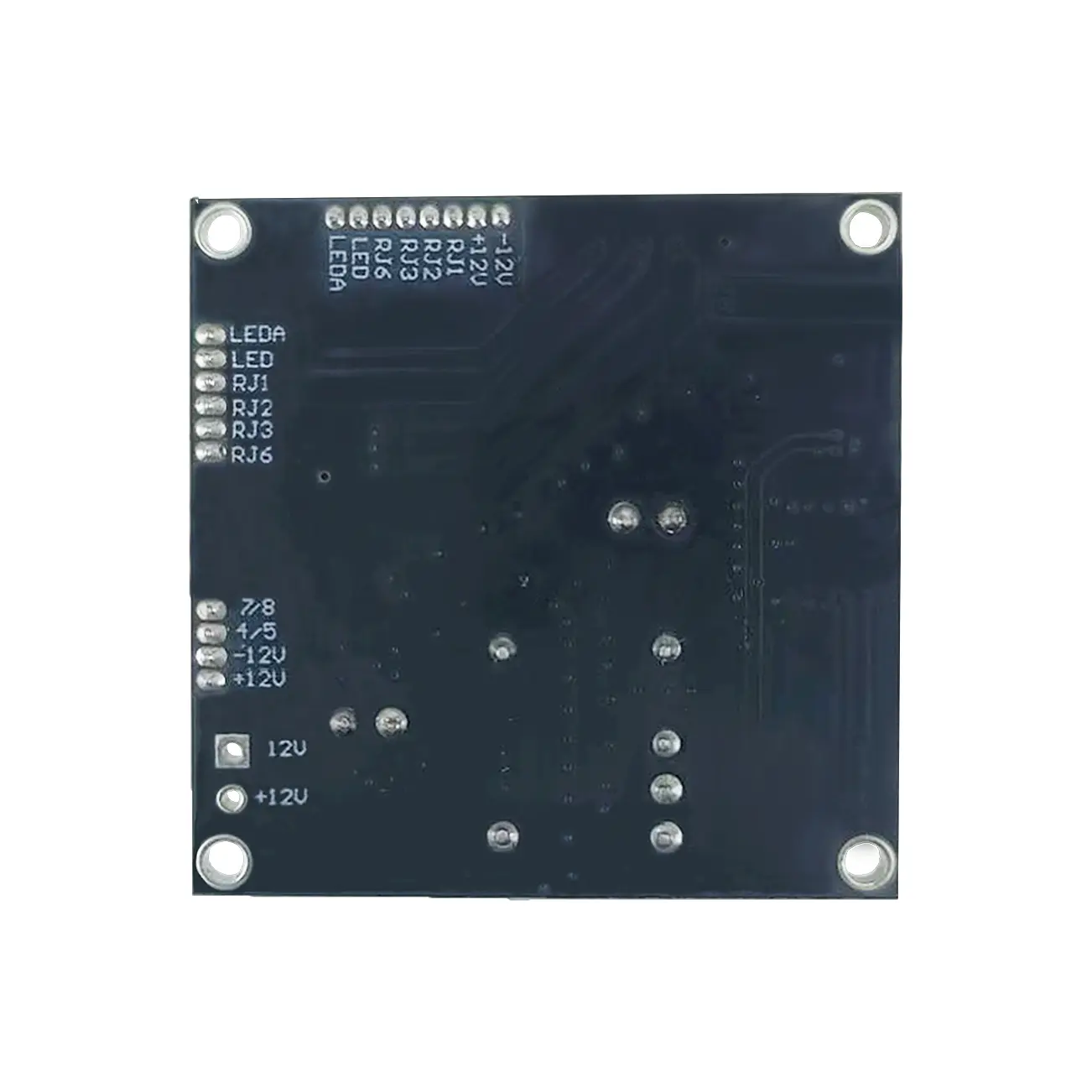

    Size structure: 38*38*15mm, Screw hole diameter: Φ=2.0mm*4, Hole center distance: 34*34mm, PCB thickness: 1.6mm. Double-layer board design, with the surface sprayed with glossy black oil. Overall layout: Square structure. Maximum thickness: 15mm. The module adopts a single-sided design. All components are concentrated on the front side, and the back side is a bare board without components, which is conducive to assembly and use.
    Dimension

    PD3804 is an active PD module, the maximum output power of 12W, the module is mainly used in security monitoring, network audio broadcast, wireless coverage and other equipments.

    PD3804 performs well in the POE equipment application field, and its stable work and excellent performance characteristics continue to obtain praise and praise from equipment manufacturers and end users.

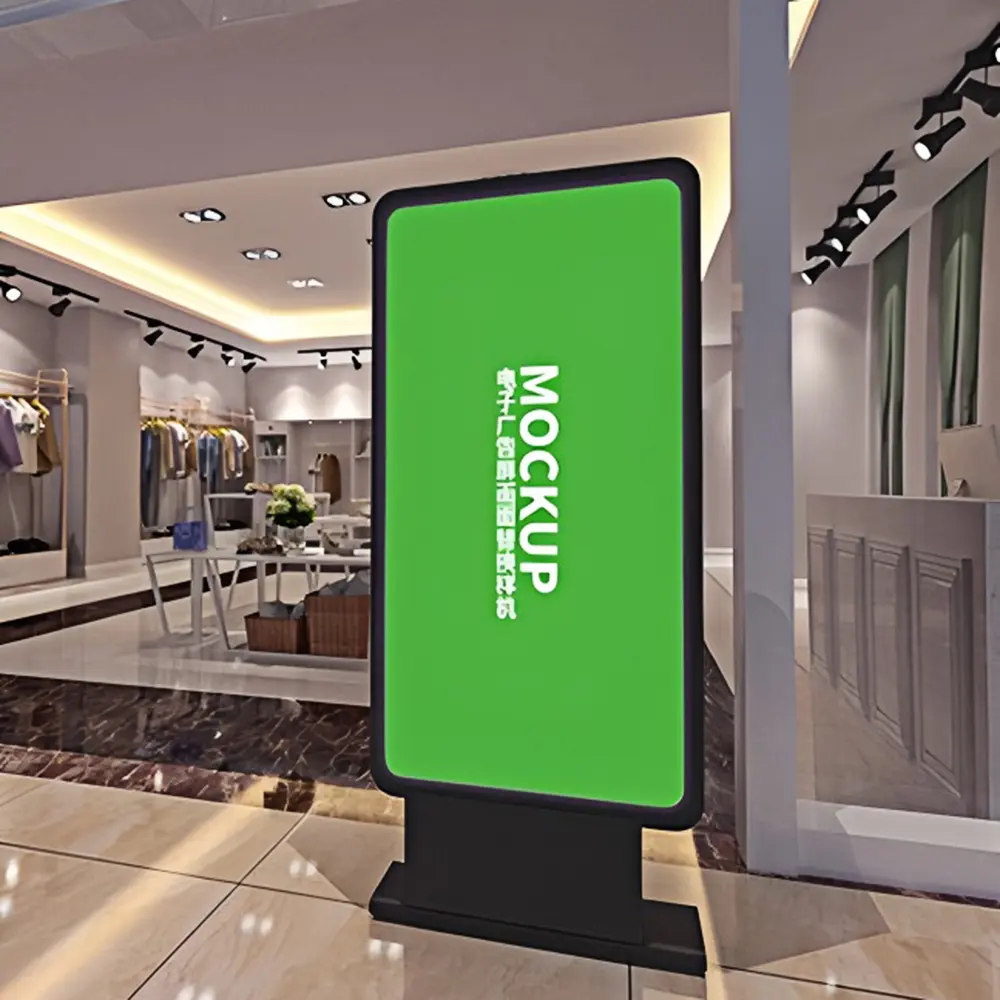

    Application1

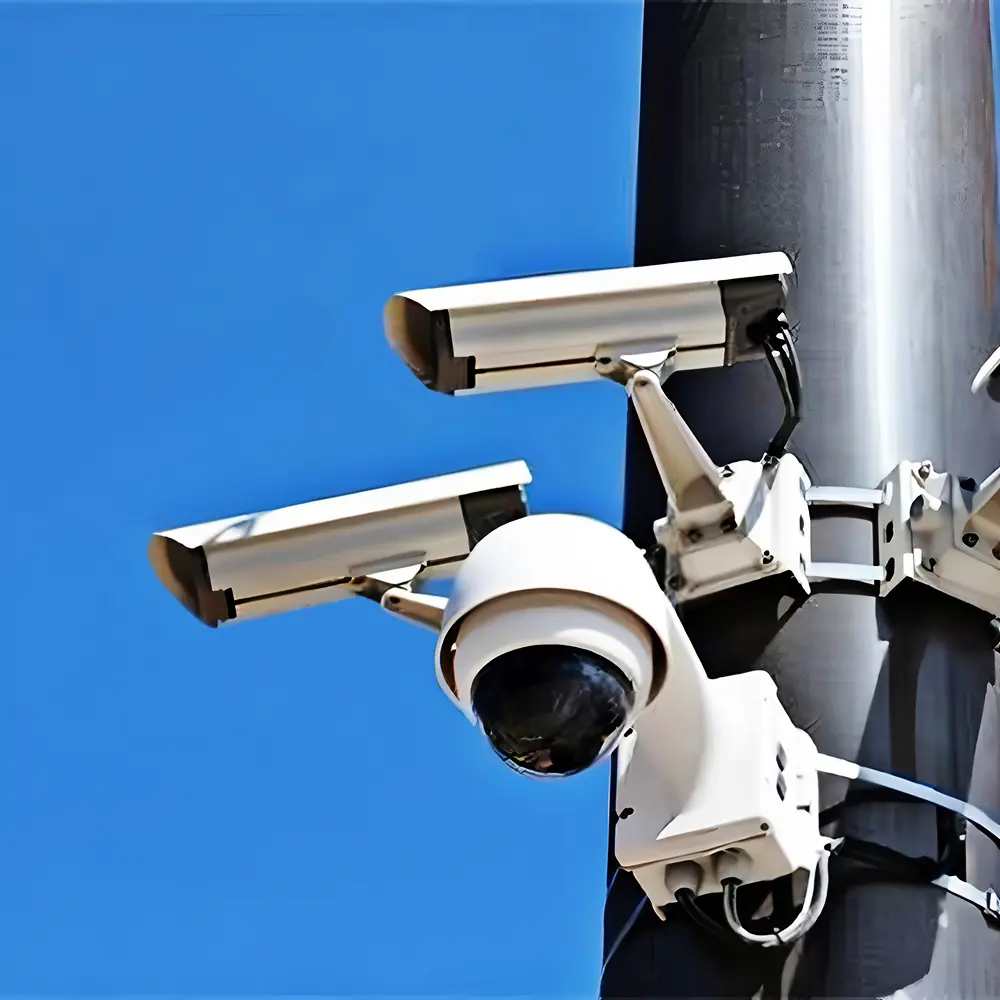

    Application2
    Application3

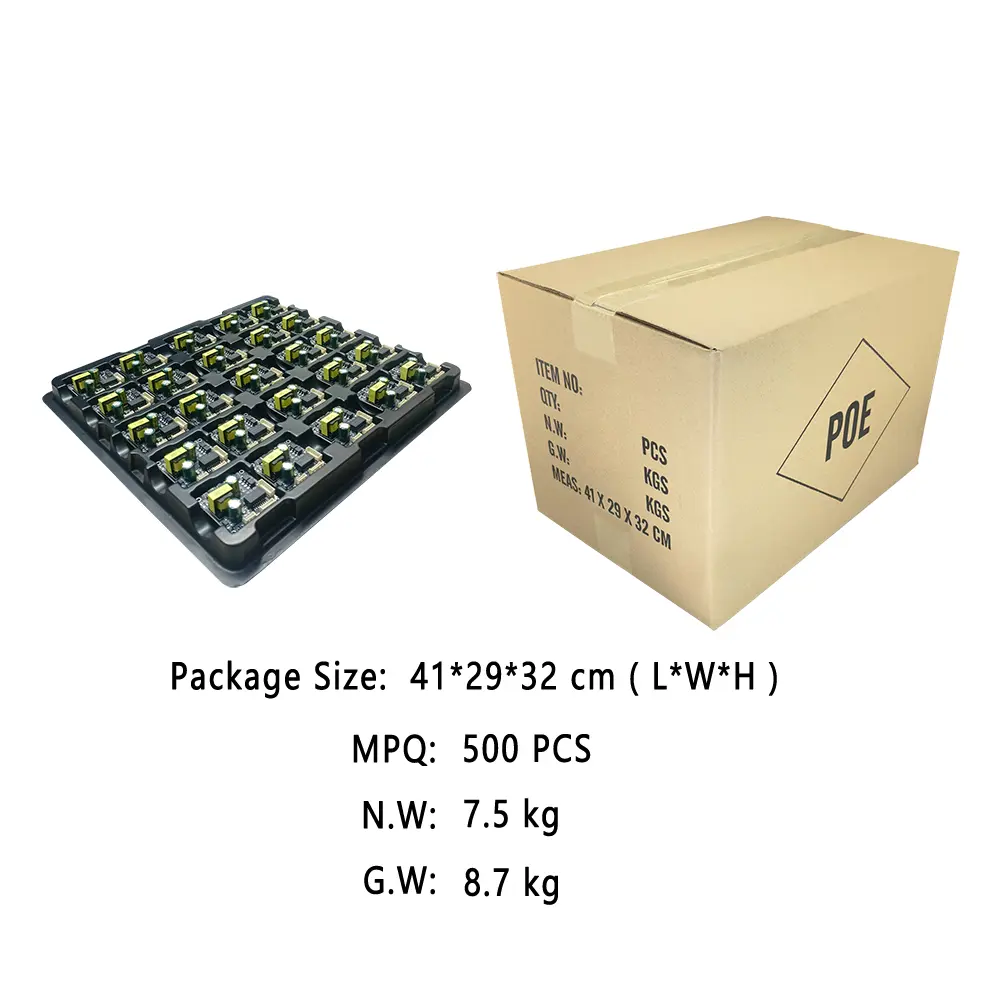

    Package list
    Items Quantity
    PoE PD Module 500
    Operation Manual /
    package
