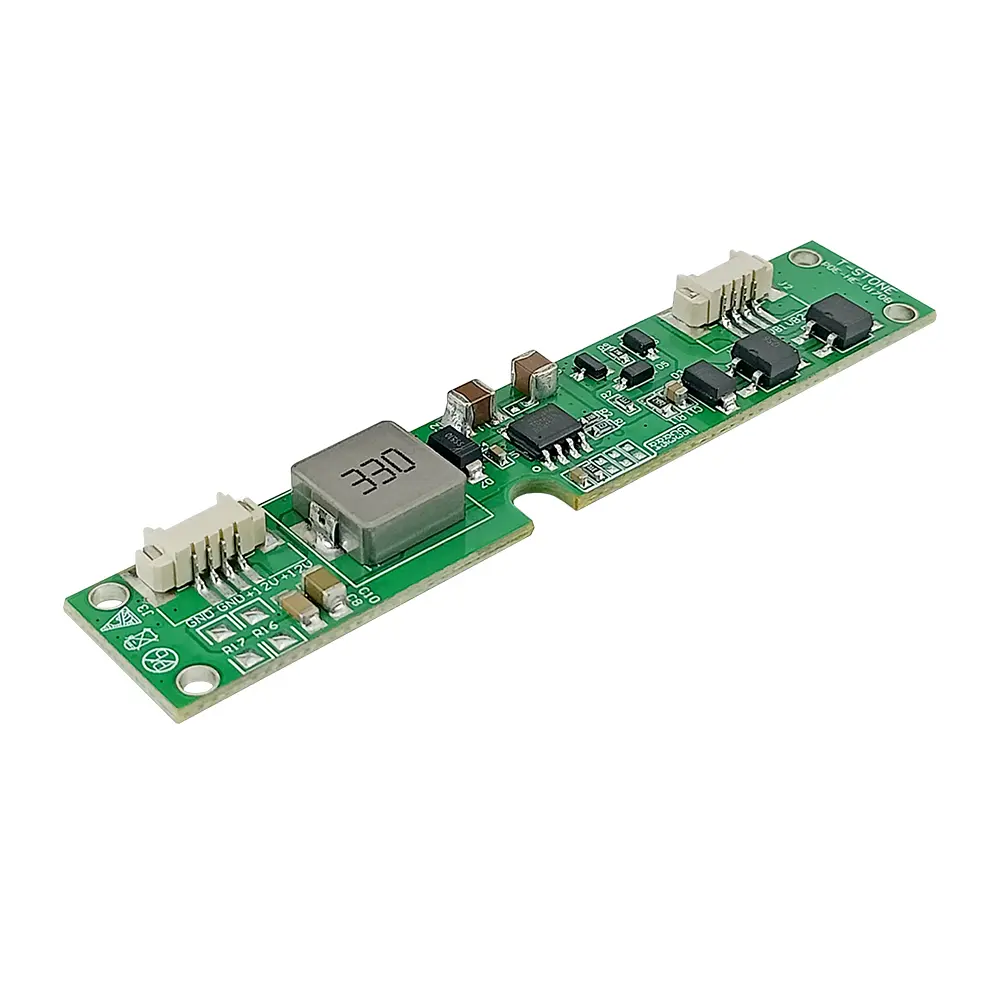

12V low-power PoE module

Model: TSD-V170C

Input: PoE DC power supply (38V–56V)
Output: DC 12V MAX1.3A 15W
PoE protocol: IEEE 802.3af
Conversion Efficiency≧90%
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PH1.25 sockets*2
Size: 80*15*5.5 mm (L*W*H)
Weight: N.W=8 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

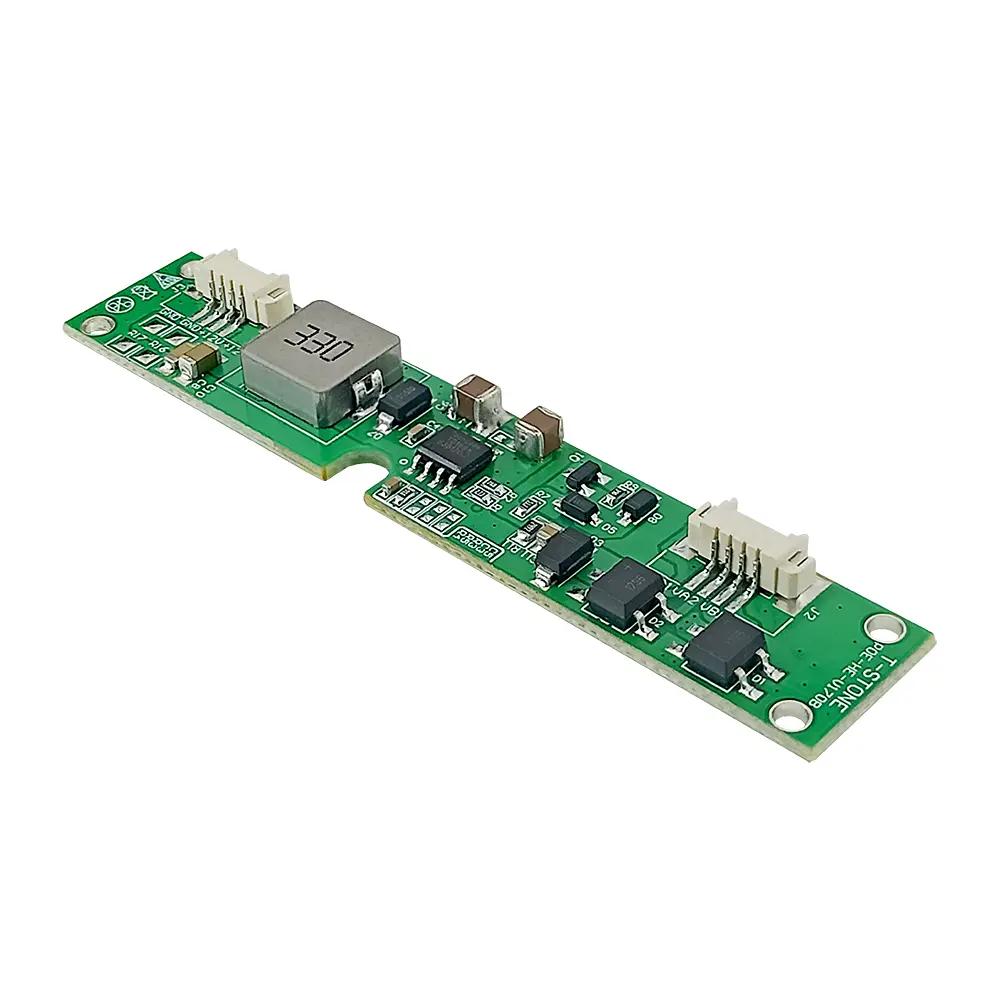

The TSD-V170C module supports the IEEE 802.3af PoE international standard protocol. It receives PoE signals from the power supply end as input and outputs 12V 1.3A DC powe, with a maximum output power of 15W.

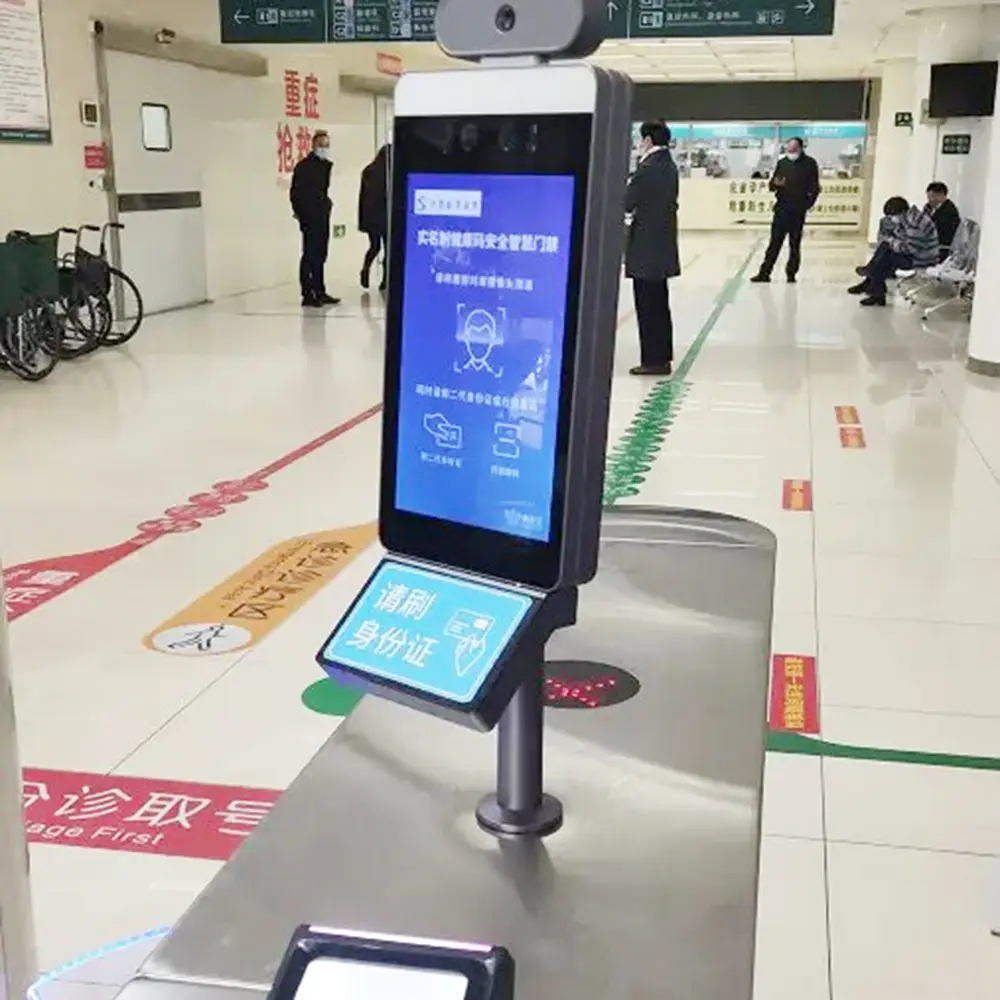

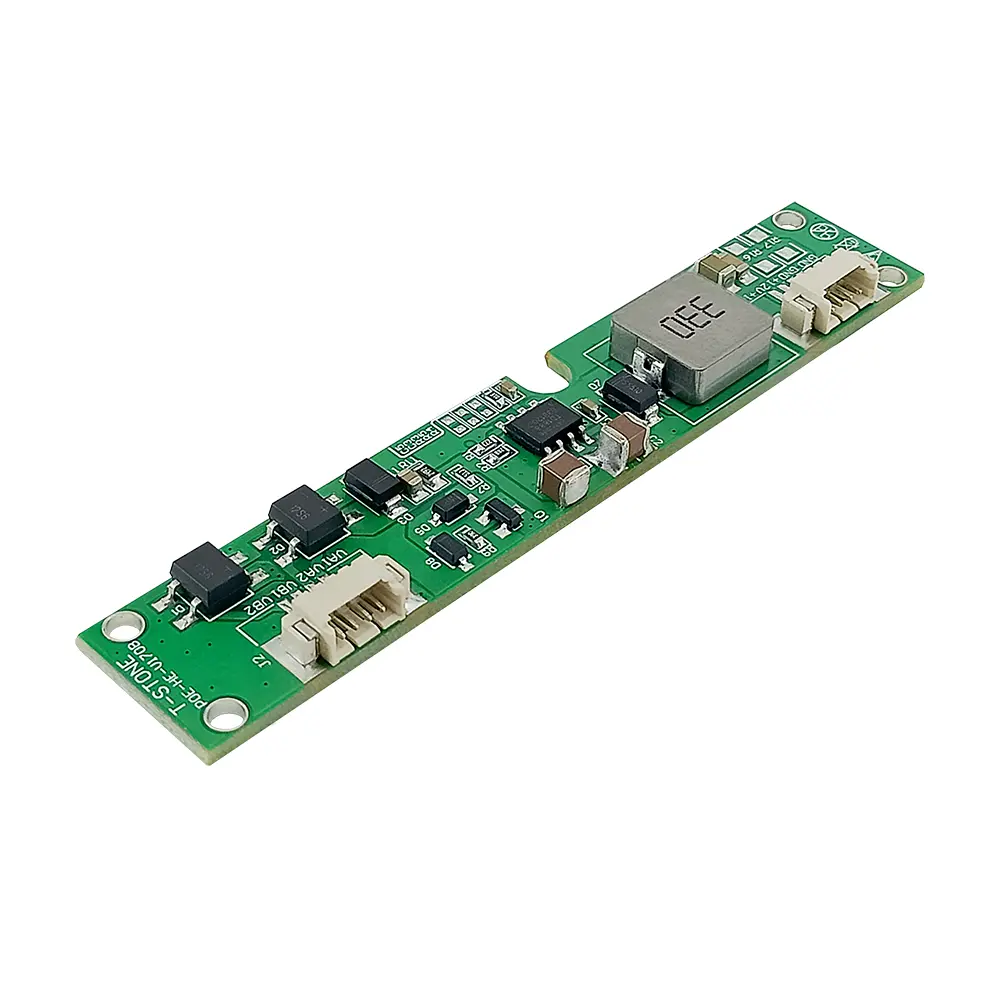

The TSD-V170C is integrated into terminal devices such as all-in-one advertising machines, smart access control systems, and commercial display screens, enabling these devices to support PoE functionality. This allows them to be seamlessly incorporated into PoE-powered systems and operate stably.

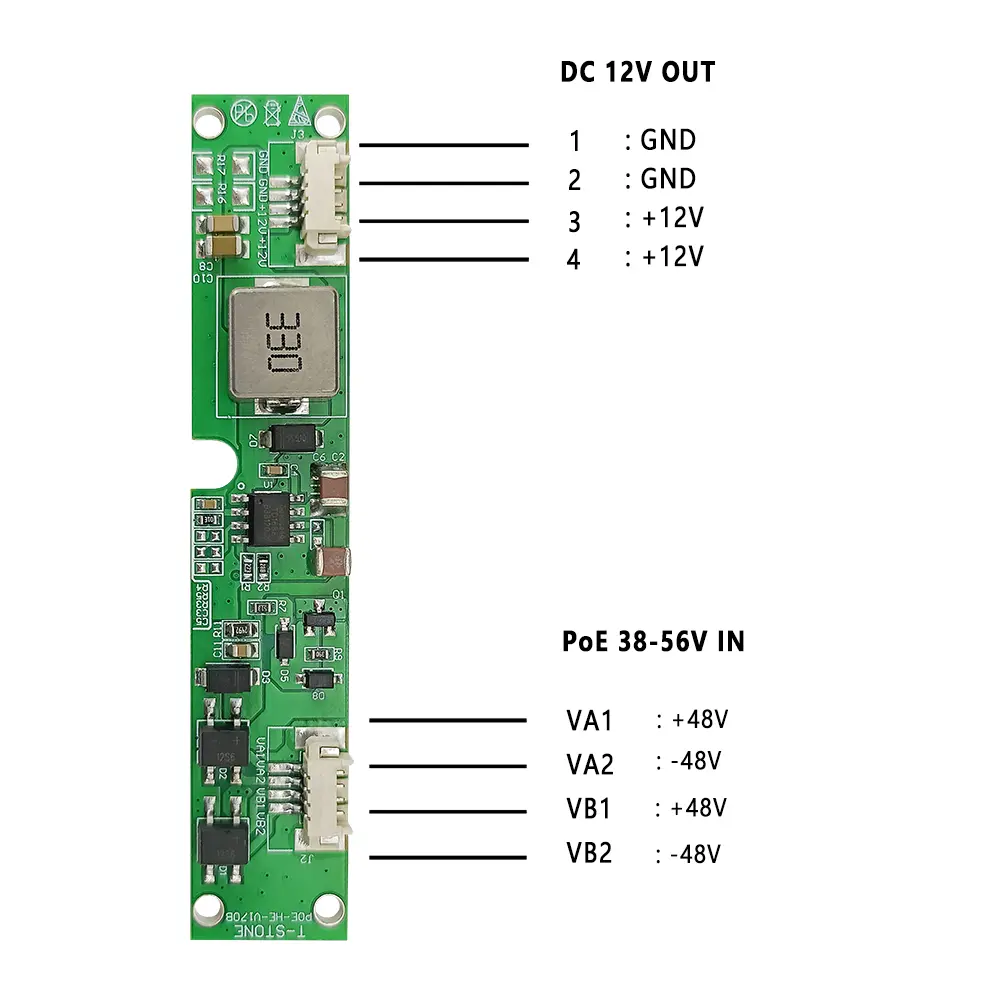

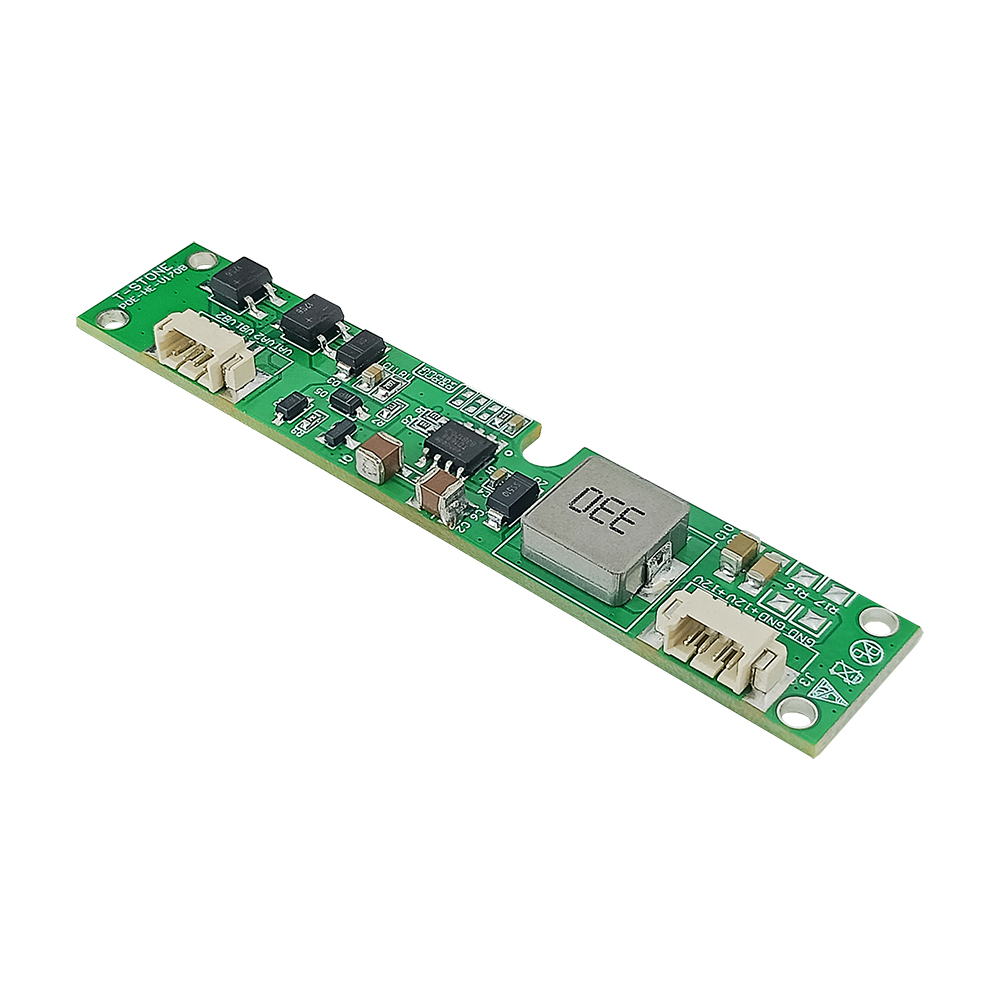

Interface configuration of the TSD-V170C module:

4-Pin PH1.25mm horizontal socket: DC 38–56V PoE input;

4-Pin PH1.25mm horizontal socket: DC 12V 1.3A output.

The EMC parameters of the TSD-V170C module comply with the requirements of IEC 61000-4-2/3/4/5/6 standards. The product supports the IEEE802.3af PoE international standard protocol and has obtained CE, FCC, RoHS and other certifications. The module delivers stable performance and reliable quality, making it suitable for various power supply scenarios and widely adopted in multiple countries and regions worldwide.

The TSD-V170C supports a wide voltage input of DC 38-56V, with a default output voltage of DC 12V 1.3A and a maximum output power of 15W. The circuit features protection functions such as lightning strike prevention, short circuit prevention, overload prevention, high temperature prevention, and 4KV surge protection.

● Input: Wide-range PoE DC power supply (38V–56V)

● Output: DC 12V Max 1.3 A
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Conversion efficiency≧90%

● High-temperature resistant and flame-retardant socket

● Design: low-profile horizontal interface

● Premium-brand high-precision electronic components

● High-power, high-conductivity, low-impedance transistors

● Pure copper pin connectors with excellent electrical and thermal conductivity

● High-temperature resistant and environmentally friendly PCB material

● Surface mount inductors to suppress noise, filter signals, and enhance circuit stability

Product parameter table
Product Name	12W low-power PoE Module
Product Model	TSD-V170C
PoE Standard	IEEE802.3af
Input Voltage	DC 38-56V
Output	DC 12V MAX1.3A
Conversion Efficiency	≧90%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Non-isolated type
Data Rate	/
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (4-Pin PH1.25mm Socket): DC 38-56V IN Output Port (4-Pin PH1.25mm Socket): DC 12V OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 8 g
Dimension	80155.5 mm (LWH)
Package	Anti-static pearl cotton

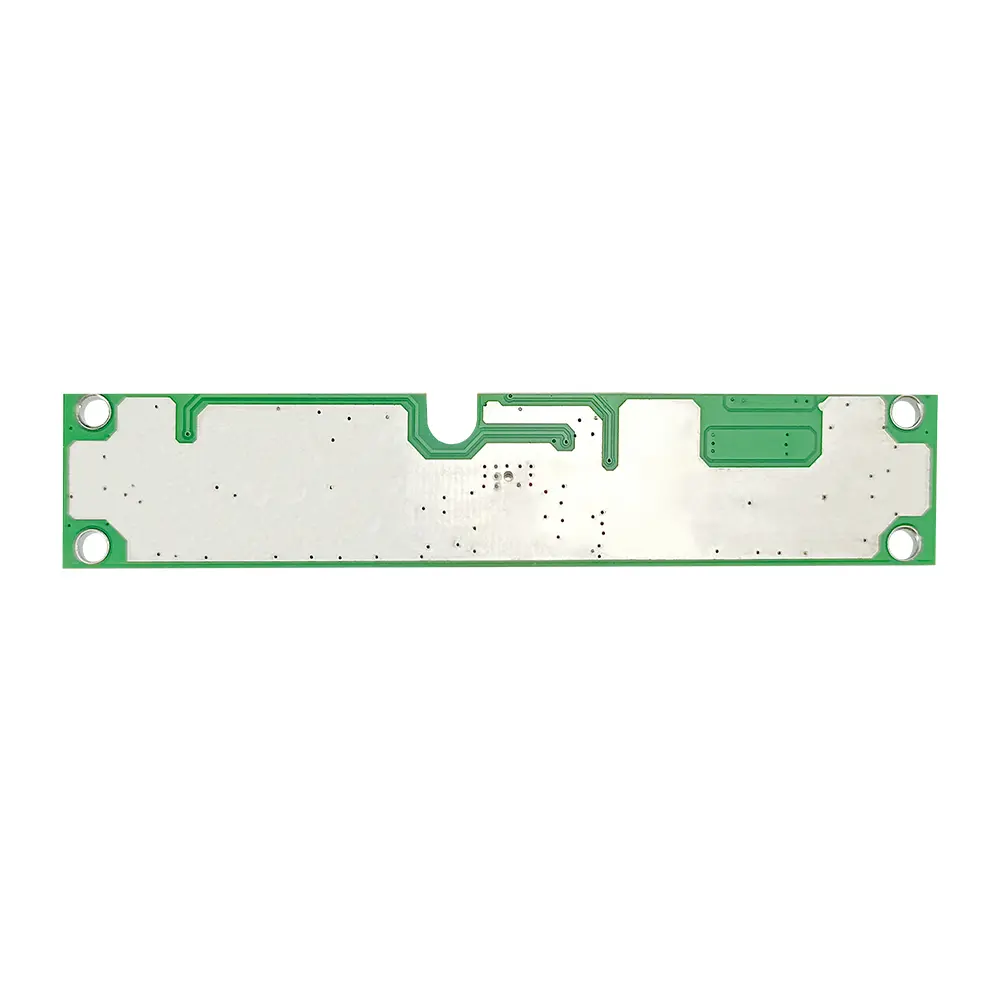

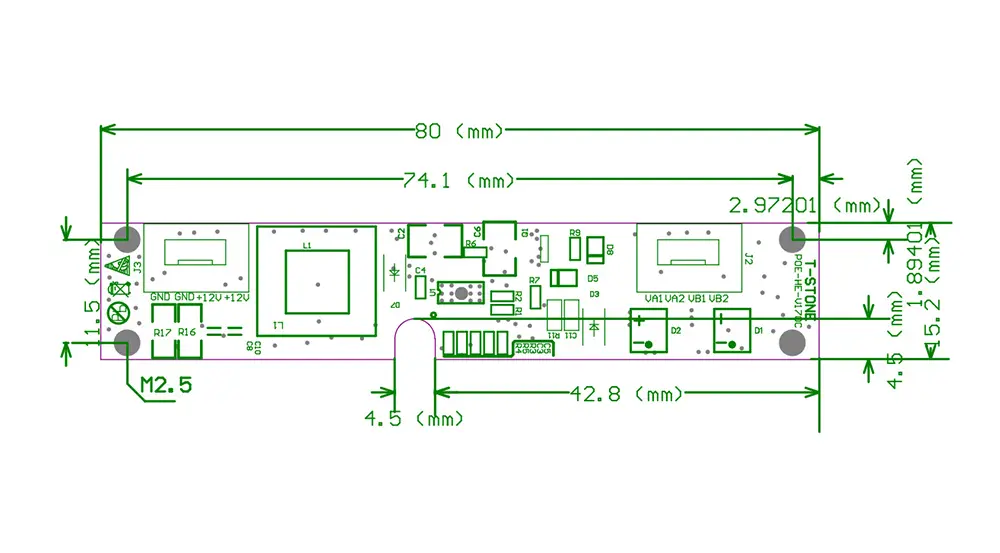

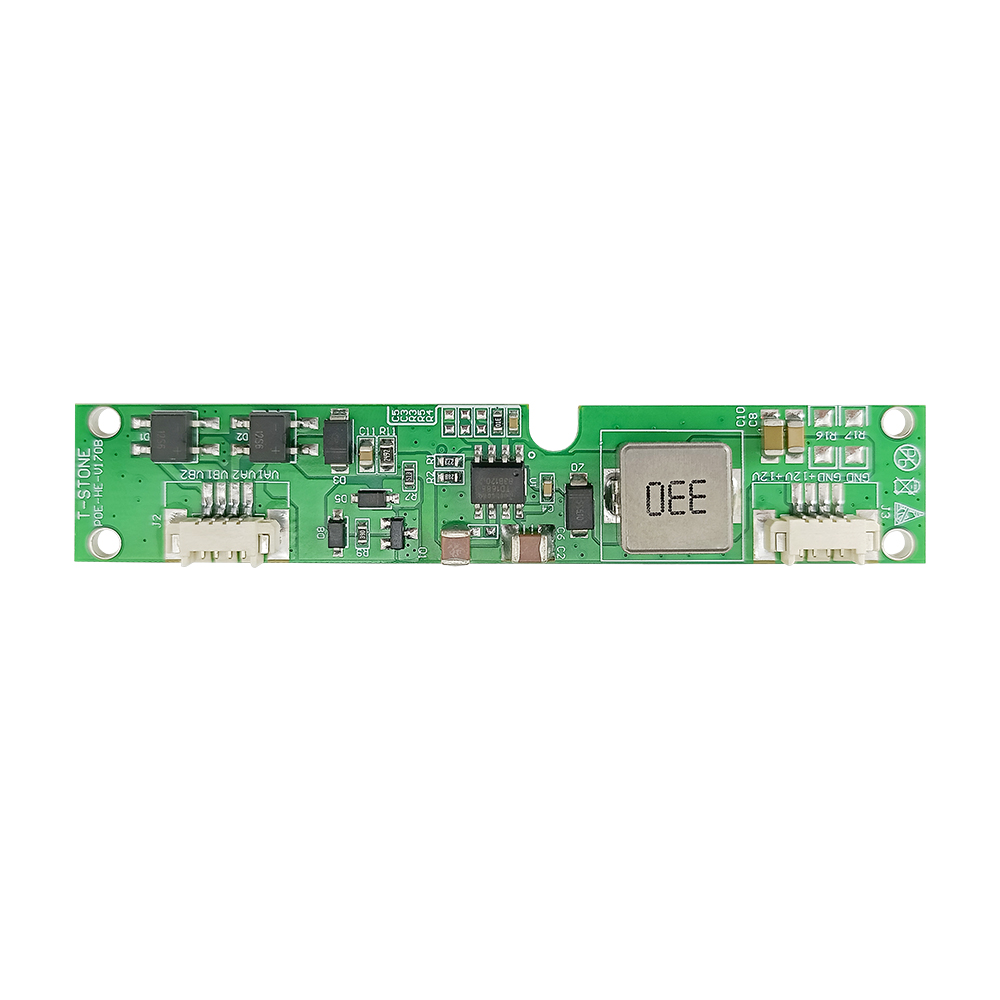

Dimensions & Structure: Overall Size: 80 × 15 × 5.5mm, Screw Hole Diameter: Φ = 2.4mm × 4 (four holes), Hole Center Distance: 74 × 11.5mm, PCB Thickness: 1.6mm, Maximum Height: 5.5mm, Solder Mask: Glossy green. The module features a square-shaped, single-sided design, with key components concentrated on the front side to enhance circuit integration. The back side is a heat-dissipating plain board, helping to lower PCB temperature and facilitating user installation.

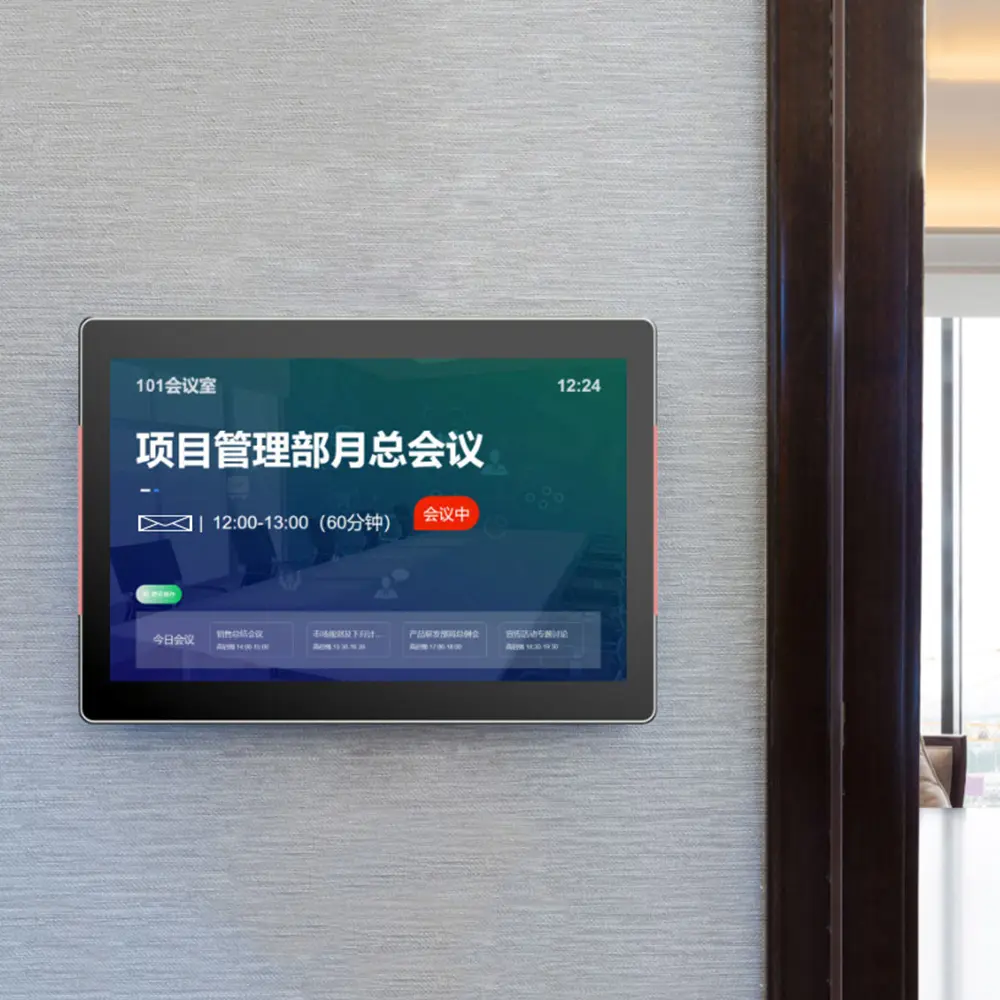

The TSD-V170C delivers a more reliable and convenient power supply solution, enabling flexible integration into a wide range of terminal devices. By reducing deployment costs and simplifying installation complexity, it provides an efficient power supply option for various applications. With its stable operation and excellent performance, the module is ideal for commercial displays, all-in-one computers, advertising machines, and smart access control systems.

Package list
Items	Quantity
V170C PoE module	500 PCS
Operation Manual	/
