100Mbps 4KV Surge Protection 30W PoE PD Module

Model: TSD-PD3825

Input: Wide-Range PoE DC 38-56V
Output: DC 12V MAX 2.5A 30W
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PH1.25/2.0mm Socket
Size: 38*38*12mm (L*W*H)
Weight: N.W=12 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-PD3825 module is a 30W high-power active PoE module specifically designed for LCD displays, audio broadcasting systems, commercial display billboards and other devices. With a maximum output power of 30W, it can continuously and stably provide a DC 12V 2.5A power output for the devices.

The TSD-PD3825 module complies with the IEEE802.3af/at PoE standard protocol. By using Ethernet transmission cables, it delivers direct current and network signals to PoE-compatible devices, achieving both power supply and data transmission.

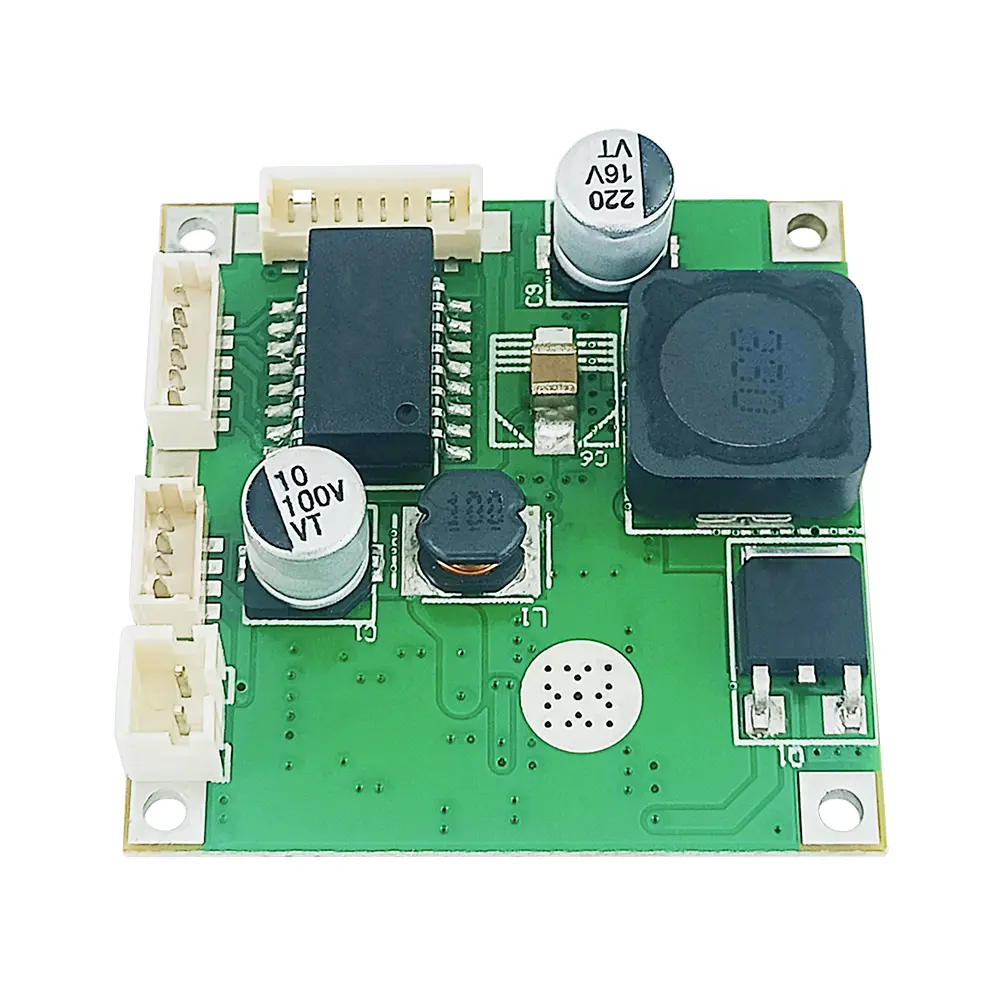

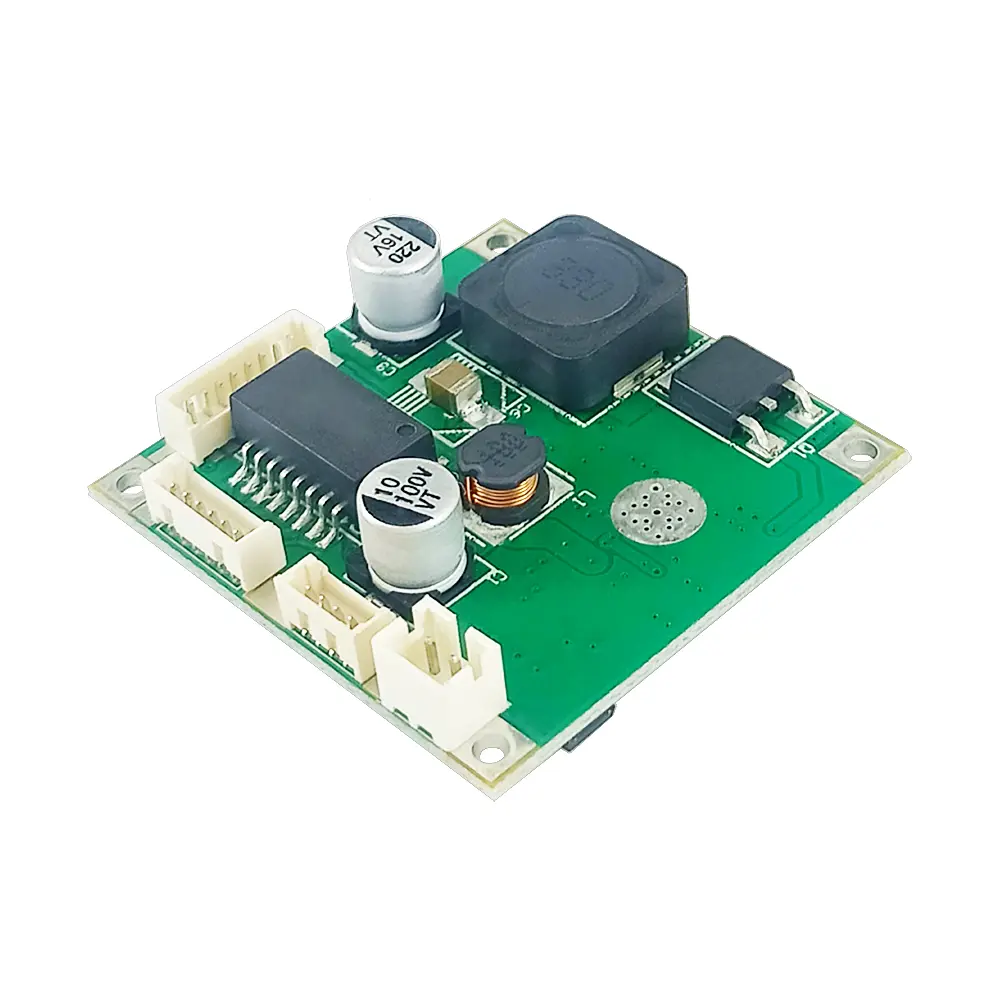

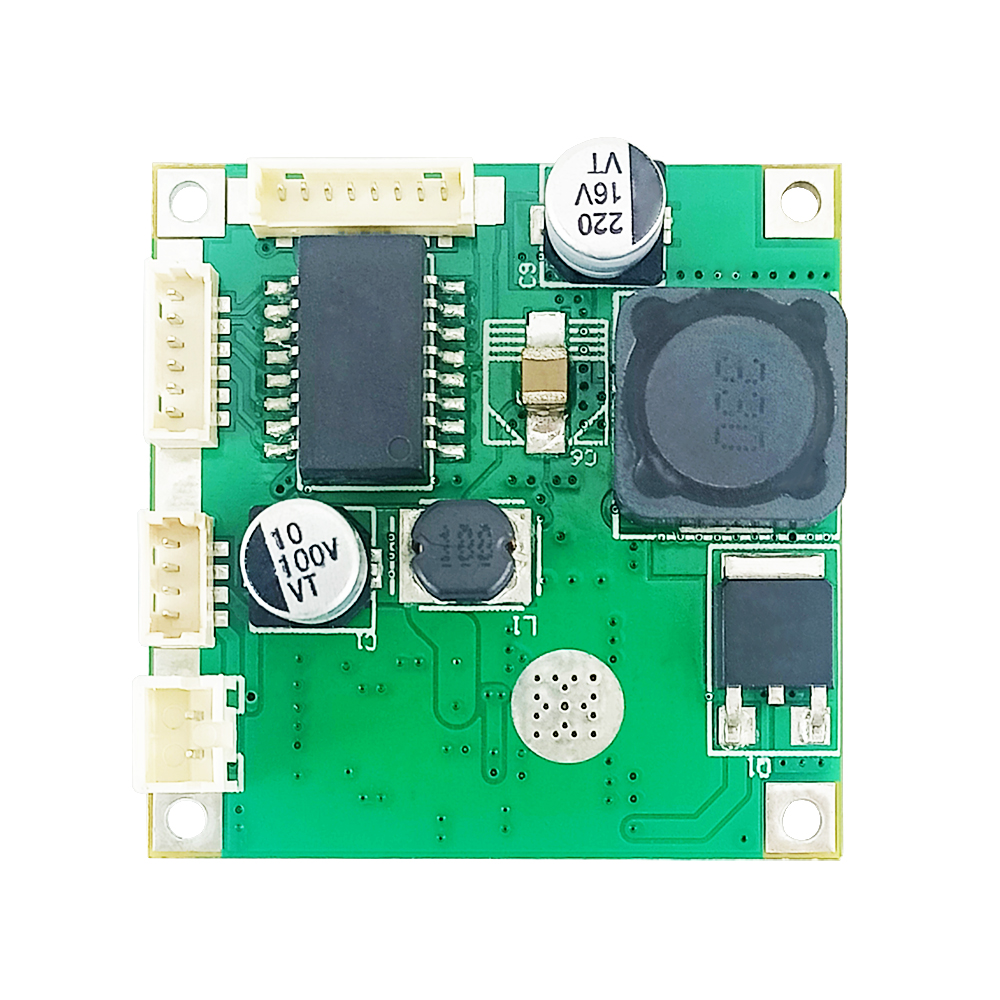

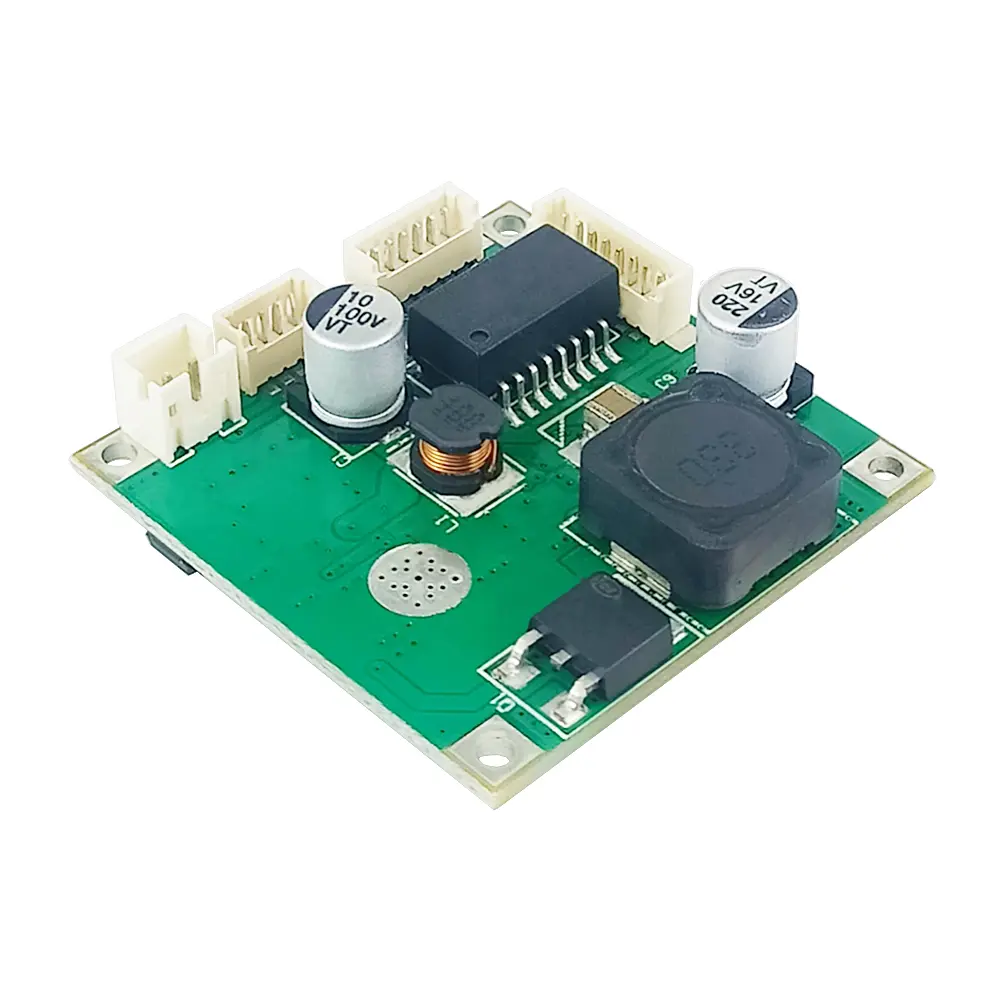

TSD-PD3825 module is set up with two output terminals: 2-Pin PH2.0mm receptacle, output DC 12V2.5A; 8-Pin PH1.25mm receptacle, output network signal and DC 12V 2.5A. Two input terminal blocks: 4-Pin PH1.25mm receptacle, support RJ45+, RJ78-PoE power supply, output DC 12V; 6-Pin PH1.25mm receptacle, support RJ12+, RJ36- power supply.

TSD-PD3825 adopts IEEE802.3af/at PoE standard protocol, and EMC parameters are in line with IEC 61000-4-2/3/4/5/6 standard. The products have obtained CE, FCC, RoHS and other certifications, and are sold to hundreds of countries around the world.

The maximum output power of TSD-PD3825 module is 30W, which has the functions of overheating protection, overvoltage protection, overcurrent protection, short-circuit protection and so on. Transmission rate: 10/100Mbps adaptive. Support wide voltage DC38-56V input, default output voltage DC 12V, can be customized 9V, 15V, 24V output voltage.

● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 2.5A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧90%
● Vertical interface, easy installation

● 100Mbps high power network filter, can carry high power equipment

● High frequency low resistance electrolytic capacitor, reduce circuit high frequency wastage and heat

● Patch solid capacitor, long life and high safety, improve module power supply stability

● International brand original electronic components, high precision and high performance

● High power transistor, high conduction and low impedance

● Environmental protection high temperature resistant PCB material, environmental protection lead-free process

● High temperature resistant PCB environmental protection material, lead-free environmental protection process

● Pure copper pin connector to ensure conduction performance

● High flame retardant socket, reduce safety risks

● Equipped with 80mm connecting line, convenient for customers

Product parameter table
Product Name	100Mbps 4KV surge protection 30W PoE PD module
Product Model	TSD-PD3825
PoE Standard	IEEE802.3af/at
Input Voltage	PoE: DC 38-56V
Output	DC 12V MAX 2.5A
Conversion Efficiency	≧90%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Non-isolated type
Data Rate	10/100Mbps Auto-Negotiation
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short - circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	/
Interface	PoE Input Port (6-Pin PH1.25mm terminal block): RJ12+ RJ36- PoE Input Port (4-Pin PH1.25mm terminal block): RJ45+ RJ78- Output Port (8-Pin PH1.25mm terminal block): Data + DC OUT Output Port (2-Pin PH2.0mm terminal block): DC 12V OUT
Function	/
Material	FR-4
Color	glossy green solder mask
Accessories	80mm connecting line
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 12 g
Dimension	383812 mm
Package	Blister packaging tray

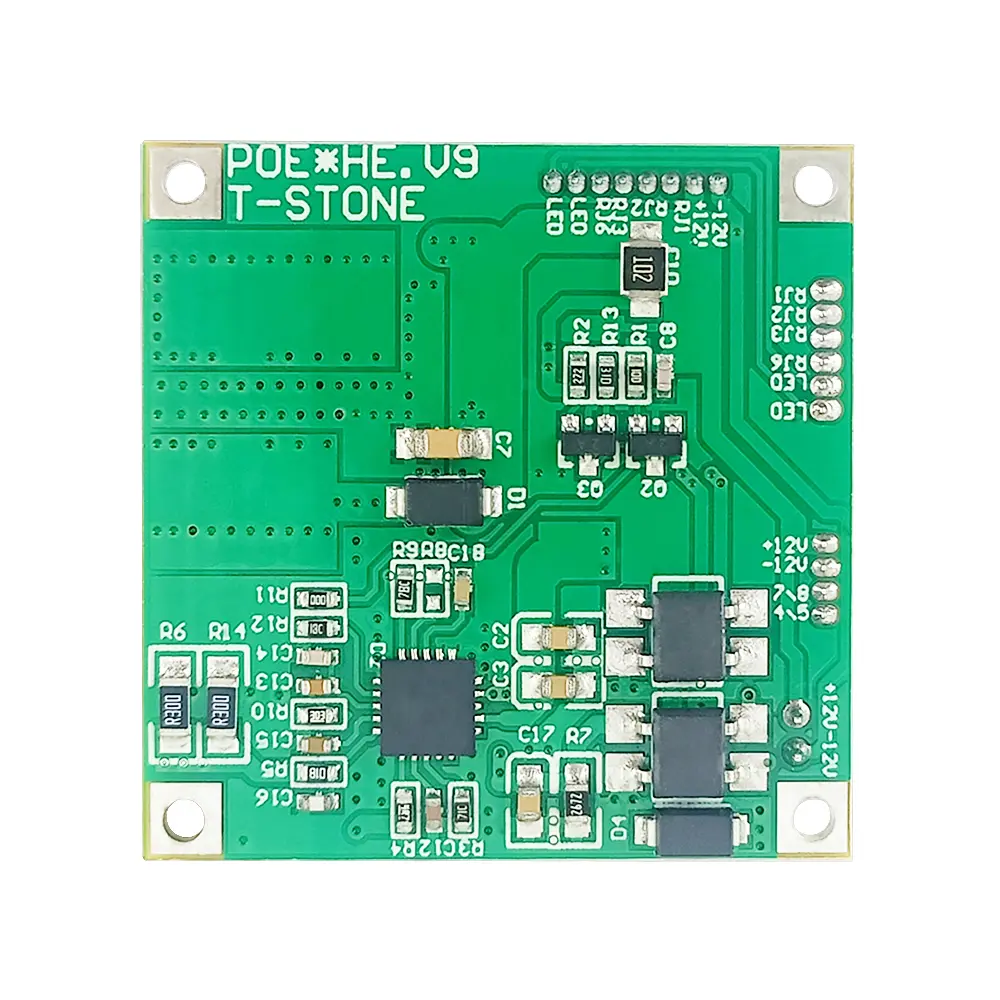

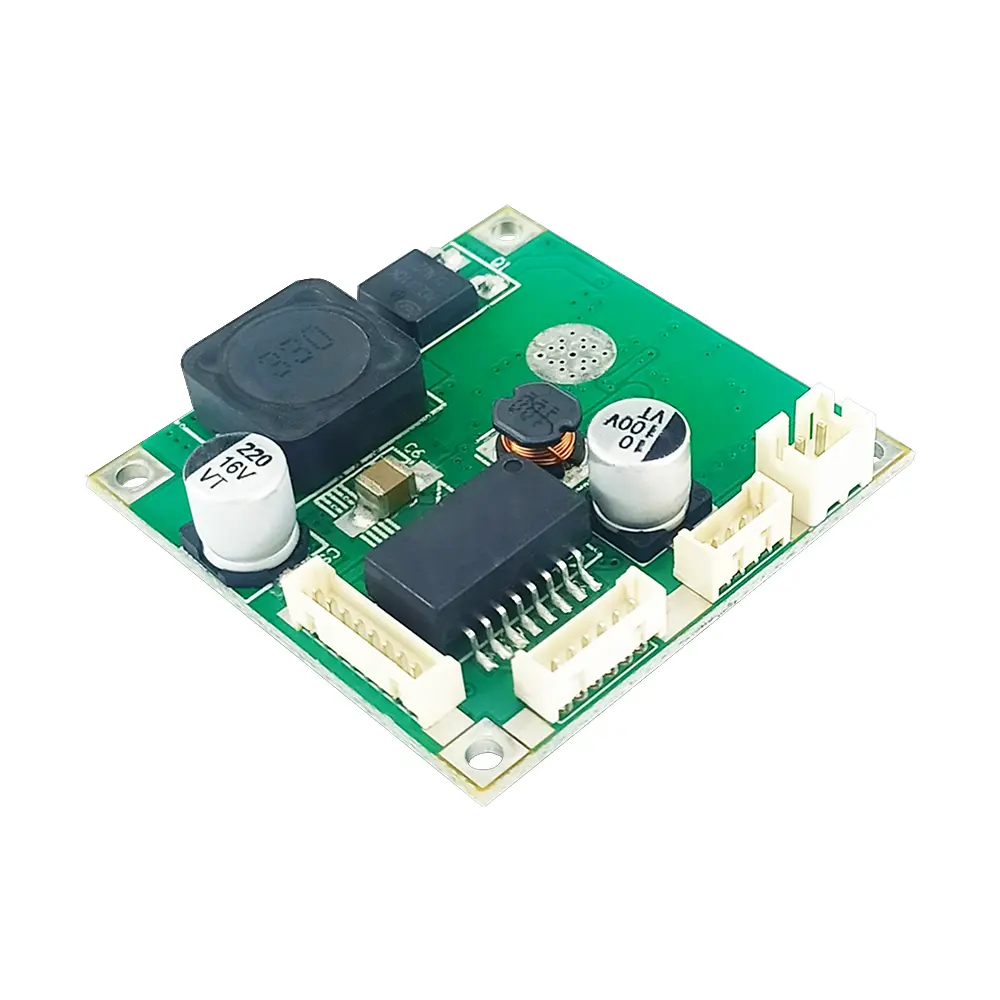

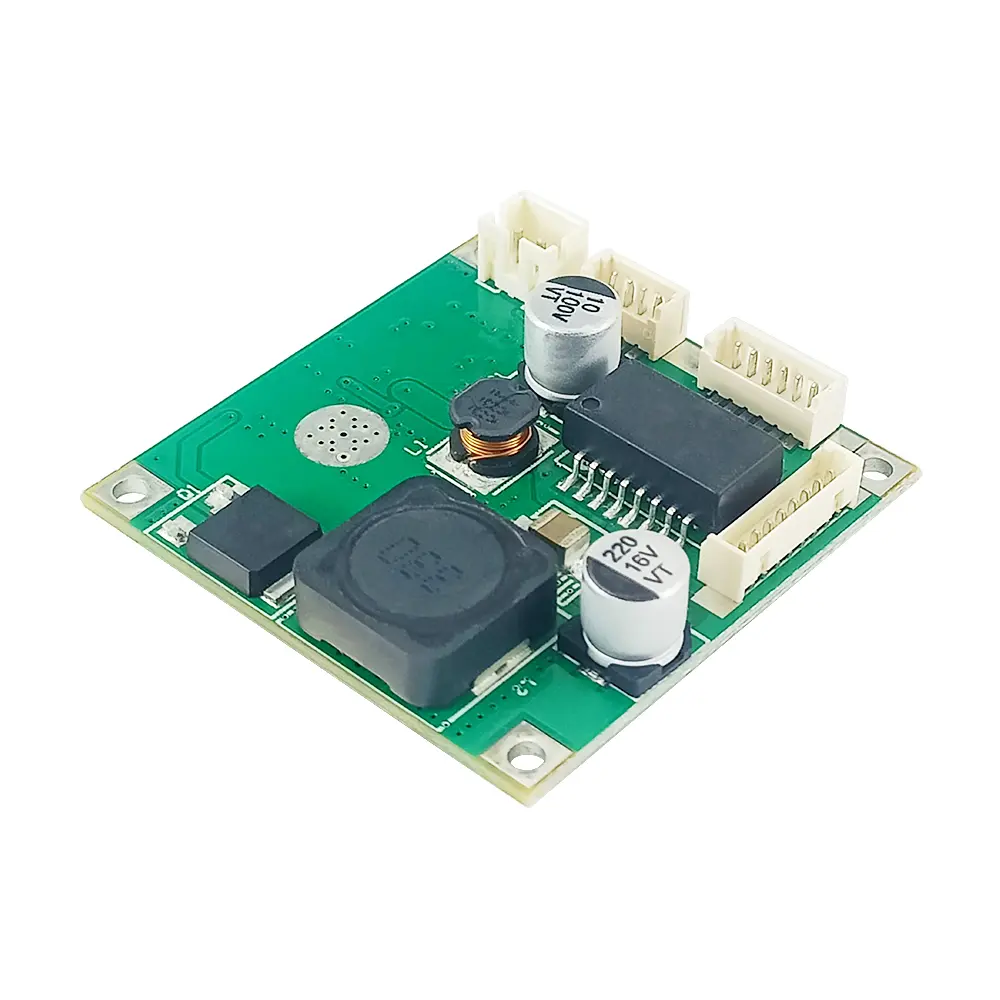

Size structure: 38*38*12mm, hole center distance: 34*34mm, screw hole diameter: Φ=2.0mm*4. Overall layout: square structure. PCB thickness: 1.6mm. Maximum thickness: 12mm. Solder mask: bright green oil. Module design: two-layer board double-sided design, improve signal stability, large components concentrated in one side, easy to install.

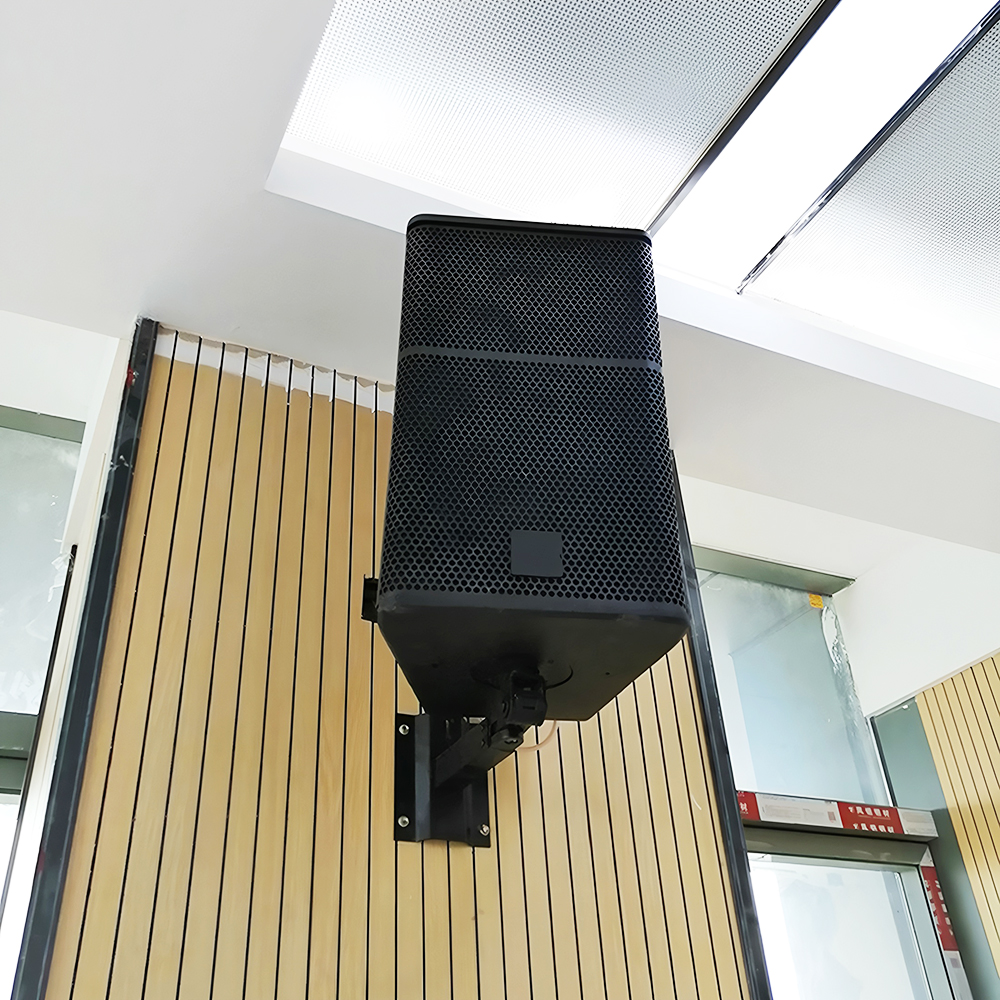

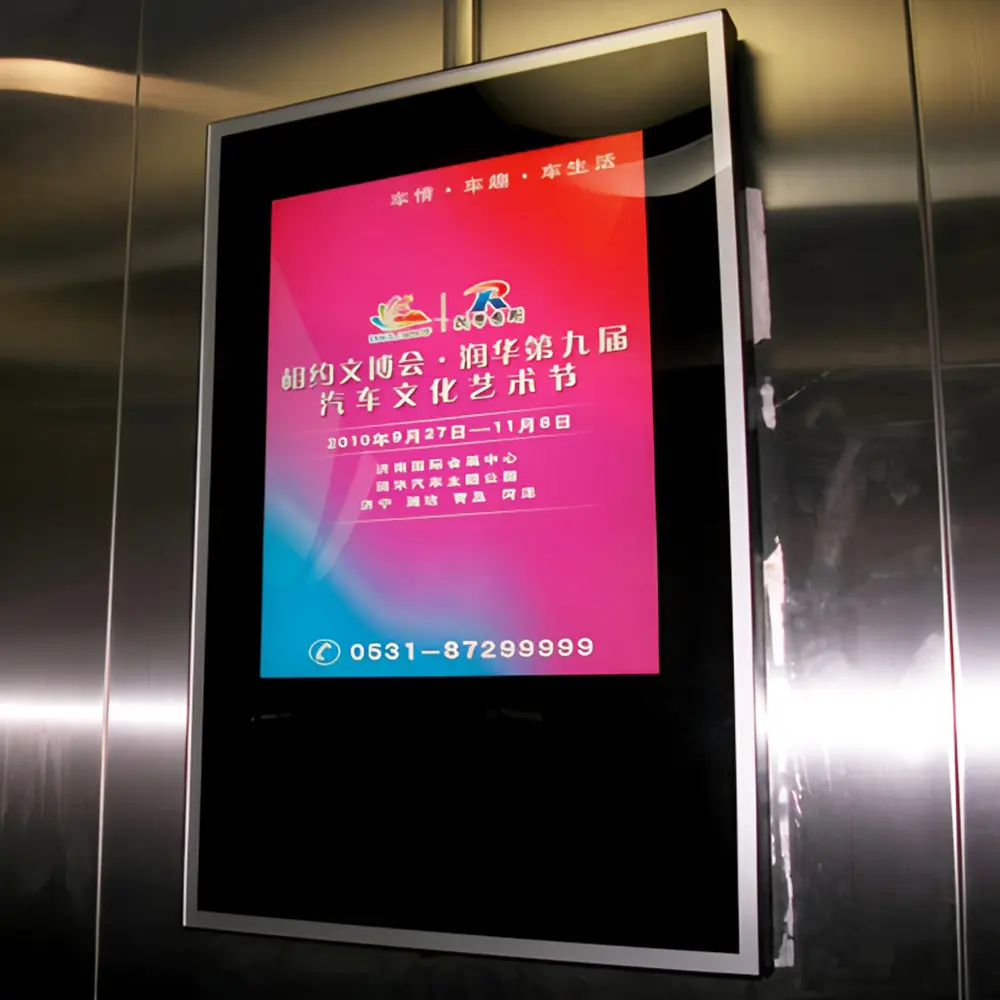

The TSD-PD3825 is a high-power standard PoE module with a maximum output power of 30W. It features stable operation and excellent performance, and is mainly applied in devices such as LCD displays, audio broadcasting systems, commercial display screens, and advertising screens. In the field of PoE equipment applications, the TSD-PD3825 module has gained long-term trust and full recognition from equipment manufacturers and end users.

TSD-PD3825 is a non-isolated module. When in use, users should note that the module and the load end must not share a common ground. If the user's equipment has a metal casing, during installation, it is necessary to ensure that the module and the equipment are not connected to the same metal pole; otherwise, it will affect the normal operation of the equipment.

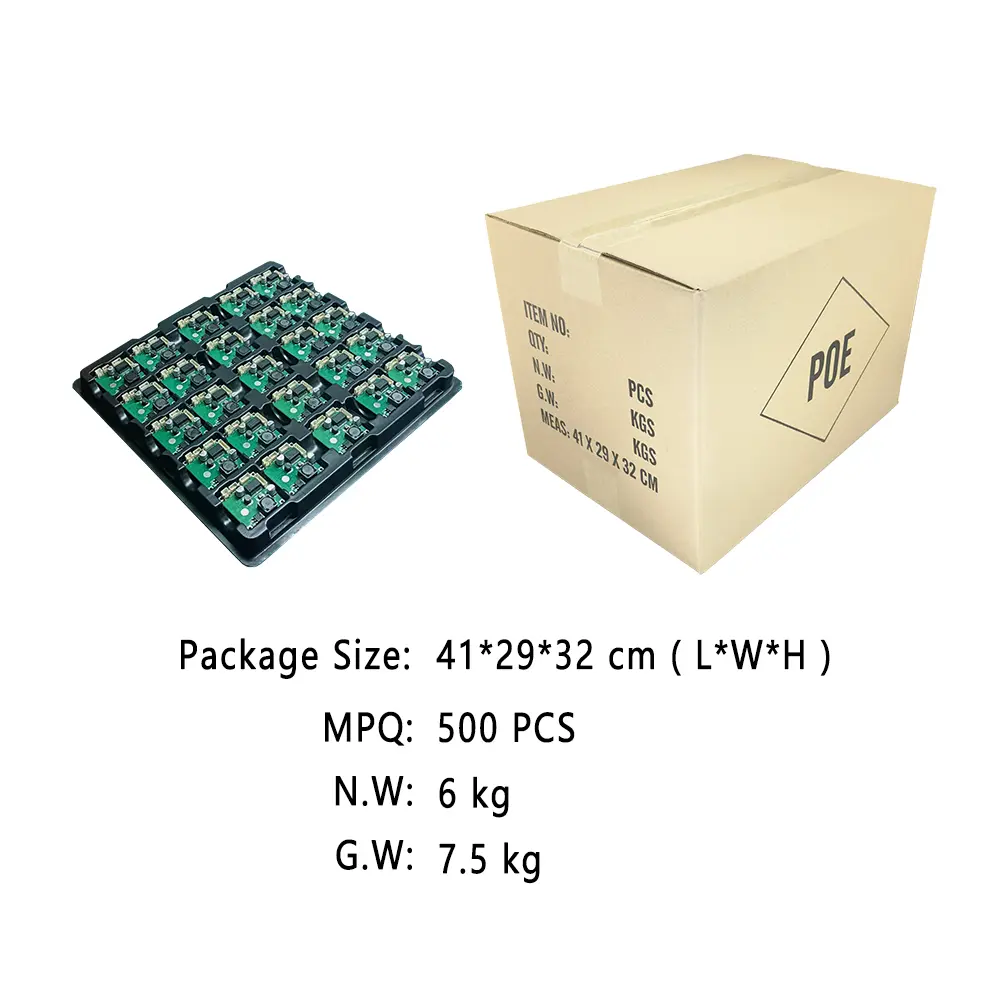

Package list
Items	Quantity
PoE PD Module	500
Operation Manual	/
