1 Port Passive PoE Midspan

Model: TSD-MP101/MP101G

Input: DC 12-56V and data
Output: Passive PoE 12-56V
Conversion Efficiency ≧85%
Transmission rate: 100Mbps/Gigabit
Supply Pins: RJ45+ RJ78-
Interface: RJ45 port/DC socket
Size: 76*28*21.4 mm (L*W*H)
Weight: N.W=22 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-MP101 Midspan is a passive PoE power supply device that takes network data signals and 12V-56V DC power as input, and outputs a single-channel PoE signal with a maximum output power of 30W. The MP101 product includes two models: TSD-MP101: transmission rate: 10/100M; TSD-MP101G: transmission rate: 10/100/1000M.

The TSD-MP101 Midspan can provide PoE power to devices such as wireless APs, IP phones, and PoE speakers. By replacing traditional wiring methods with the TSD-MP101, it effectively reduces cabling costs and extends network coverage.

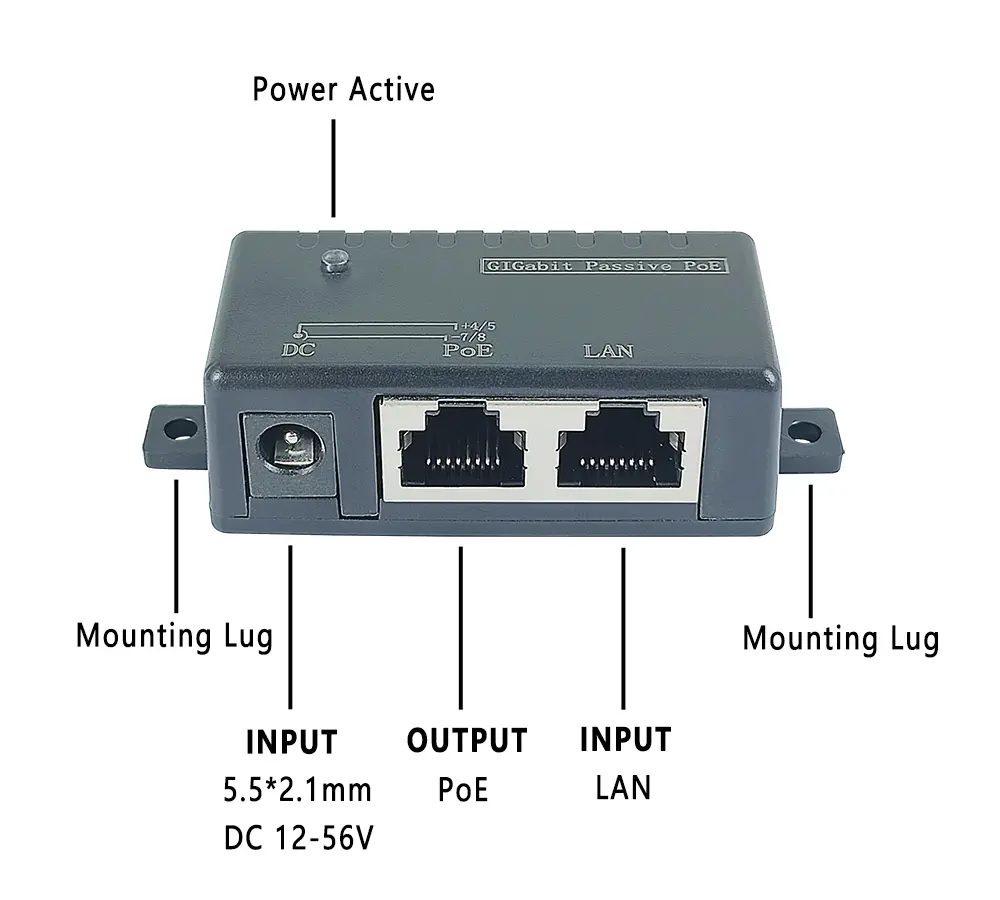

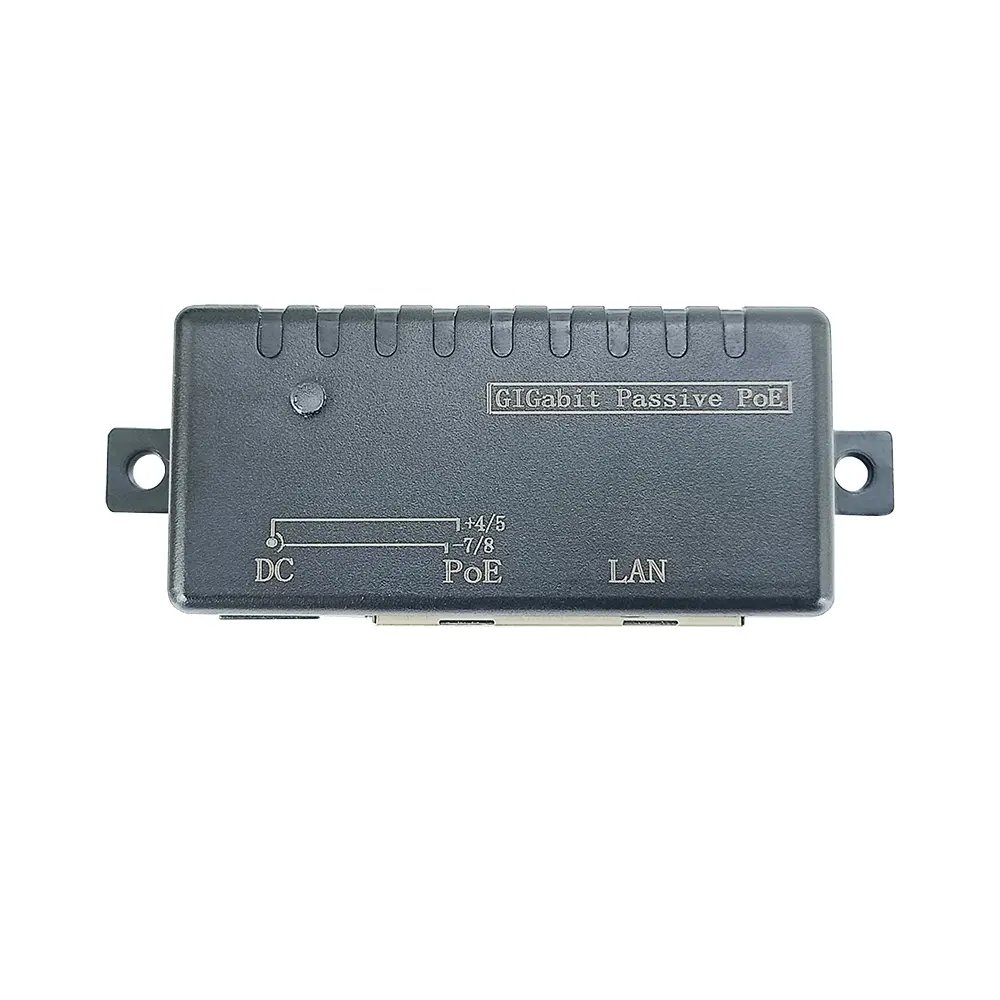

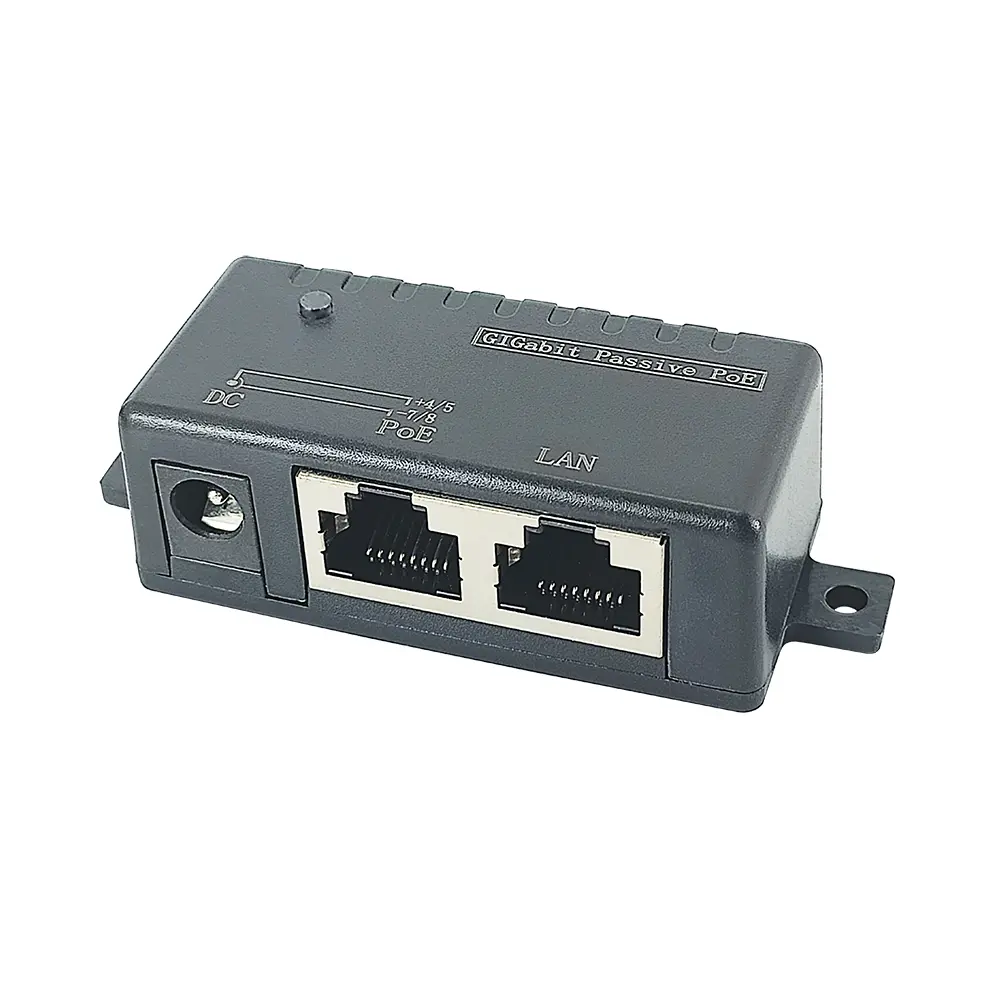

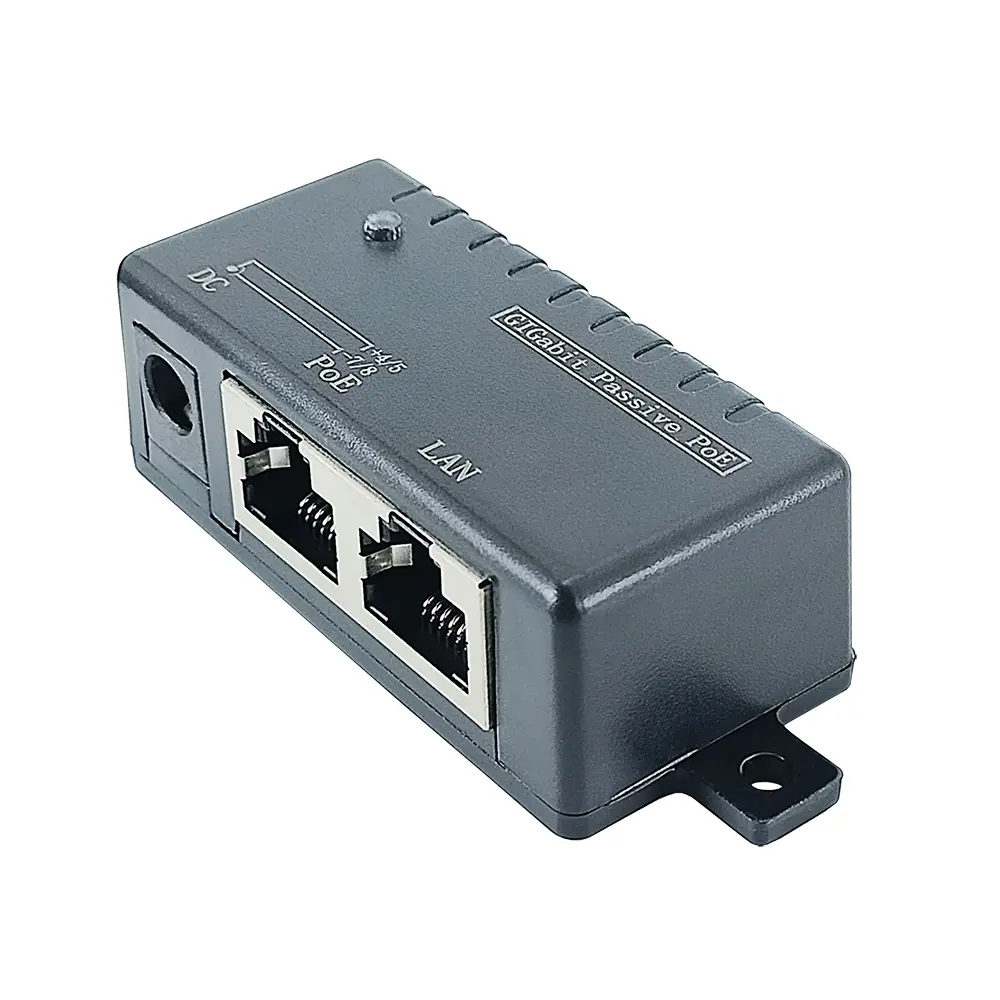

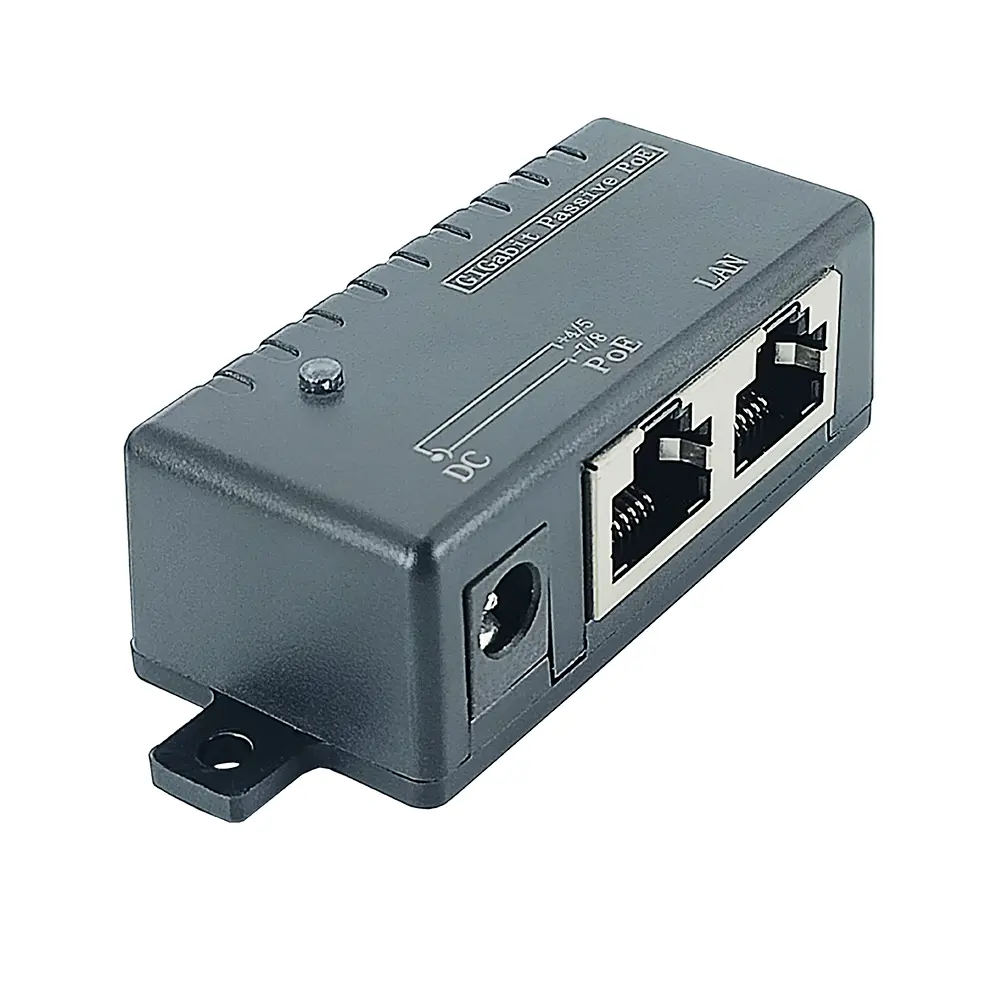

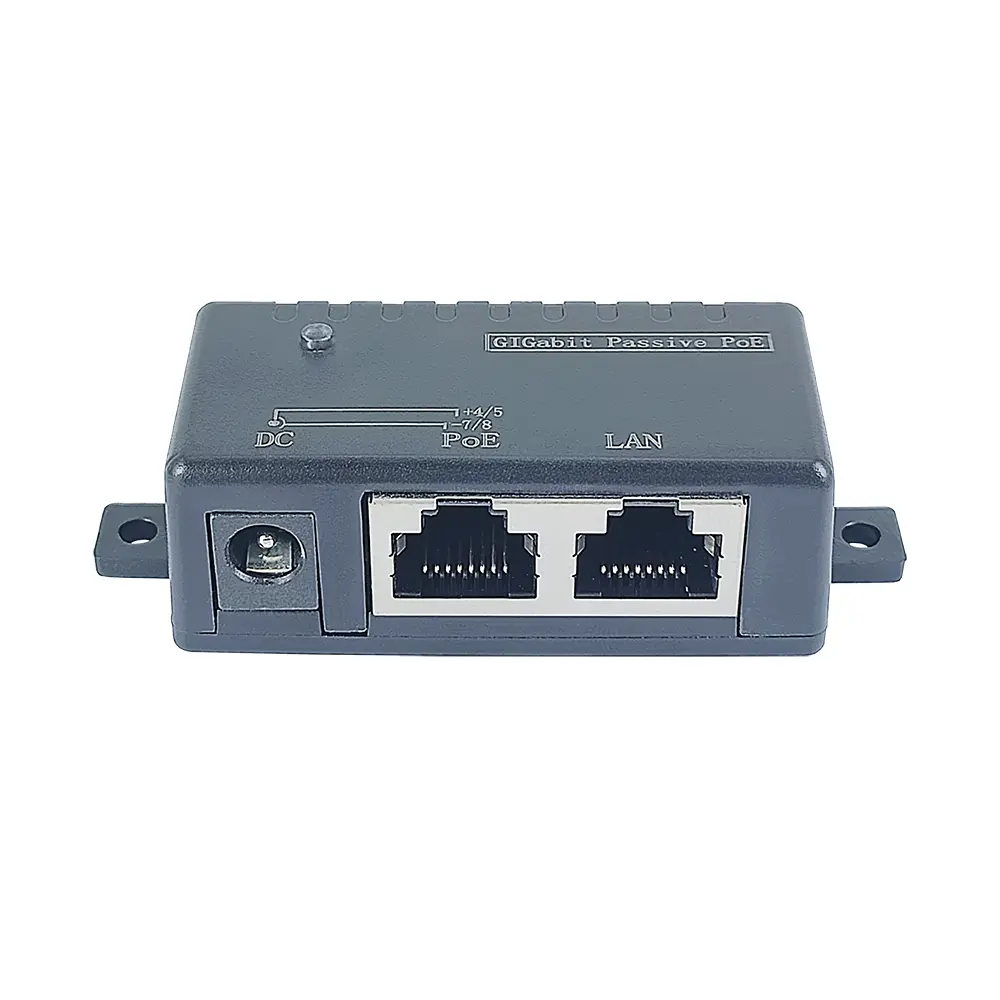

The interface configuration of TSD-MP101:

RJ45 Port 1 (LAN): Input for data signals;

5.5×2.1mm DC Jack: Input for 12V–56V DC power;

RJ45 Port 2 (PoE): Outputs 12V–56V PoE signal.

The TSD-MP101 has obtained CE, FCC, RoHS and other certifications. Its EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standards. The TSD -MP101 does not support IEEE 802.3af/at PoE standards (voltage input/output is flexible). It has hanging ears on both sides to support multiple installation methods.

The TSD-MP101 takes one data signal and one DC power input, delivering a single-channel 12–56V PoE output. Max Output Power per Port: 30W. power supply mode is power supply via the RJ45+ RJ78- pins. The transmission rate is 10/100M auto-negotiation. The internal circuit of the product has functions such as overheat protection, overcurrent protection, overvoltage protection, and short-circuit protection.

● Input: DC 12-56V
● Output: Passive PoE 12-56V
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Power supply pins: RJ45+ RJ78-
● Transmission Rate: 10/100 Mbps Auto-Negotiation

● Maximum output power : 30W

● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● DC Input: 5.5×2.1mm DC female jack

● Original electronic components from international brands, high precision and high performance

● High-power high-conduction low-impedance transistor, excellent reliability and temperature tolerance

● High temperature resistant PCB environmental protection material
● Adopt pure copper pin connector to avoid bad contact

● Enclosure: Matte black ABS eco-friendly plastic shell

Product parameter table
Product Name	Single-port passive PoE midspan
Product Model	TSD-MP101	TSD-MP101G
PoE Standard	/
Input Voltage	DC 12-56V
Output	passive PoE 12-56V
Conversion Efficiency	≧85%
PoE Pin	PoE: RJ45+ RJ78-
Conversion Mode	/
Data Rate	10/100Mbps adaptive	10/100/1000Mbps adaptive
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short-circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	Indicator Light: Displays power status (Operational: Green)
Interface	Input Port (RJ45 Jack): Data IN Input Port (DC female socket): DC 12-56V IN Output Port (RJ45 Jack): PoE OUT
Material	ABS Eco-Friendly Plastic Housing
Color	Matte black
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 22 g
Dimension	762821.4 mm (L * W * H)
Package	Folding Carton

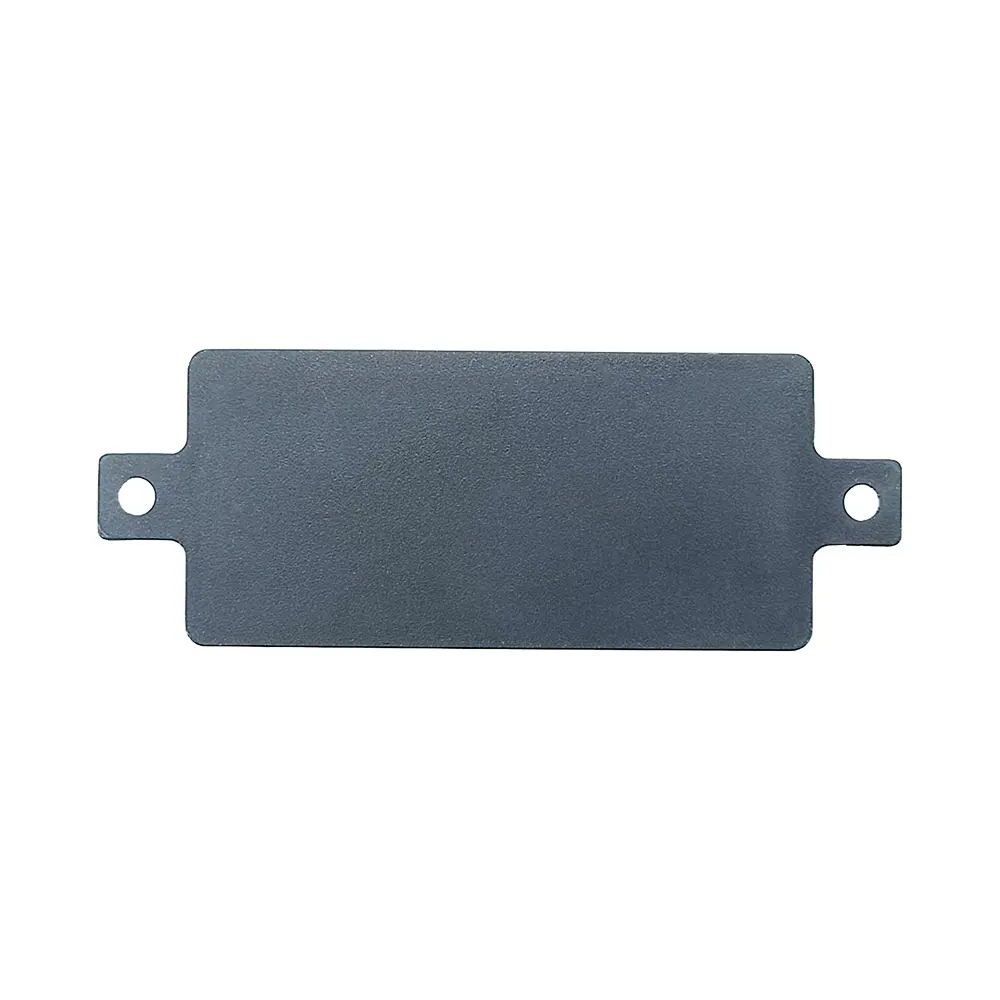

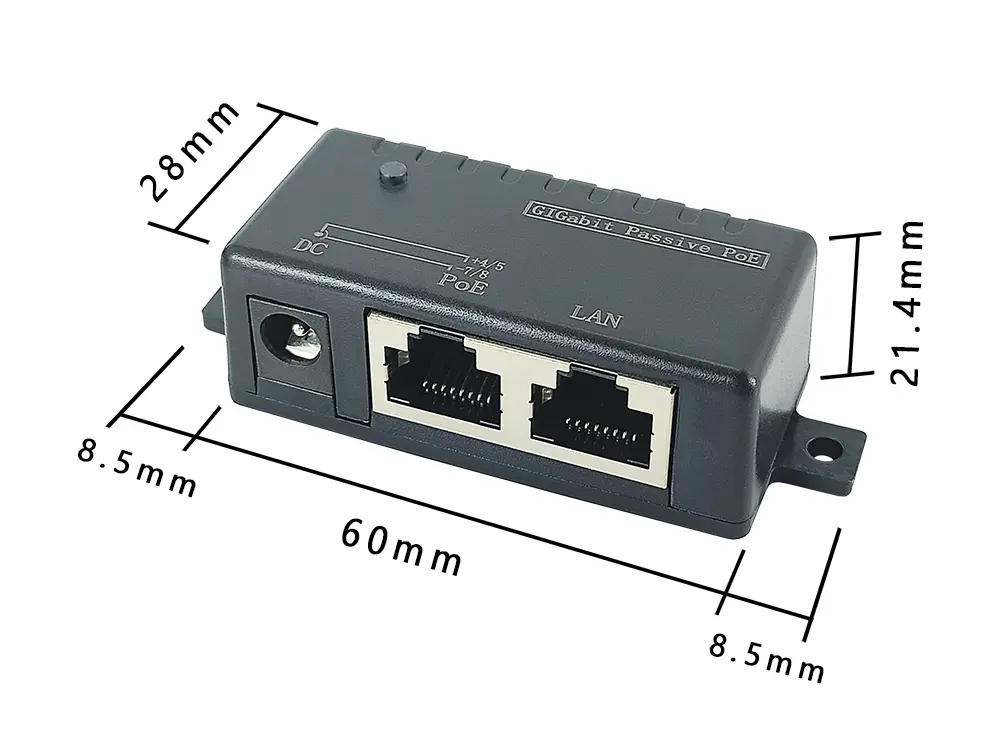

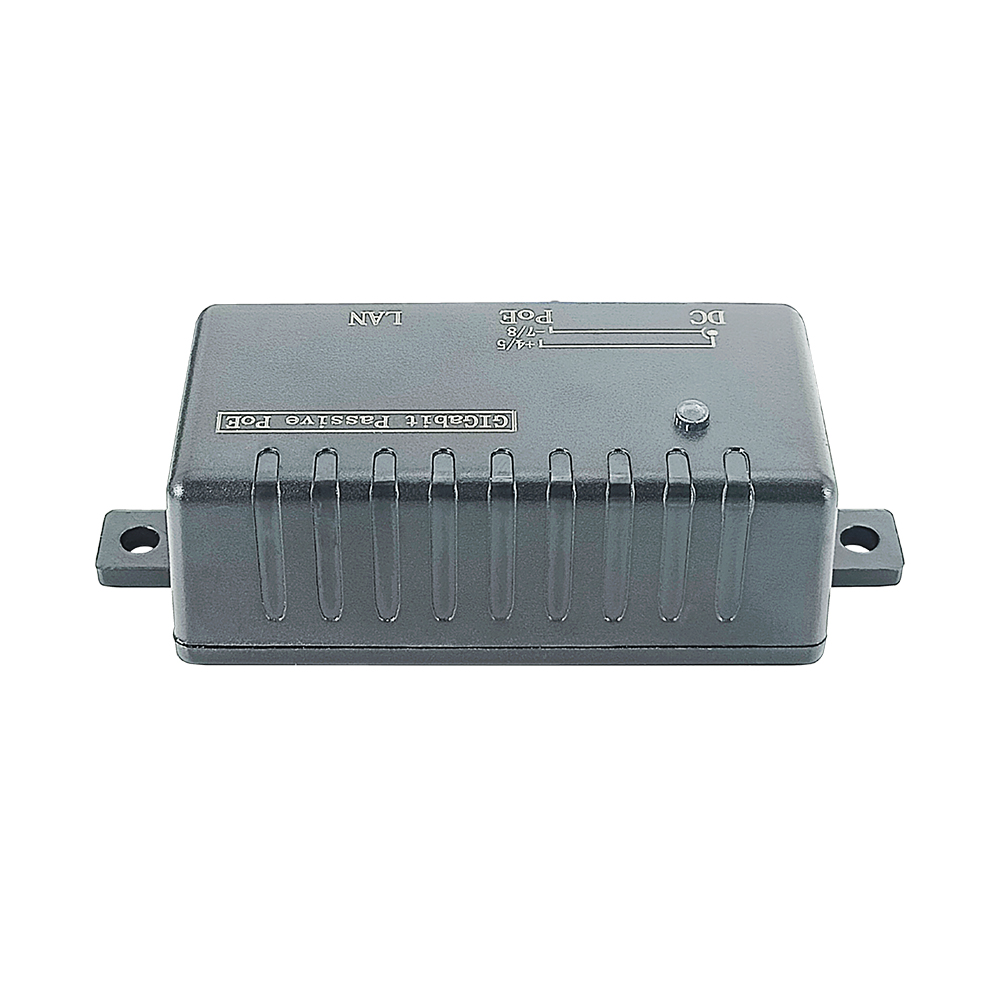

The overall dimensions are 76 × 28 × 21.4 mm. The dimensions of the mounting lug are 8.5 × 8.5 × 2.6 mm. Indicator light: Displays power status. DC socket specification: 5.5×2.1mm. Overall material: ABS eco-friendly plastic shell. Color: Matte black.

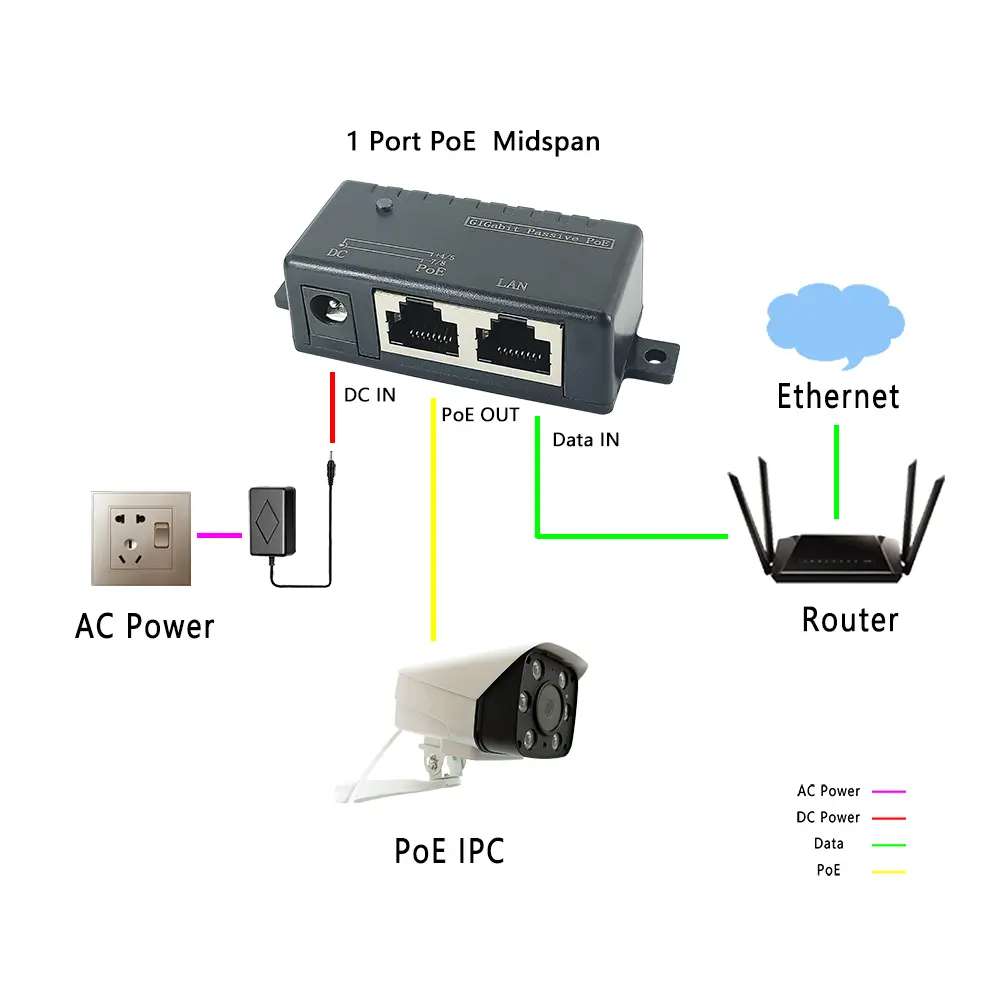

The TSD-MP101 Midspan delivers a maximum output power of 30W per port, featuring a compact and lightweight design for easy installation. Its flexibility makes it ideal for various PoE power supply scenarios, effectively simplifying cabling and reducing costs for users. Widely adopted in industries such as education, manufacturing, and security surveillance, this product has earned consistent praise for its outstanding performance. MP101-Topology

Package list
Items	Quantity
TSD-MP101	1 PCS
Operation Manual	1
Accessories	/

Product Tags: PoE Power Supply; Passive PoE Injector; 48V PoE; Gigabit; Desktop PoE; 25W PoE; Ieee802.3af/at; Power Supply Pin; Surge Protection; Environmental ABS Plastic.
